Name: DTB10/10
SKU: DTB10/10
Availability: InStock

DTB10/10

€316,00 (€382,36 incl. VAT)

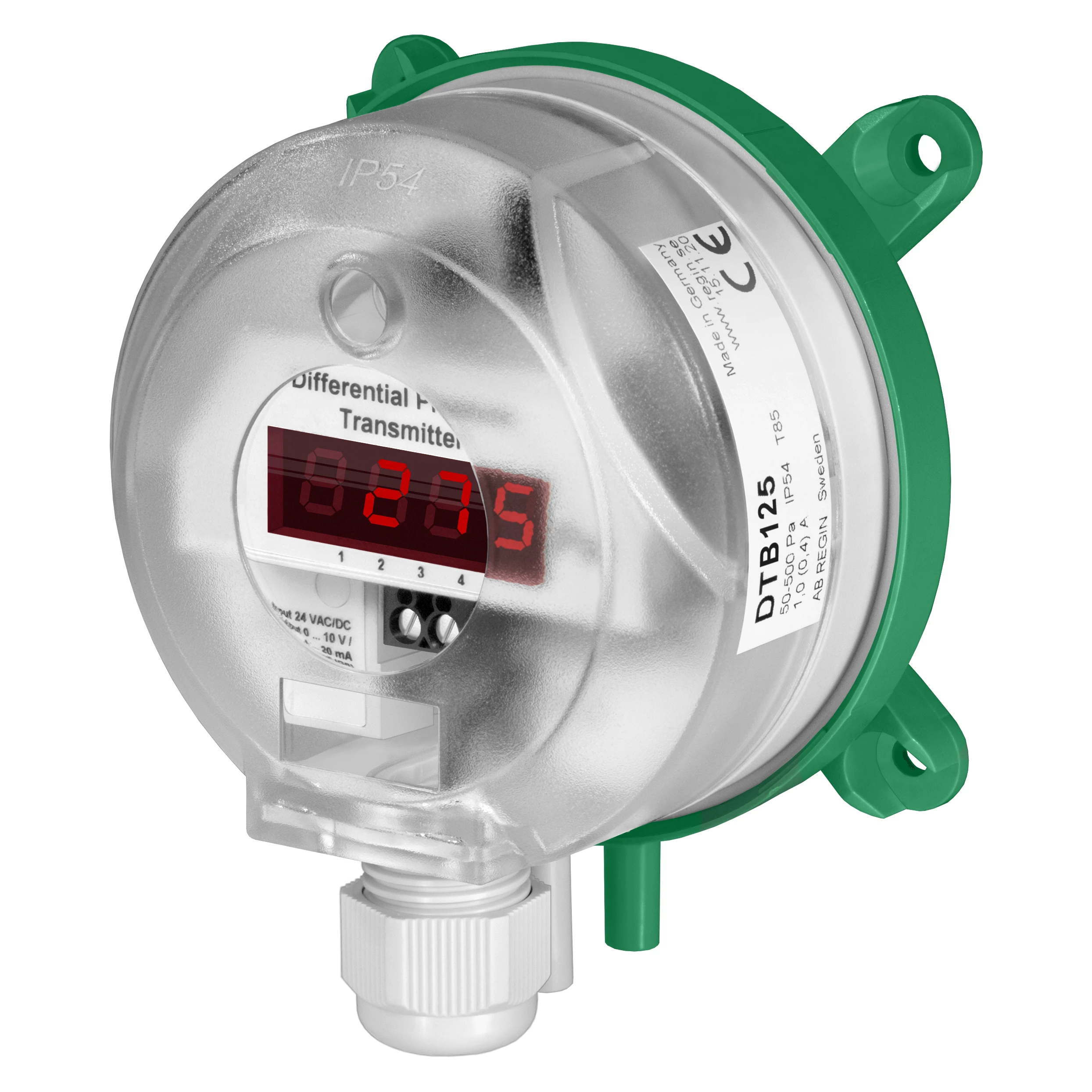

Differential pressure transmitter with display and -100...+100 Pa measuring range

96.42% Has a good to very good experience with SENSORS.NL

Personalized customer service

Spacious assortment with a wide range of top brands

Need an additional discount for quantities? Please contact us

Specifications

Specifications for DTB10/10
Power Supply	24VAC/DC (18...30 V AC 50Hz / 18...30 V DC), 6.0 VA
Dimensions, external (WxHxD)	85x85x58 mm
Display	Yes
Display type	LED, 4 digits
Analogue output load impedance 0...10v	≥ 1 kΩ
Analogue output load impedance 4...20mA	20...500 Ω
Pressure, range sensor	-100...100 Pa
Accuracy, pressure sensor 1	±1 % full scale, min. ±1 Pa %
Max. allowed diff. Pressure sensor 1	60 kPa

Specifications for Differential pressure transmitter for air and non-corrosive gases with display
Protection class	IP54
Ambient humidity (non-condensing)	0...95 % RH
Storage temperature	-10...50 °C
Mounting	Wall
Weight, incl. packaging	0.18 kg
Pressure, range sensor	-50...50 Pa
Cable gland	M16x1.5
Terminal type	Screw Terminal
Terminal wire size	1.5 mm²
Material, housing	ABS
