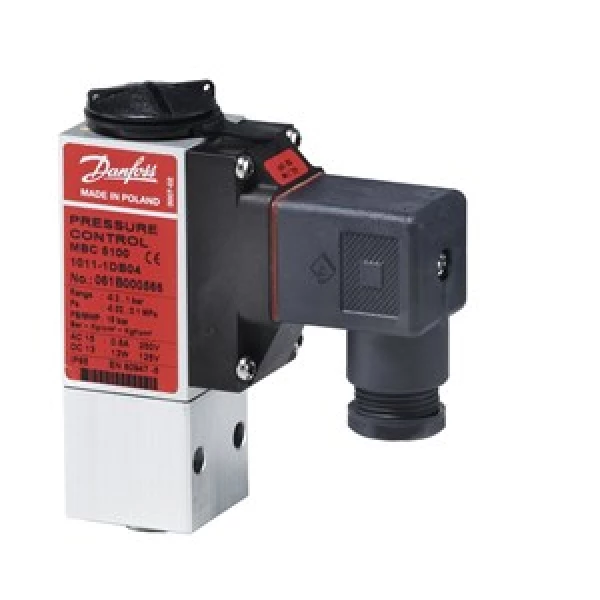

Danfoss pressure controls MBC
Price range: €209,72 through €257,00
Staff discount:
| Quantity | Price |
|---|---|
| 1 - 4 | Price range: €209,72 through €257,00 |
| 5 - 9 | Price range: €199,23 through €244,15 |
| 10 - 24 | Price range: €188,75 through €231,30 |
- Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
- Persoonlijke klantenservice en advies
- Extra korting bij grote aantallen mogelijk: Neem contact op
Beschrijving
- 061B000066Type: MBC 5100-1411-1CB04
- 061B000166Type: MBC 5100-3421-1CB04
- 061B000366Type: MBC 5100-3421-1DB04
- 061B000466Type: MBC 5100-1211-1DB04
- 061B000566Type: MBC 5100-1011-1DB04
- 061B000666Type: MBC 5100-1211-3DB04
- 061B000766Type: MBC 5100-2211-1DB04
- 061B000966Type: MBC 5100-1011-1CB04
- 061B001066Type: MBC 5100-1211-1CB04
- 061B002966Type: MBC 5100-2011-1DB04
- 061B006666Type: MBC 5100-1411-2DB04
Extra informatie
| Weight | 1 kg |
|---|---|
| Range | -0.2 ... 10 BAR, 5 ... 30 BAR, -0.2 ... 4 BAR, 0.2 ... 4 BAR, 1 ... 6 BAR, -0.2 ... 1 BAR, 0.5 ... 3 BAR, 16 ... 160 BAR, 25 ... 250 BAR, 40 ... 400 BAR, 5 ... 20 BAR, 10 ... 100 BAR, 1 ... 10 BAR, 5 ... 40 BAR, 5 ... 25 BAR, -0.1 ... 1 BAR |
| Differential | 0.4 ... 0.6 BAR, 0.9 ... 2 BAR, 0.3 ... 0.45 BAR, 0.25 ... 0.3 BAR, 1 ... 2.5 BAR, 4 ... 12 BAR, 15 ... 30 BAR, 20 ... 40 BAR, 20 ... 50 BAR, 2 ... 7 BAR, 0.5 ... 0.8 BAR, 0.3 ... 0.45 BAR, 0.9 ... 2 BAR |
| Process Connection | G 1/4" BSP internal, Flange connection, G 1/4" capped, Flange connection, m10x1 capped |
| Electrical connection | Pg 11 PLUG, Pg 9 PLUG, Pg 13.5 PLUG |
| Set-point setting | 0.2 BAR decreasing, 1.3 BAR decreasing, 120 BAR increasing, 17 BAR decreasing, 2 BAR decreasing, 2.2 BAR decreasing, 2.5 BAR decreasing, 3 BAR decreasing, 4 BAR decreasing, 4.5 BAR decreasing, 6.6 BAR decreasing, None |
