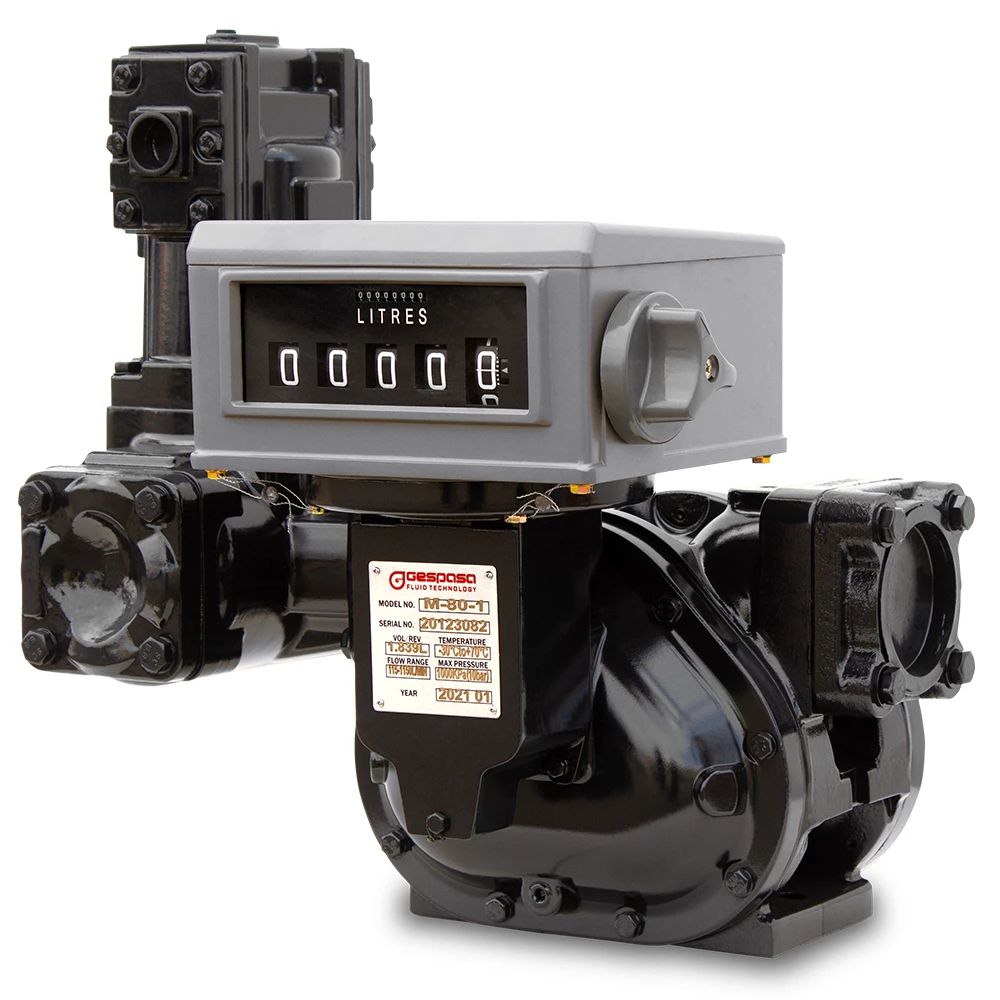

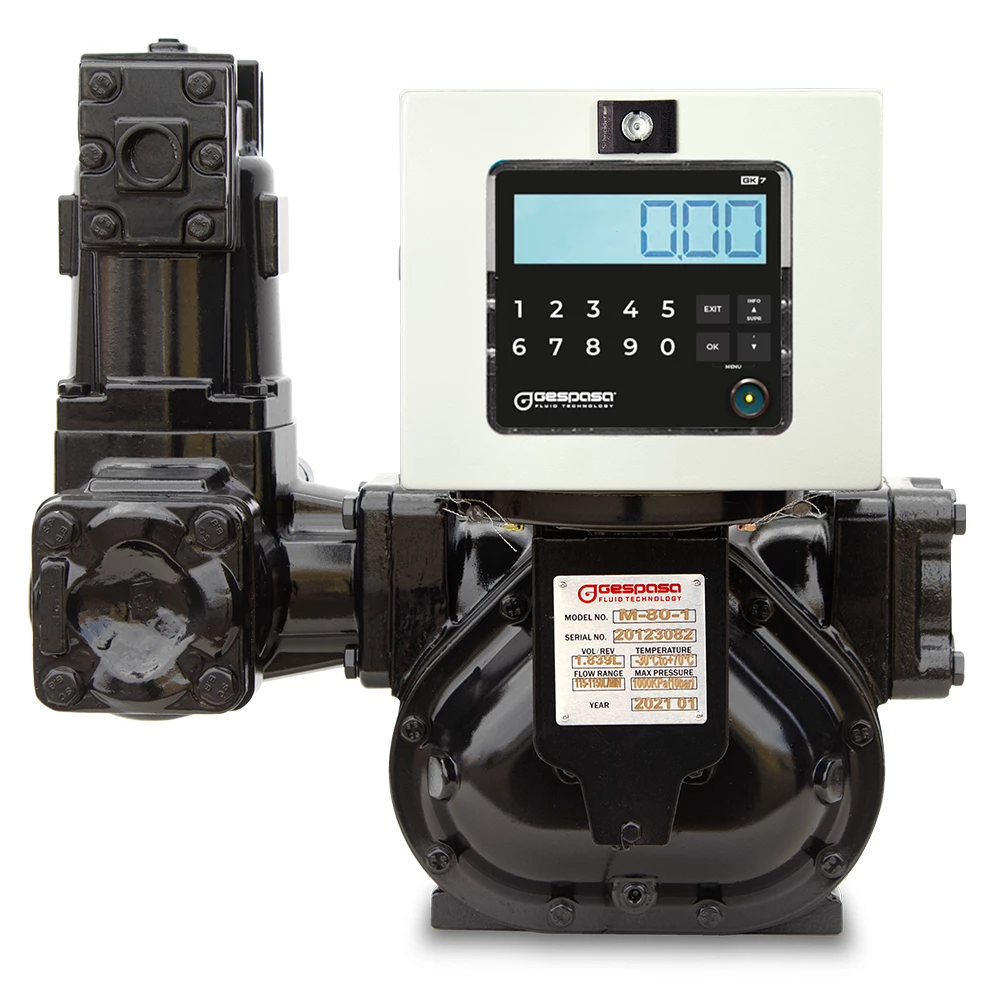

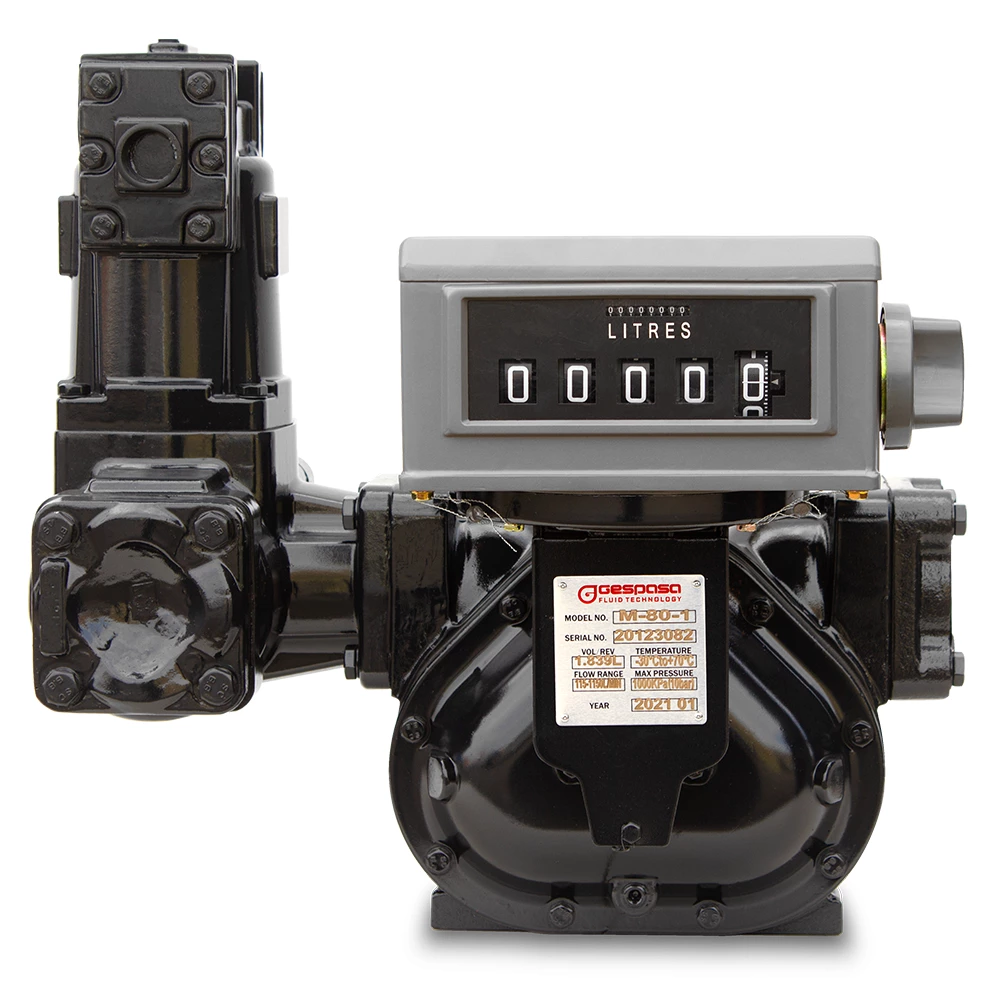

Bulk flow meter | Series M METER - ATEX | 25 to 3,000 l/min - ±0.2 % 1 1/2″ to 6″

• The M-Series meter is a positive displacement meter for liquids.
  It is designed for liquid measurement both in transfer and process control. Its design makes it easy to maintain and suitable for a wide range of applications.
• The M Series rotary flowmeter has a simple and efficient design, consisting of a housing and three rotors that rotate simultaneously (simultaneously) in the measuring chamber.
• The absence of wear, due to no metal-to-metal contact in the chamber, eliminates any deterioration in accuracy and ensures long life.
• The rotors are composed of bearings inserted into two bearing plates, with a distribution gear at the end of each rotor shaft. The timed rotation between each rotor is then transferred to the register through the calibration controller, providing consistent and superior accuracy measurement.

FEATURES:

• An air eliminator is built in.
• The excellent stepless adjustment mechanism allows micro-adjustment of the meter.
• High accuracy and repeatability over the widest current range, superior accuracy at constant current;
• Low maintenance, no metal-to-metal contact in the measuring chamber, long service life;
• Accuracy regardless of pressure variations, temperature variation, viscosity;
• Aluminum housing, Viton seal;
• Standard size in liters / US GAL / IMP GAL (please ask when ordering);
• It contains a screen with a mesh size of 80/170 μm (microns).

TECHNICAL DATA:

• Accuracy: ±0.2%
• Repeatability: ≤ 0.07%
• Temperature range: -30 ºC to +71 ºC
• Max pressure: 10 bar (145 psi)
• ATEX II 2G category
• Protection or own power supply mode: Ex h IIB T5 Gb

*It is possible to configure the meter with custom specifications according to your needs.
