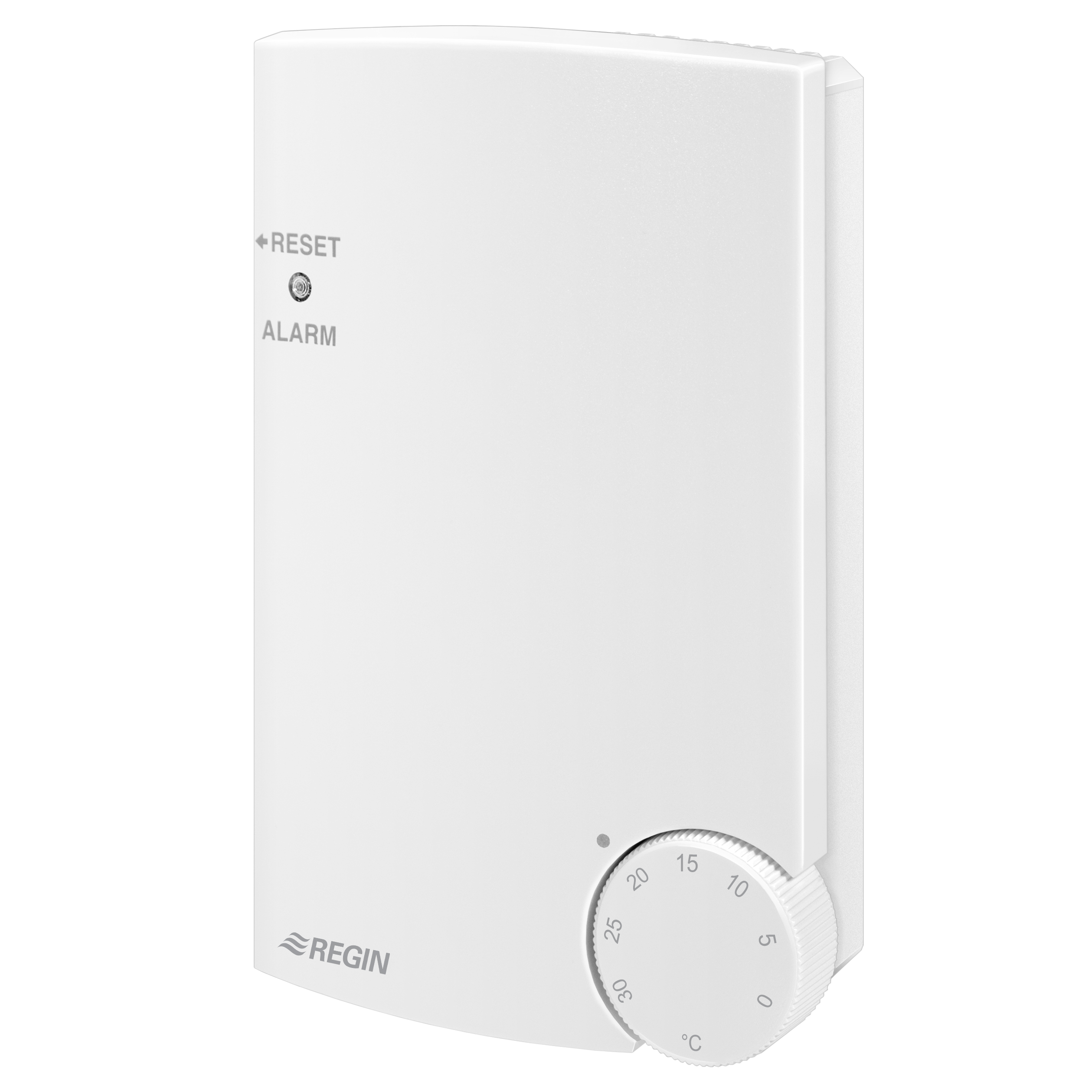

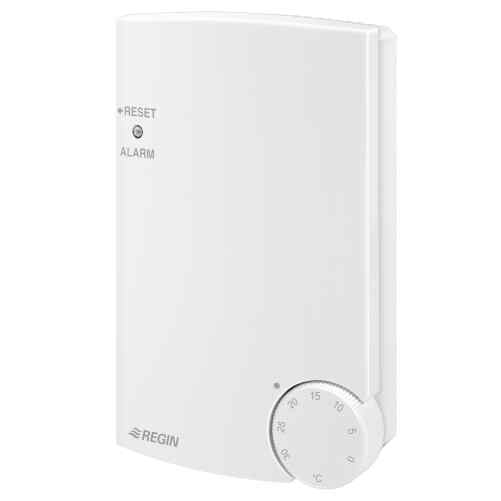

AQUA24TF
€204,00 (€246,84 incl. VAT)
Room controller for HVAC system, with active frost protection
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
Specifications
| Controller Type | Room Control |
|---|---|
| Power Supply | 24V AC |
| Mounting | Wall mount |
| Display | No |
| Power Supply | 24VAC (20...28 V AC 50/60Hz / ), 5.0 VA |
| Dimensions, external (WxHxD) | 93x152x43 mm |
| AI | 4 |
| DI | 1 |
| DO | 4 |
| Color, cover | RAL9003 |
| Protection class | IP20 |
|---|---|
| Ambient humidity (non-condensing) | 0...90 % RH |
| Storage temperature | -40...50 °C |
| Mounting | Wall |
| Analog inputs type (AI) | Regin NTC |
| Digital inputs type (DI). | Fan shutdown signal |
| Digital outputs type (DO) | 3 point 24VAC(max 7VA) |
| Material, housing | Polycarbonate, PC |
