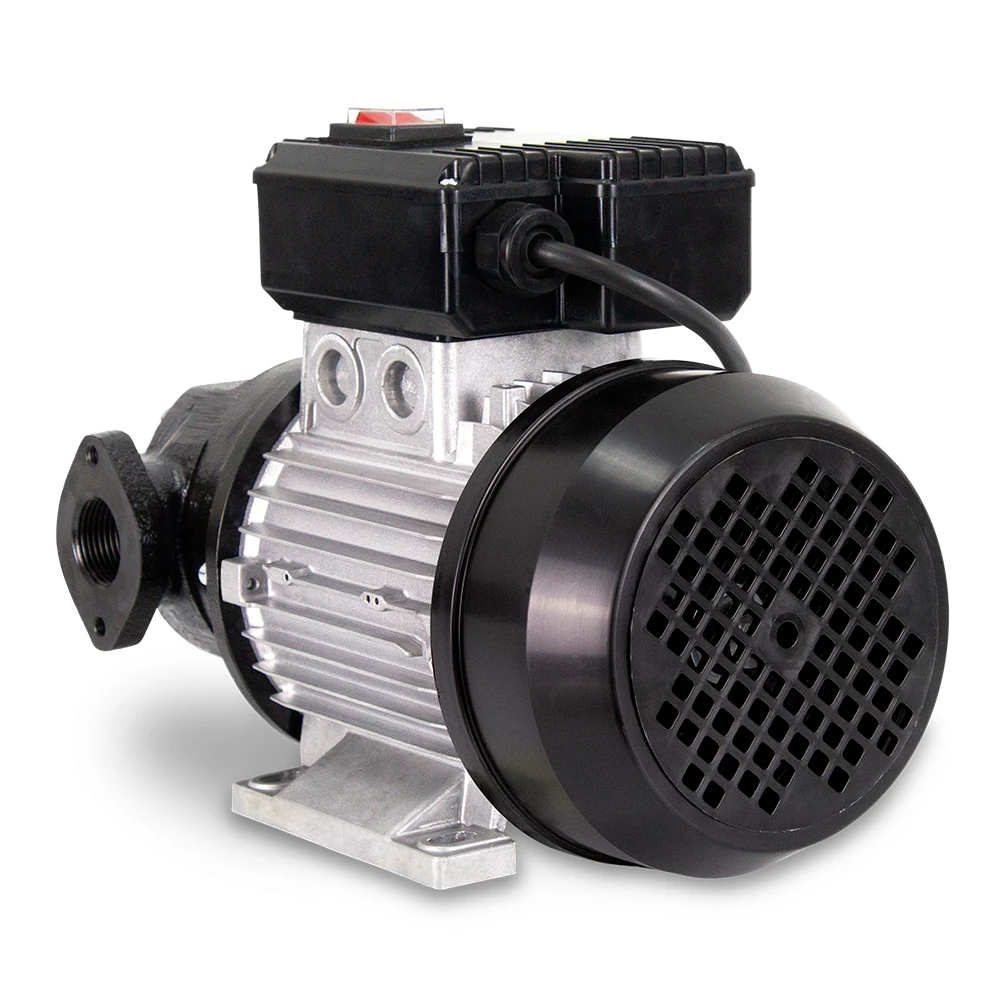

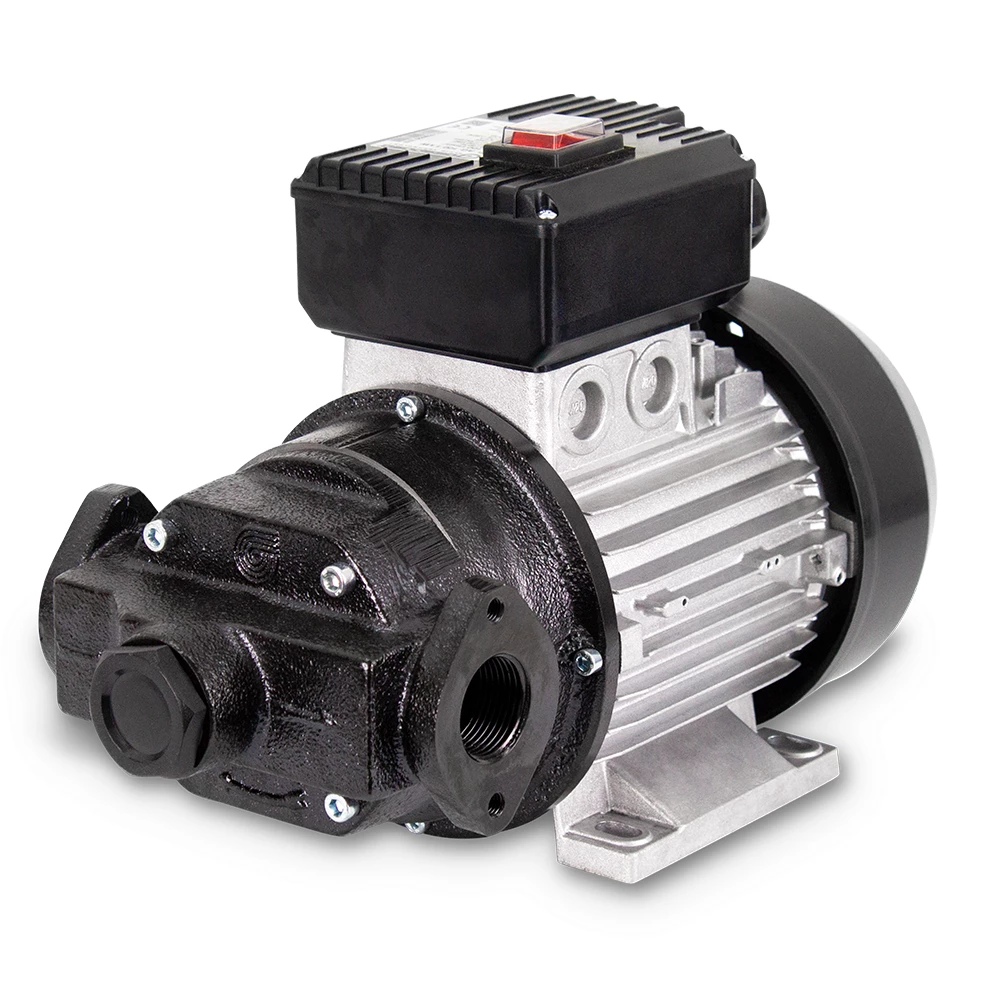

AG-100 230V AC BLADE SELF SUCTION VANE PUMP

AG-100 230V AC BLADE SELF SUCTION VANE PUMP - Image 2

AG-100 230V AC BLADE SELF SUCTION VANE PUMP

€458,00 (€554,18 incl. VAT)

Productinformatie en datasheets →

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

SKU: 00360-CF00000 Categories: Diesel Pumps, Gespasa Tag: Diesel Pumps

Beschrijving

Blade self-suction 1 kW - 100 l/min

Self-suction - self-priming. Eccentric or self-adjusting blades.
With recirculation bypass
Suction: 2.7 m - Delivery: 30 m
Priming pipe suction: 5 m
Free flow: 100 l/min
Consumption: 4-6 A
Motor: 1 kW 230 VAC 50/60 Hz single-phase self-ventilated
1,500 rpm
With thermal protector
S1 Continuous duty
IP-55 Protection
Connection through F1″ (BSP) threads and flanges
ON/OFF luminous switch with IP-55 protection
3 m electric cable with homologated plug
Anti-rust treatment

Size and weight (approx.):

Dim.: 365x165x245 mm (length x width x height)
Weight: 15.15 kg

Rate this product

Extra informatie

Product type:	Diesel Transfer Pump
Vendor:	Gespasa Shop - International Fuel Equipment and Services
Product sku:	00360-CF00000
Weight:	15.15 kg

Downloads
