500LPM - HIGH FLOW PUMPS - IP-55
€14.466,45 (€17.504,40 incl. VAT)
On backorder, please contact us for the expected delivery date.
Product information and datasheets →Available on backorder
Why buy from Sensors.nl:- Excellent rating: 96.42% had a good to very good experience
- Personal customer service and advice
- Extra discount possible for large quantities: Contact us
Description
- Bedplate vane pumps of high flow, self-suction, positive displacement, constant flow, inaudible and heavy-duty
- The transfer is quick, uniform and inaudible.
- The pump has built-in bypass valve.
- It is specially intended for the transfer of high volumes, S-1 service, continuous for fuel tank charging and discharging, storage of fuel, hydrocarbon, diesel and another non-corrosive fluid and without solid particles in suspension.

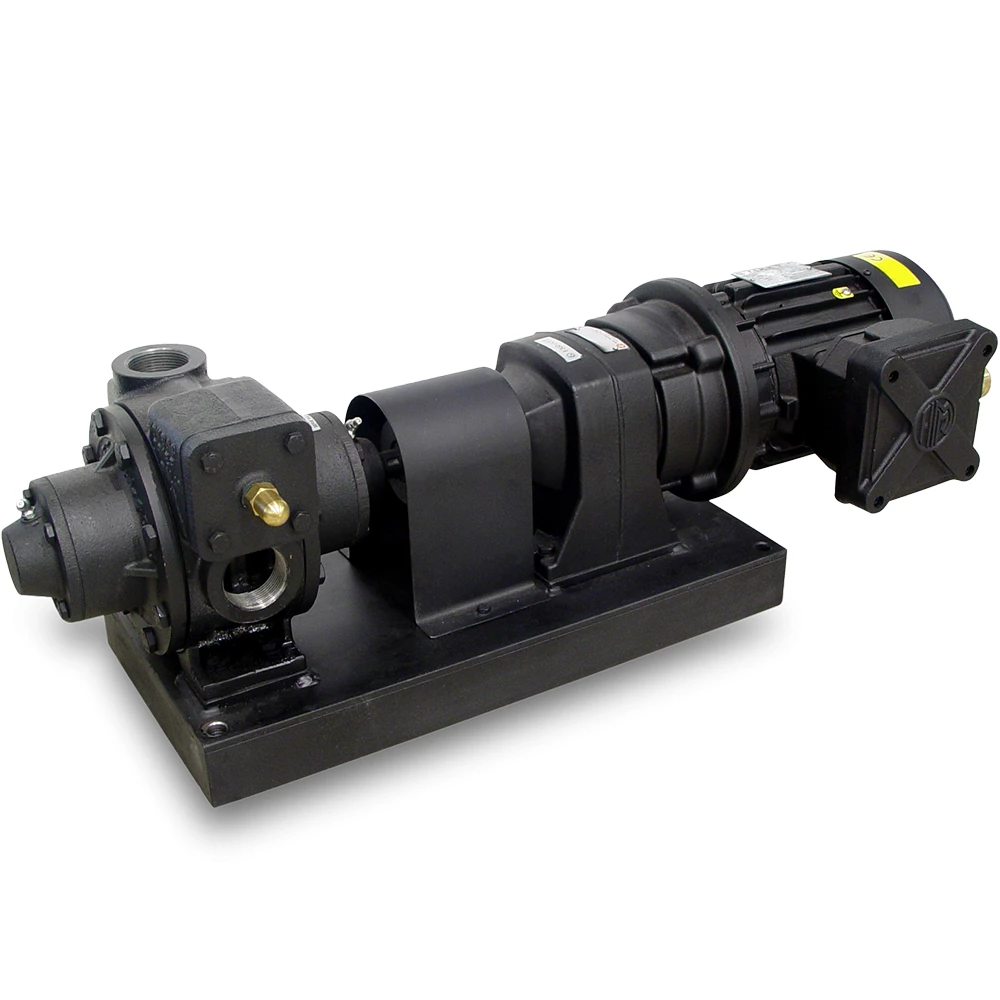

BDP-500 - F2 1/2″ - IP-55
TECHNICAL DATA
PUMP
- Flow: 500 l/min
- Operation pressure: 3.5 bar
- 640 rpm
- Connection through weldable flange of 2 1/2″
- Recommended diameters:
- suction-delivery connection: Ø3″
- Moto-pump group performance: horizontal
- Bypass built-in
ENGINE
- Voltage: 230/400 VAC triphasic
- Frequency: 50 Hz
- Powe: 4 kW
- IP-55 protection
- Condensable protection: encapsulated
- Turn speed: 1,500 rpm
- Insulation: F Class
- Reducer/motor coupling: flange
- Noise level: 80 dB(A)
Size and weight (approx.):
- Size: 1,050x365x345 mm (length x width x height)
- Weight: 148.5 kg
Extra information
| Product type: | Diesel Transfer Pump |
|---|---|
| Vendor: | Gespasa Shop - International Fuel Equipment and Services |
| Product sku: | 10111 |
| Weight: | 148.5 kg |
