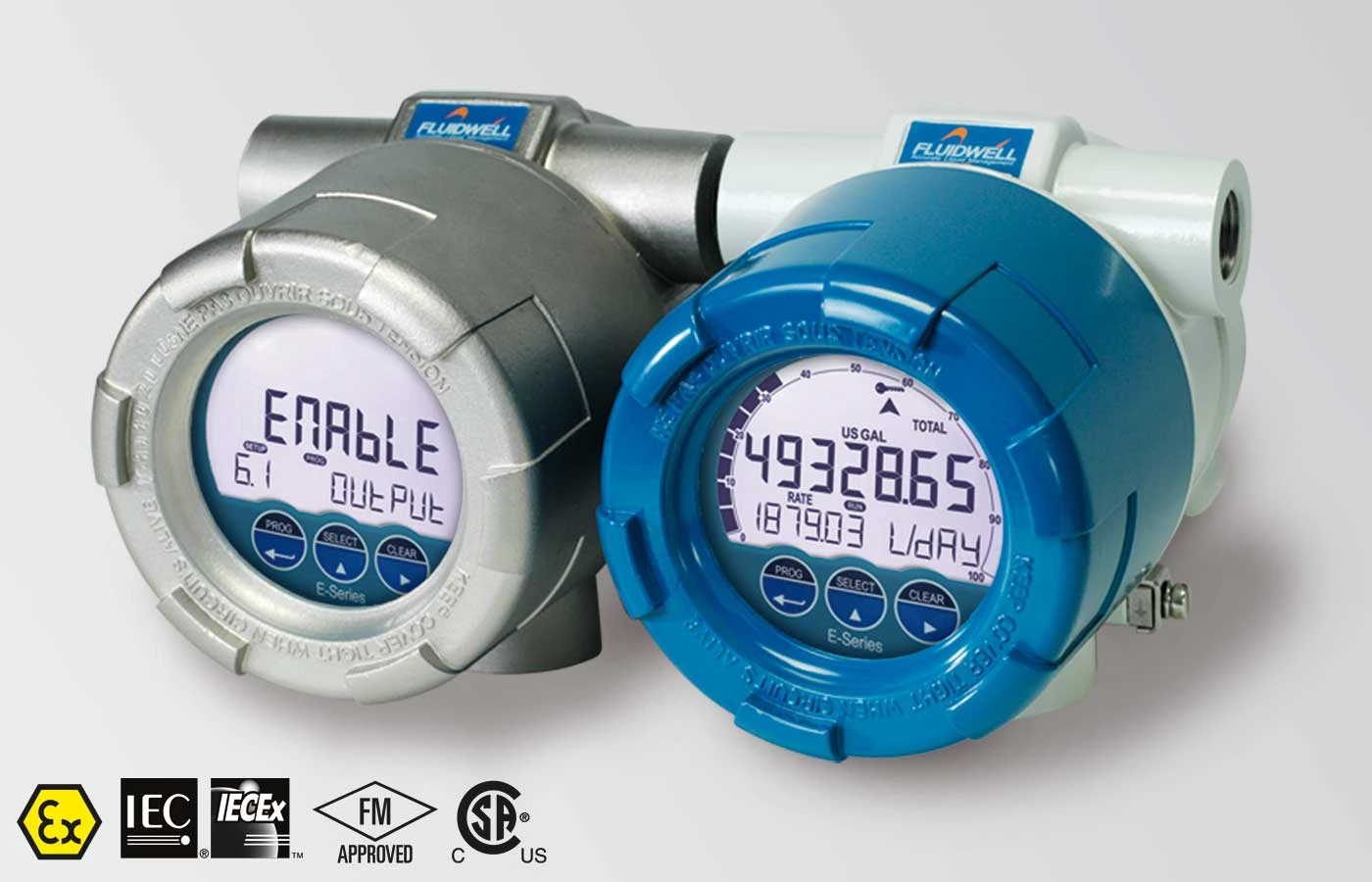

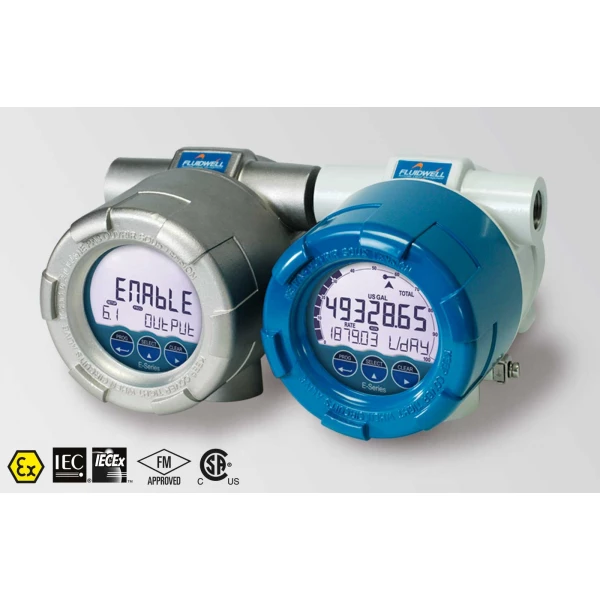

Fluidwell E Series – E112 Explosion proof – Flow rate Indicator / Totalizer

917,15 (1.109,75 incl. BTW)

  • E112 Flow rate Indicator / Totalizer, with linearization, analog and pulse outputs
  • P – Primary input: Pulse e.g. coil, npn, pnp, namur, reed-switch
  • AH – Galvanically isolated, loop powered analog 4-20mA output
  • CX – No communication
  • HAA – Die cast aluminum Ex d enclosure with entry threads: 1 x 1”NPT and 2 x 3/4”NPT
  • IB – Remote control input to reset total or to lock the “clear total” button
  • OT – Passive transistor output(s)
  • PB – Internal power supply – long life time
  • PX – Basic power supply 9-27V DC
  • XD – Flameproof cf. ATEX, IECEx, CSA, FM. I2GD Ex d IIC T6 Gb – Ex tb IIIC T85°C Db

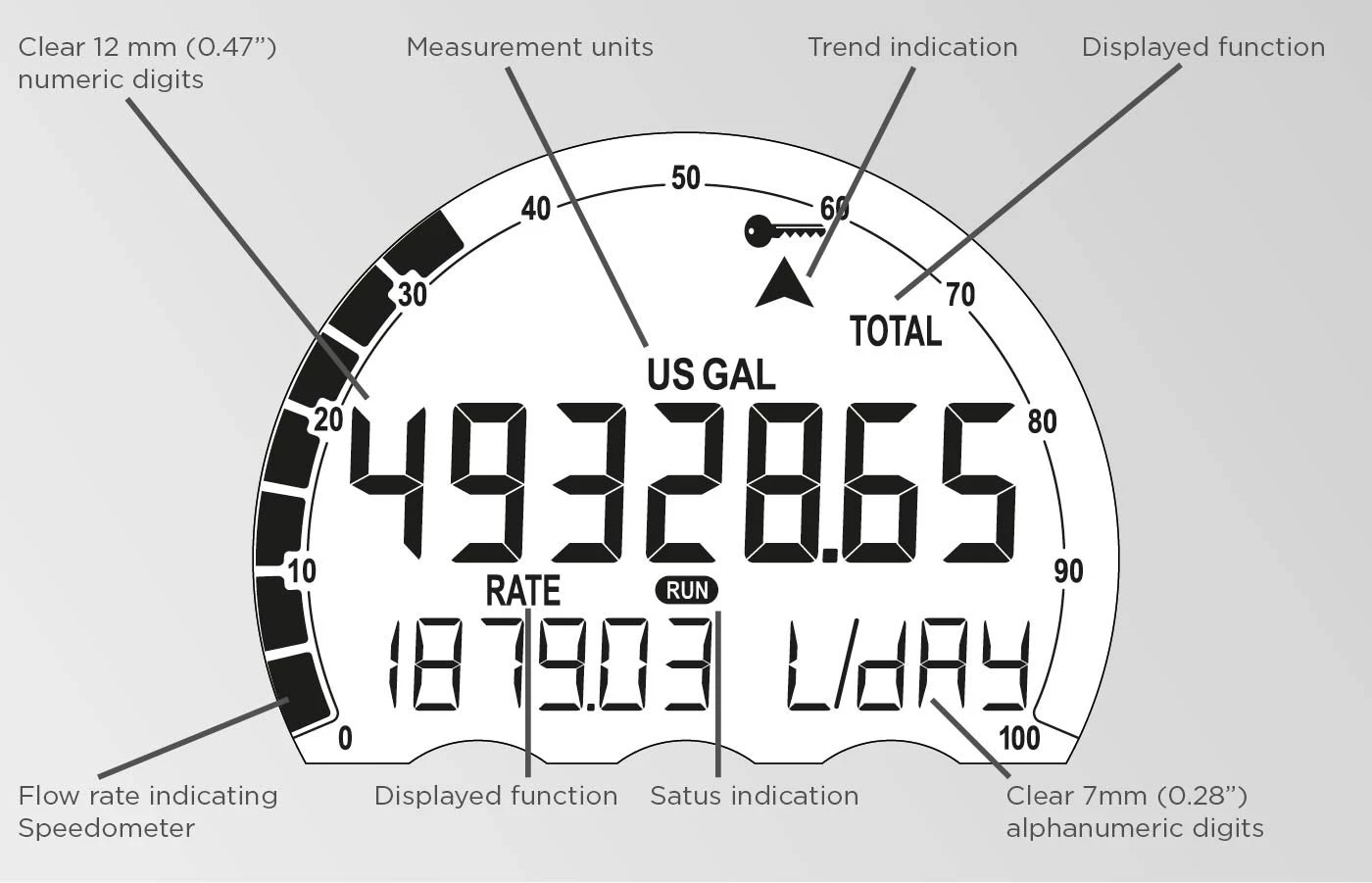

  • ZB – Backlight ZX – No option selected

Beschikbaar via nabestelling

  • 96.42% heeft een goede tot zeer goede ervaring met SENSORS.NL
  • Persoonlijke klantenservice
  • Ruim assortiment met een breed scala aan topmerken
  • Voor aantallen een extra korting nodig? Neem dan contact met ons op
Artikelnummer: E112-P-AH-CX-HAA-IB-OT-PB-PX-XD-ZB Categorieën: , , , ,
