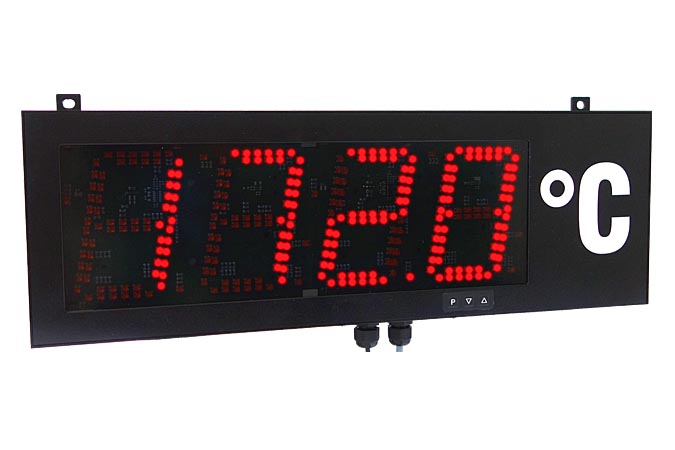

- MGO-AUR42.000X.S12AD
- Number of digits : 4 digits
- Unit : °C
- Digit height : 100mm, color red
- Wall mounting
- Housing : aluminum B470xH155xD58mm
- Powder coating black according to RAL 9005 for outdoor application with heater
- Protection class : IP65
- Power supply : 100-240VAC 50/60Hz
- Display range : -1999 to 9999
- MIN / MAX memory
- Control lock : via 4-digit code
- 9 point linearization of the measuring input
- Universal input :
0/4-20mA, 0-1-2-10VDC, 0-50mV
thermocouple type B, E, J, K, L, N, R, S, T
Pt100-2-3 wire, Pt1000-2 wire,
frequency 0.1Hz to 10kHz - Counter : on-or down counter (timer) with reset function
- Setpoint : 2 relays (closer) 30VDC/2A
- Connection : PG gland, bottom of housing internal terminals
- Supply, measuring input, switching points
- Operation : buttons housing front
- Assembly : fixing straps housing rear side
