VZO 15 Aquametro Oil Meter – (10-400 Max 600 litre/hr) Pulse Output = 0.1 Litre/Pulse Reed Switch

Specification

VZO 15 RC 130/16-RV0,1

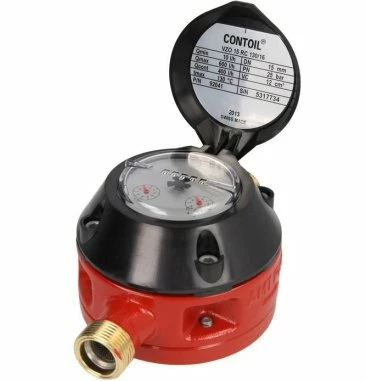

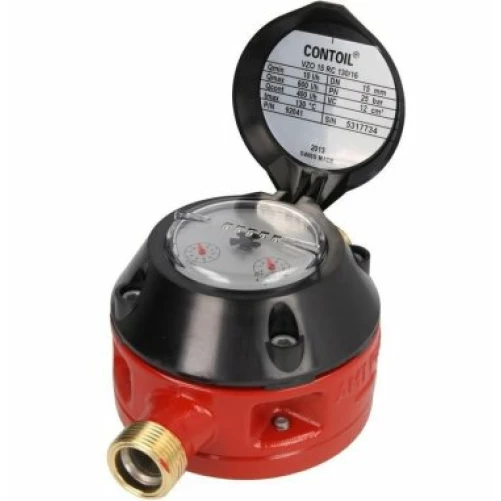

CONTOIL® oil meter VZO 15 RC 130/16-RV 0.1
Ring piston meter for mineral oil, with rotatable roller counter

Nominal diameter: DN 15 mm
With threaded ends 3/4” (for couplings 1/2”)
Nominal pressure: PN 16 bar
Installation length: 165 mm
Installation position: horizontal / vertical
Temperature, max: 130 °C
Measuring range (at visc. 1…20 mPa.s): 10…600 l/h
Max. continuous flow Qn: 400 l/h
Max. measuring deviation: ± 1% of measured value
Repeatability: ± 0.2%
Smallest readable value: 0.01 l
Registration capacity: 1 Mio l

With RV Reed pulser integrated in register unit
Contact load max.: 48 V AC/DC, 50 mA, 2 W
Pulse value: 0.1 l
