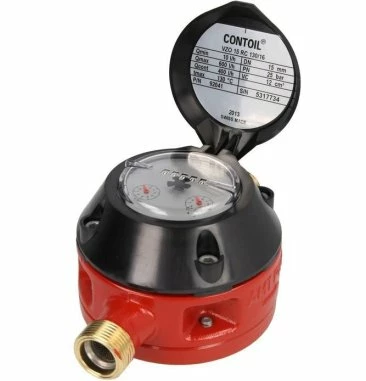

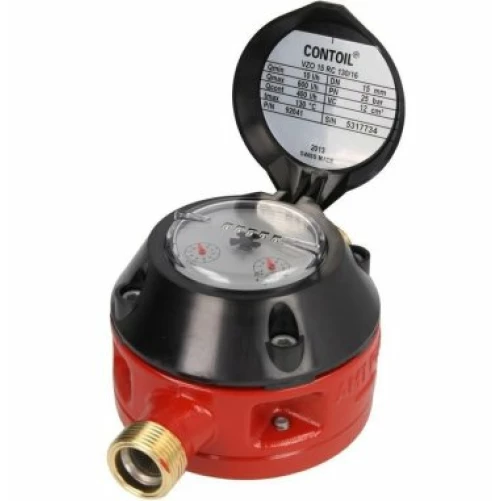

VZ0 15 Contoil Oil Meter – (10-400 Max 600 litre/hr)
Ring Piston or Oscillating Piston Type
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 0.01 Litre/Pulse Inductive Pulser
Max Temp 130°C
Max Pressure 16 bar
Positive Displacement / Low Pressure Drop Design
Accuracy ± 1% of actual value
8 Digit Totaliser
Specification
VZO 15 RC 130/16-IN0,01
CONTOIL® oil meter VZO 15 RC 130/16-IN 0.01
Ring piston meter suitable for mineral oil, with rotatable roller counter
Nominal diameter: DN 15 mm
With threaded ends 3/4” (for couplings 1/2”)
Nominal pressure: PN 16 bar
Installation length: 165 mm
Installation position: horizontal / vertical
Temperature, max: 130 °C
Measuring range (at visc. 1…20 mPa.s): 10…600 l/h
Max. continuous flow Qn: 400 l/h
Max. measuring deviation: ± 1% of measured value
Repeatability: ± 0.2%
Smallest readable value: 0.01 l
Registration capacity: 1 Mio l
With built-on inductive IN pulser as per DIN 19234
Supply 5…15 V DC, signal at 8 V DC 1 mA / 3 mA
Pulse value: 0.01 l
