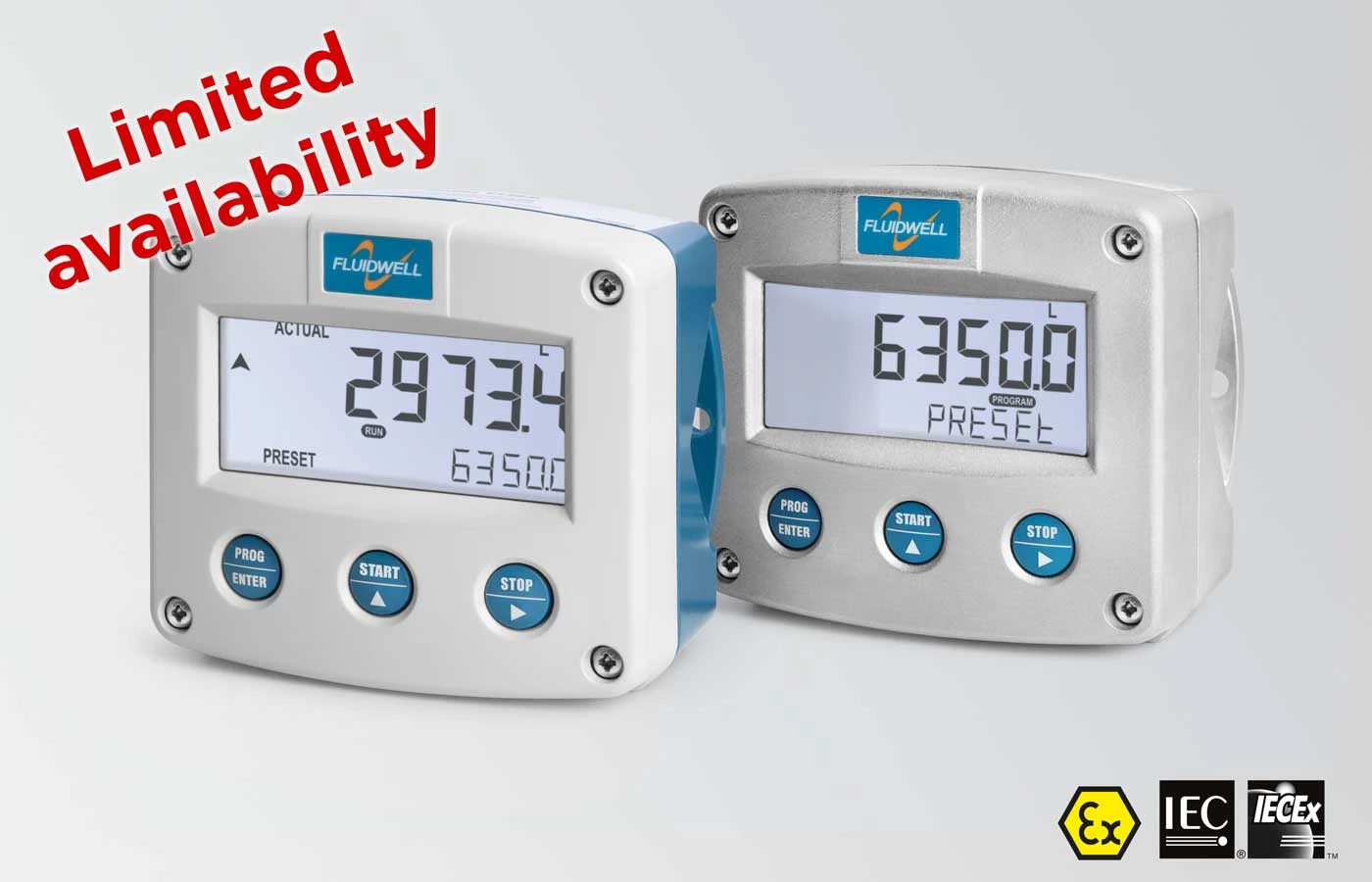

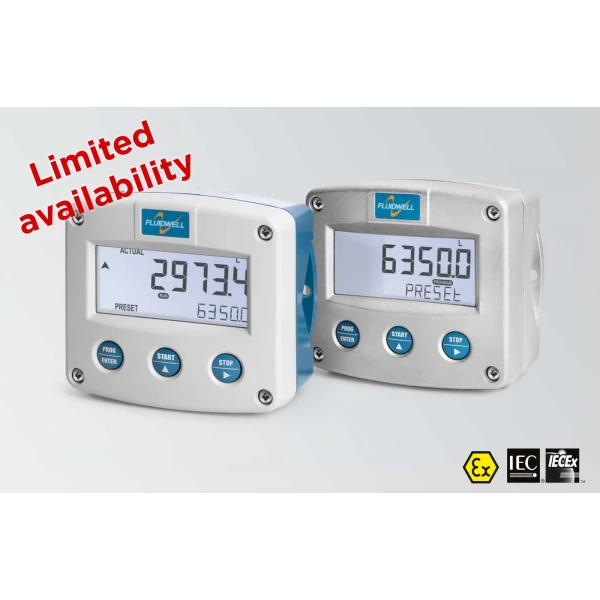

Fluidwell F Series – F131 Intrinsically Safe – Batch Controller (Limited availability)

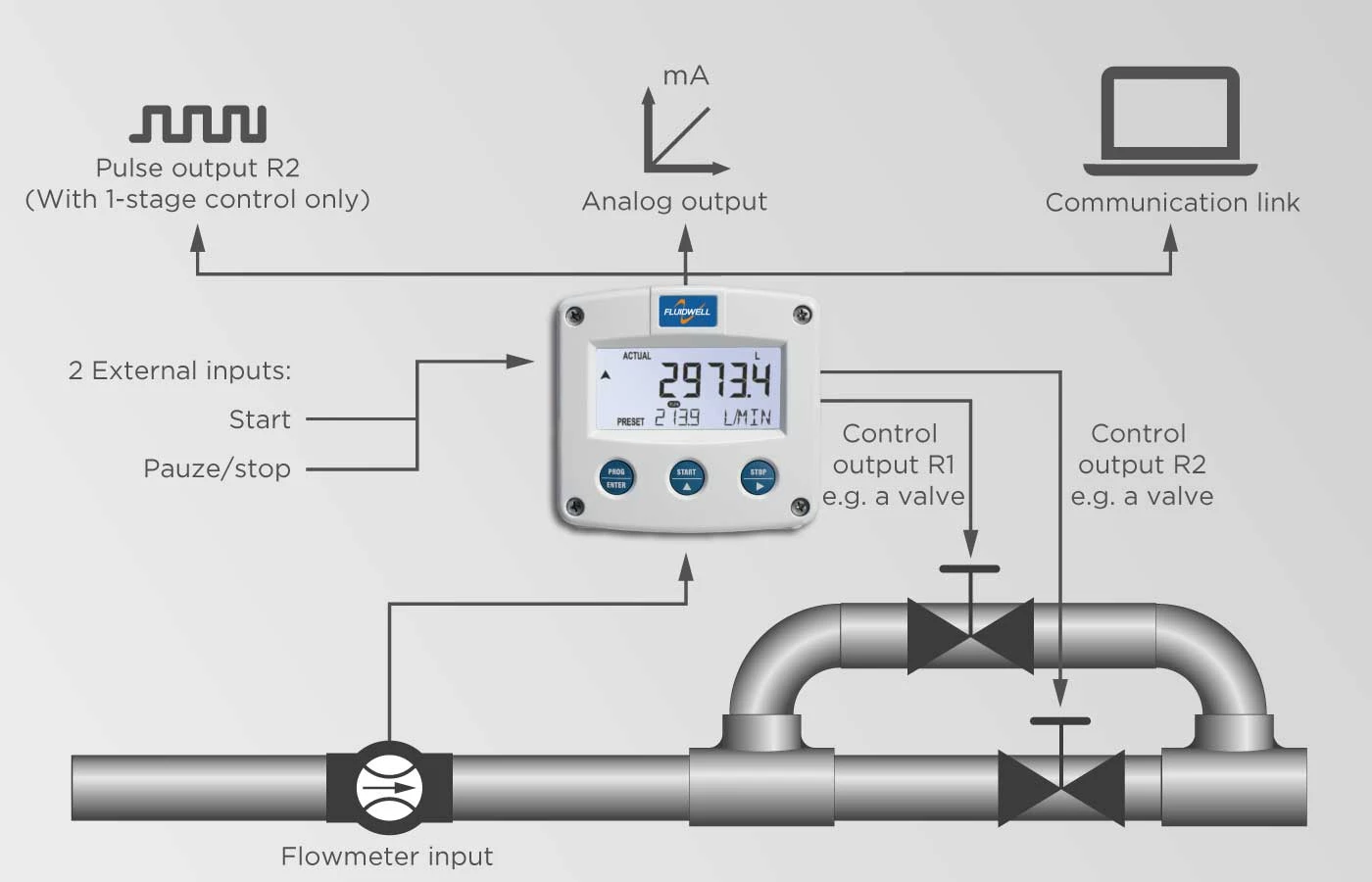

With two-stage control, pulse output and analog output in relation to the flow rate.

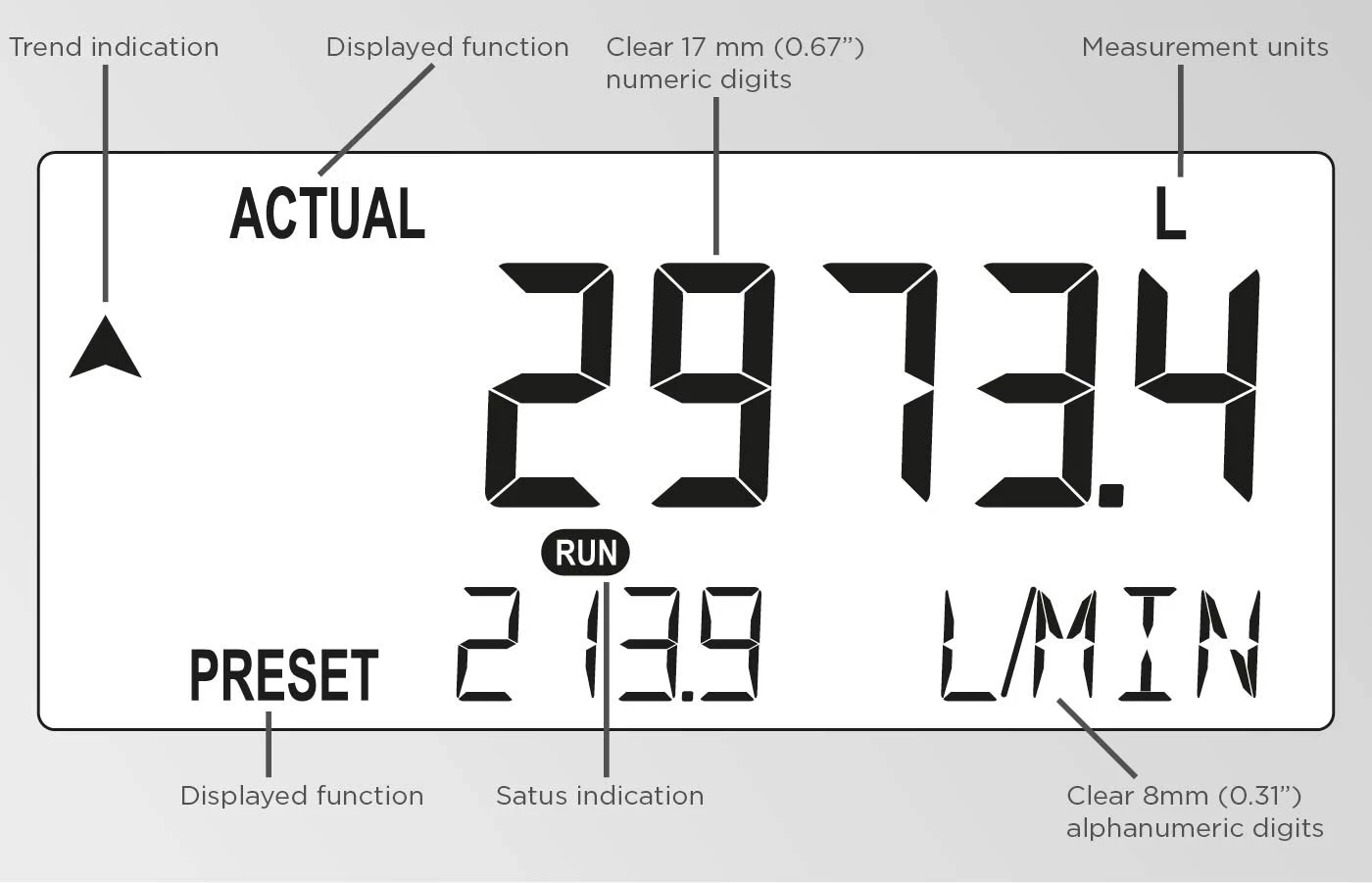

  • Large display shows running batch value together with preset value or flow rate.
  • Analog output reflecting the actual flow rate.
  • Flow rate: seven 8mm (0.31″) digits.
  • Two-stage control for batching larger quantities.
  • Self-learning overrun correction.
  • Easy operation to enter a batch value and to control the process.
  • Count-up and count-down function available.
  • Scaled pulse output reflecting accumulated or batched total.
  • Actual batched quantity: seven 17mm (0.67″) digits.
  • Preset value: seven 17mm (0.67″) digits during programming and 8mm (0.31″) digits during batchprocess.
  • Total – resettable: seven 17mm (0.67″) digits.
  • Accumulated total – not resettable: eleven 8mm (0.31″) digits.
  • LED backlight.
  • Intrinsically safe according ATEX and IECEx.
  • GRP, Aluminum or high grade stainless steel enclosure.
  • Auto backup of settings and running totals in EEPROM memory.
  • Ambient temperature: -40°C to +80°C (-40°F to 176°F).
