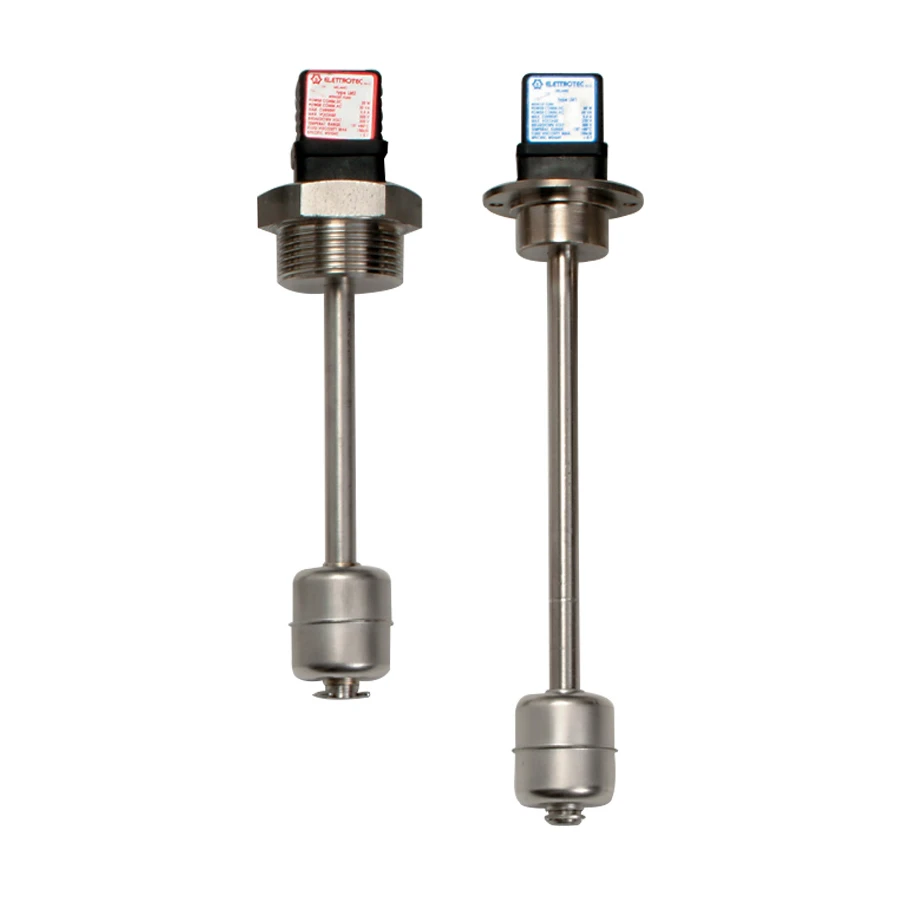

LM1 / LM2 / LMM1 FIA – TIA – PTIA – Stainless steel execution

LM1 / LM2 / LMM1 FIA – TIA – PTIA – Stainless steel execution

Productinformatie en datasheets →

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Aggiungi al preventivo

SKU: Item-elettrotec-80 Categoria: Elettrotec Tag: Elettrotec, Level, Standard Single- or Two-Point Level Switches

Descrizione

Materiale del corpo	Stainless steel AISI 316
Float material	Stainless steel AISI 316
Mounting material	Stainless steel AISI 316
Actuation point	LM1 – 1 actuation point contact NC/NO / LM2 – 1 actuation point contact SPDT / LMM1 – 2 actuation points NC/NO
Montaggio	FIA – Flange Ø 52 / TIA – Thread G1 1/4” / PTIA – Thread G1”
Collegamento elettrico	DIN 43650 – PG09 – IP65
Capacità di commutazione	LM1/LMM1 – 60W/VA / LM2 – 30W/VA
Current	LM1/LMM1- 0.8A (resistive) / LM2 – 0.5A (resistive)
Tensione	220V – 50Hz
Intervallo di temperatura	-10°C +80°C
Pressione massima	FIA/TIA – 10 bar / PTIA – 8 bar
Fluid specific gravity	FIA/TIA – 0.7 kg/dm³ / PTIA – 0.8 kg/dm³
Fluid viscosity	150 cSt
Certification	FIA/TIA – RINA – Lloyd’s Register – Germanischer Lloyd
Size	Max. lenght 1500 mm

Valuta questo prodotto

Scaricamento

Documentazione sul prodotto

Data Sheet
