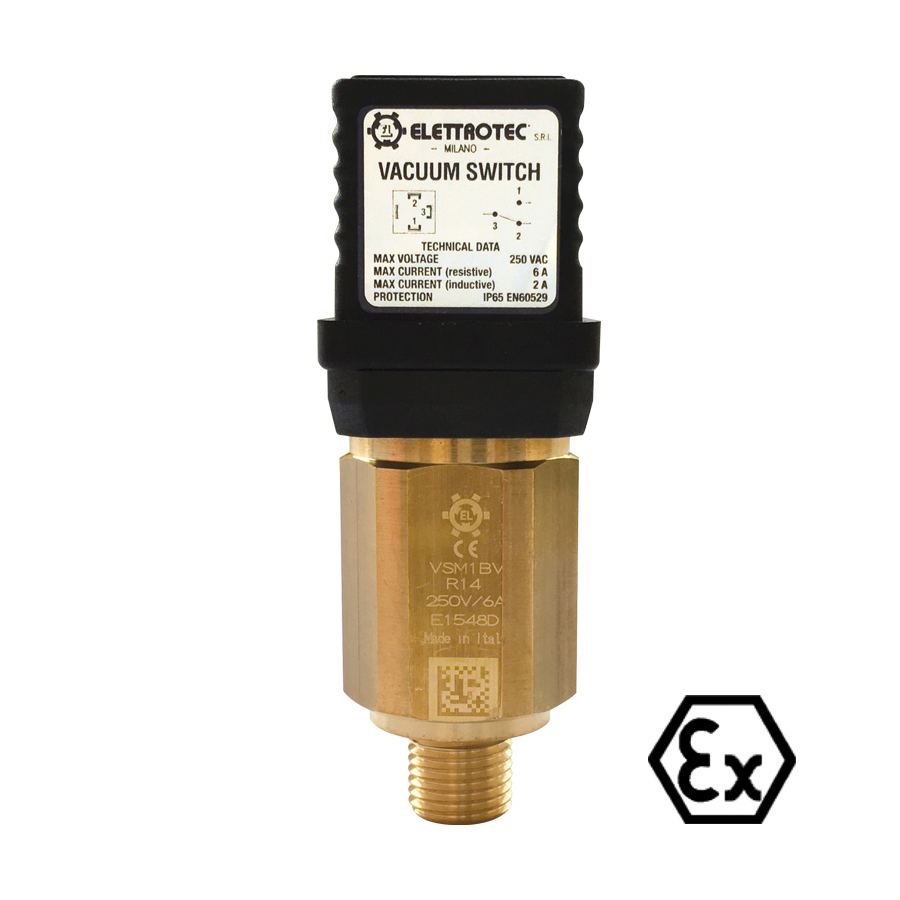

VSM – Vacuum switches intrinsic safety execution

Productinformatie en datasheets →

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring

Persoonlijke klantenservice en advies

Extra korting bij grote aantallen mogelijk: Neem contact op

Parameters	Intrinsic safety
Connector	DIN 43650 form A PG09 or PG11
Input voltage	Vi 30 V
Input current	Li 100mA
Max. input power	Pi 0,75 W
Input capacity	Ci ~ = 0
Input inductance	Li ~ = 0
Adjustment range	-200 -500 mbar / -500 -900 mbar
Max. static pressure	20 bar
Histerese	From 10% to 30% of set-point value
Gama de temperaturas	-30 C° +140 °C (according to diaphragm/seal material)
Contacto	SPDT
Material da carroçaria	Brass – Stainless steel AISI 316
Diaphragm / Seal material	NBR – FKM – Silicone – HNBR – Neoprene – EPDM
Threads	G1/8 – G1/4 – M12 x 1,5
Protecção	IP65 DIN 40050
Mechanical life	10⁶ operations
Dimensões	Body Ch 27 – Max. high 75 mm
Certificado	ATEX – II 1 G EEX ia IIC T6
Opções	Set-point rising and falling – Gold-plated contacts for low current – Degreased for oxygen – Set-point and hysteresis
