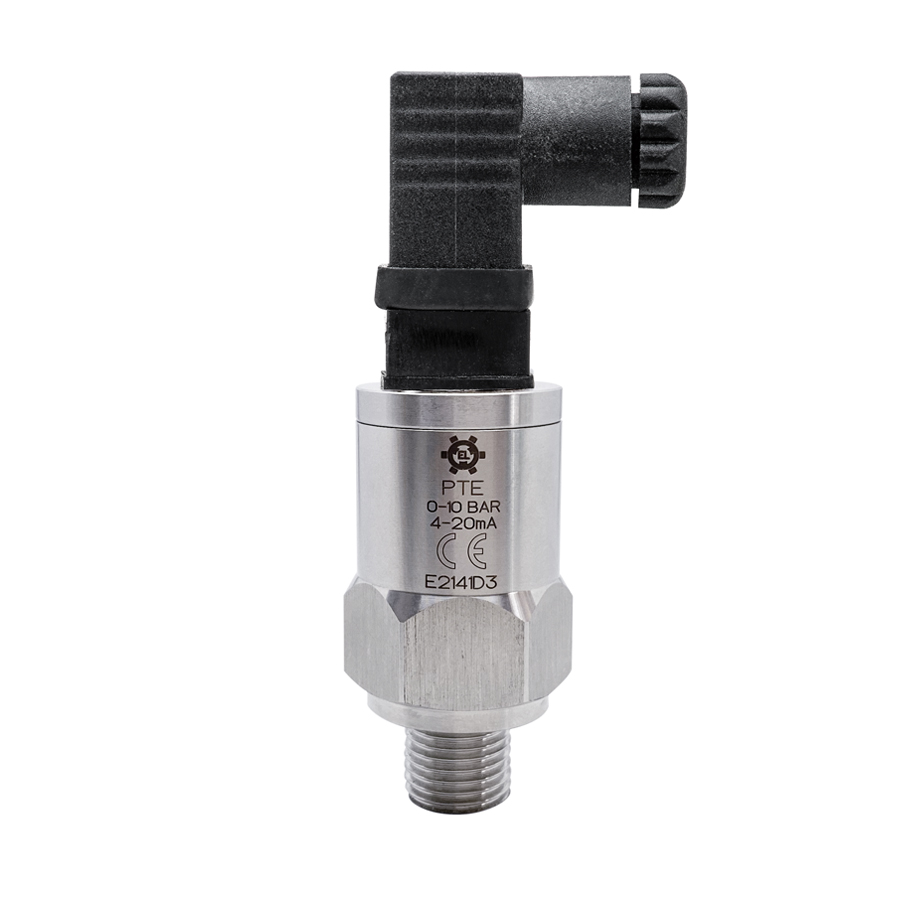

PTE – Pressure transducer

Productinformatie en datasheets →

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring

Persoonlijke klantenservice en advies

Extra korting bij grote aantallen mogelijk: Neem contact op

Tensão de alimentação	24 Vdc
Wiring protection	against polarity reversal on power supply and against short circuit on output signal
Current consumption	≤ 30mA if current output – ≤ 8mA if voltage output
Degree of protection	IP67 with M12 connector – IP65 with Mini DIN43650 connector
Relative setting range	-1…4bar; 0…2bar; -1…9bar; 0…5bar; 0…10bar; 0…20bar; 0…50bar; 0…100bar; 0…200bar; 0…400bar
Tightening torque	≤ 20Nm
Precisão	≤ 1% F.S. / year /@25°C
Stability	≤ 0.3% F.S. / year /@25°C
Linearity, hysteresis, repeatability	≤ 0.4% F.S.
Tempo de resposta	≤ 5 ms
Maximum temperature (in contact with fluid)	-25°C … +125°C
Temperatura de armazenamento	-40°C … +135°C
Output type	Voltage 0-10V 3 poles minimum load 3KΩ – Current 4/20mA 2 poles I ≤ 30 mA
Material da carroçaria	Stainless steel AISI 316
Diaphragm/Piston gasket material	NBR (standard)
Linha	G1/4BSPP – other threads available on request
Mechanical life	3×106 cycles
Dimensões	Body Ch. 24 Max height 89mm
Certificações	CE
