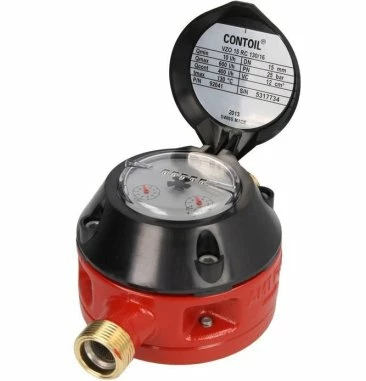

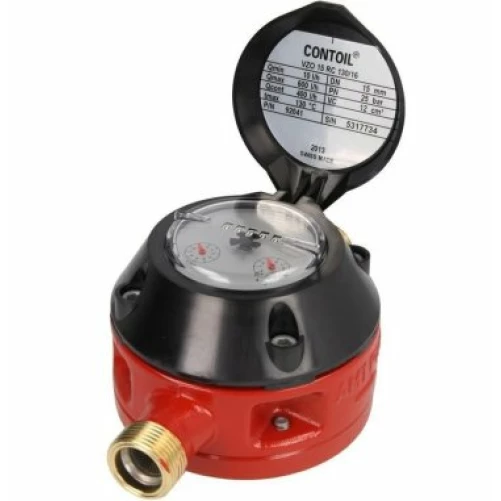

VZOA 20 Aquametro Oil Meter – (30-1000 Max 1500 litre/hr) Pulse Output = 0.01 Litre/Pulse
€1.807,00 (€2.186,47 incl. BTW)
VZOA 20 Contoil Oil Meter
Flow: 30-1000 litre/hr Max 1500 litre/hr
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 0.01 Litre/Pulse Inductive Pulse
Nominal diameter: 20mm (3/4″)
Optional fittings available
Product Code: 92292
Beschikbaar via nabestelling
- 96.42% heeft een goede tot zeer goede ervaring met SENSORS.NL
- Persoonlijke klantenservice
- Ruim assortiment met een breed scala aan topmerken
- Voor aantallen een extra korting nodig? Neem dan contact met ons op
VZOA 20 Contoil Oil Meter – (30-1000 Max 1500 litre/hr)
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 0.01 Litre/Pulse Inductive Pulse
Nominal diameter: 20mm (3/4″)
Optional fittings available
Max Temp 130C
Max Pressure 16 bar Positive Displacement / Low Pressure Drop Design
Accuracy 0.5% of actual value
8 Digit Totaliser
Max Temp 130C
Max Pressure 16 bar Positive Displacement / Low Pressure Drop Design
Accuracy 0.5% of actual value
8 Digit Totaliser
Product Code: 92292
Specification
VZOA 20 RC 130/16-IN0,01
CONTOIL® oil meter VZOA 20 RC 130/16-IN 0.01
Ring piston meter for mineral oil, with rotatable roller counter
Nominal diameter: DN 20 mm
With threaded ends 1” (for couplings 3/4”)
Nominal pressure: PN 16 bar
Installation length: 165 mm
Installation position: horizontal / vertical
Temperature, max: 130 °C
Measuring range (at visc. 1…20 mPa.s): 30…1500 l/h
Max. continuous flow Qn: 1000 l/h
Max. measuring deviation: ± 0.5% of measured value
Repeatability: ± 0.2%
Smallest readable value: 0.1 l
Registration capacity: 10 Mio l
With built-on inductive IN pulser as per DIN 19234
Supply 5…15 V DC, signal at 8 V DC < 1 mA / > 3 mA
Pulse value: 0.01 l
| Gewicht | 10 kg |
|---|
