VZO 25 Contoil Oil Meter – (75-2000 Max 3000 litre/hr)
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 1 Litre/Pulse
Reed Switch Pulse 25mm
Flanged PN25 (JIS and ANSI no additional cost)
Product Code: 92060
Max Temp 130C
Max Pressure PN25
Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser
Specification
VZO 25 FL 130/25-RV1

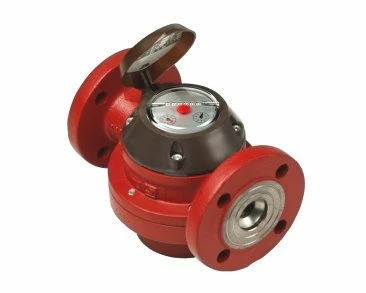

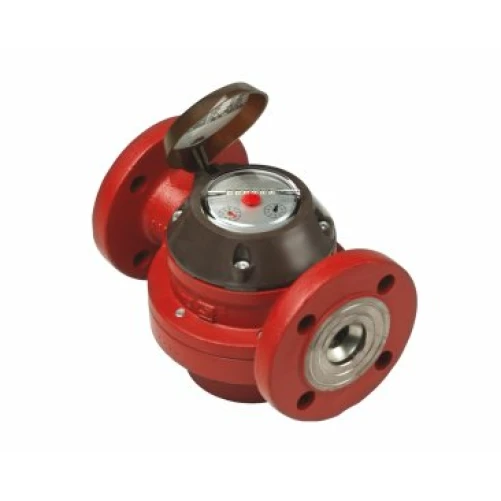

CONTOIL® oil meter VZO 25 FL 130/25-RV 1
Ring piston meter for mineral oil, with rotatable roller counter
Nominal diameter: DN 25 mm
Connection for flanges: DN 25 to DIN 2501
Nominal pressure: PN 25 bar
Installation length: 190 mm
Installation position: horizontal / vertical
Temperature, max: 130 °C
Measuring range (at visc. 1…20 mPa.s): 75…3000 l/h
Max. continuous flow Qn: 2000 l/h
Max. measuring deviation: ± 1% of measured value
Repeatability: ± 0.2%
Smallest readable value: 0.1 l
Registration capacity: 10 Mio l
With RV Reed pulser integrated in register unit
Contact load max.: 48 V AC/DC, 50 mA, 2 W
Pulse value: 1 l
