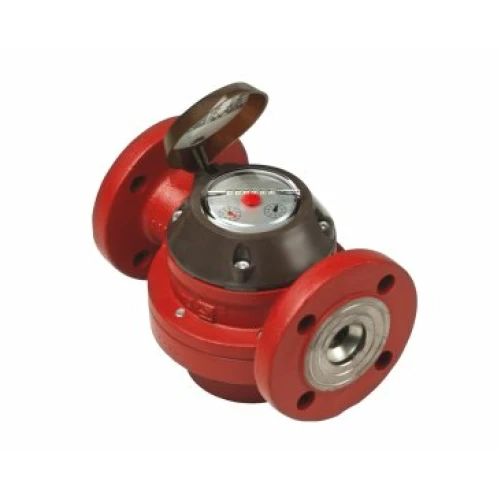

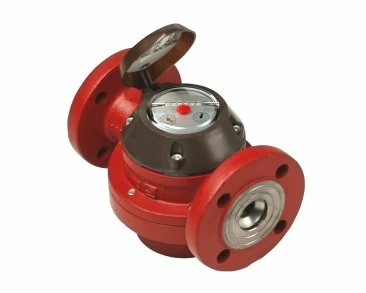

VZO 25 Aquametro Oil Meter – (75-2000 Max 3000 litre/hr) Pulse Output = 0.1 Litre/Pulse
€1.890,00 (€2.286,90 incl. BTW)
VZO 25 Contoil Oil Meter – (75-2000 Max 3000 litre/hr)
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 0.1 Litre/Pulse Inductive Pulser
25mm Flanged PN25 (JIS and ANSI no additional cost)
Product Code: 91914
Beschikbaar via nabestelling
- 96.42% heeft een goede tot zeer goede ervaring met SENSORS.NL
- Persoonlijke klantenservice
- Ruim assortiment met een breed scala aan topmerken
- Voor aantallen een extra korting nodig? Neem dan contact met ons op
VZO 25 Contoil Oil Meter – (75-2000 Max 3000 litre/hr)
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 0.1 Litre/Pulse Inductive Pulser
25mm Flanged PN25 (JIS and ANSI no additional cost)
Product Code: 91914
Max Temp 130C
Max Pressure PN25
Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser
Specification
VZO 25 FL 130/25-IN0,1
CONTOIL® oil meter VZO 25 FL 130/25-IN 0.1
Ring piston meter for mineral oil, with rotatable roller counter
Nominal diameter: DN 25 mm
Connection for flanges: DN 25 to DIN 2501
Nominal pressure: PN 25 bar
Installation length: 190 mm
Installation position: horizontal / vertical
Temperature, max: 130 °C
Measuring range (at visc. 1…20 mPa.s): 75…3000 l/h
Max. continuous flow Qn: 2000 l/h
Max. measuring deviation: ± 1% of measured value
Repeatability: ± 0.2%
Smallest readable value: 0.1 l
Registration capacity: 10 Mio l
With built-on inductive IN pulser as per DIN 19234
Supply 5…15 V DC, signal at 8 V DC 1 mA / 3 mA
Pulse value: 0.1 l
| Gewicht | 10 kg |
|---|
