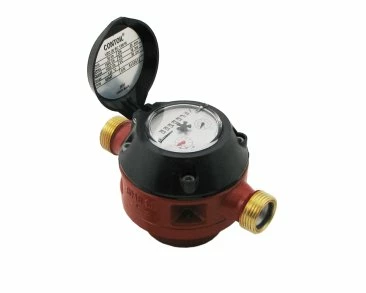

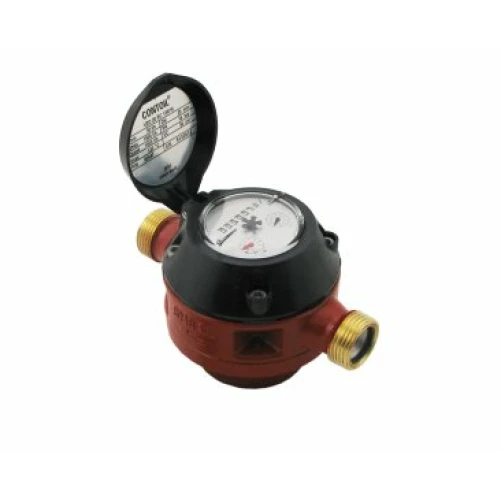

VZO 20 Aquametro Oil Meter – (30-1000 Max 1500 litre/hr) Pulse Output = 1 Litre/Pulse
€1.002,00 (€1.212,42 incl. BTW)
VZO 20 Contoil Oil Meter
Flow: 30-1000 litre/hr Max 1500 litre/hr
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 1 Litre/Pulse Reed Switch
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 1 Litre/Pulse Reed Switch
Nominal diameter: 20mm (3/4″)
Optional fittings available
Product Code: 92048
Product Code: 92048
Beschikbaar via nabestelling
- 96.42% heeft een goede tot zeer goede ervaring met SENSORS.NL
- Persoonlijke klantenservice
- Ruim assortiment met een breed scala aan topmerken
- Voor aantallen een extra korting nodig? Neem dan contact met ons op
VZO 20 Contoil Oil Meter – (30-1000 Max 1500 litre/hr)
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 1 Litre/Pulse Reed Switch
Nominal diameter: 20mm (3/4″)
Optional fittings available
Product Code: 92048
Max Temp 130C
Max Pressure 16 bar
Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser
Product Code: 92048
Max Temp 130C
Max Pressure 16 bar
Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser
Specification
VZO 20 RC 130/16-RV1
CONTOIL® oil meter VZO 20 RC 130/16-RV 1
Ring piston meter for mineral oil, with rotatable roller counter
Nominal diameter: DN 20 mm
With threaded ends 1” (for couplings 3/4”)
Nominal pressure: PN 16 bar
Installation length: 165 mm
Installation position: horizontal / vertical
Temperature, max: 130 °C
Measuring range (at visc. 1…20 mPa.s): 30…1500 l/h
Max. continuous flow Qn: 1000 l/h
Max. measuring deviation: ± 1% of measured value
Repeatability: ± 0.2%
Smallest readable value: 0.1 l
Registration capacity: 10 Mio l
With RV Reed pulser integrated in register unit
Contact load max.: 48 V AC/DC, 50 mA, 2 W
Pulse value: 1 l
| Gewicht | 10 kg |
|---|
