Vlottersensor voor horizontale montage. Kan op iedere melder met NO/NC ingang. Kabellengte 200 centimeter (verlengbaar).

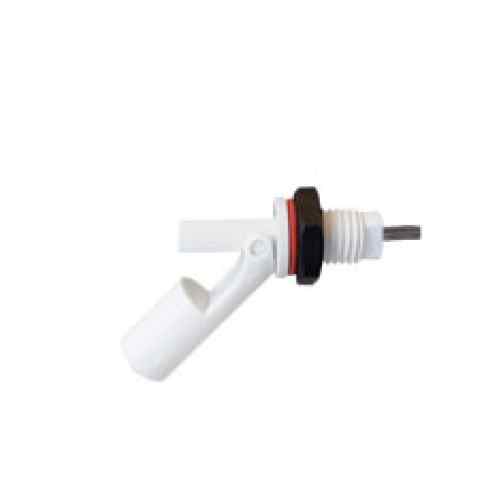

Float level switch AC-WS-FS1 for horizontal mounting. Suitable for use in combination with Mobeye products, e.g. as a second water level sensor for the Mobeye Water Detector MS300 or the Mobeye WaterGuard CM4300FS.
The Mobeye AC-WS-FS1 helps to detect water and water-based liquids (acids). Ideal for use in water tanks.
The material is polypropylene, nylon and silicone (nut and sealing).
How does the float level switch work
A horizontal float switch consists of a reed switch, a magnet and a float. If horizontally aligned, the movable part (the float) hangs down, and the rising water level will close it. The closing of the magnet results in a closed loop. It is possible to install the switch as a normally open (NO) or, vice versa, as a normally closed (NC). In an NC mounting, the water level will open the switch.
The float switch can be used with any system with NO / NC input. Cable length is 200 centimeters. An extension is possible.
If no attachment point for the switch is available, we recommend to mount an auxiliary rod with a hole as fixing point.
