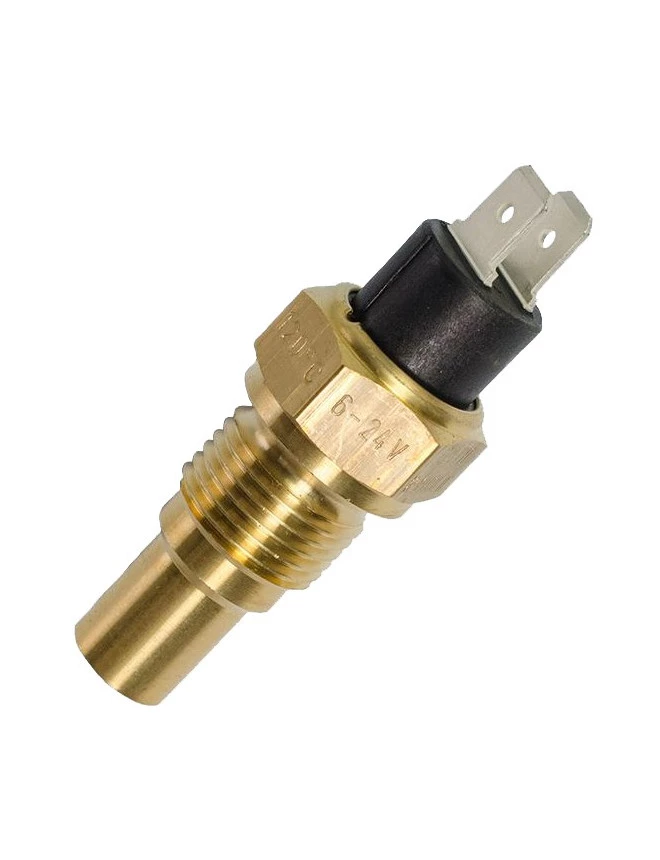

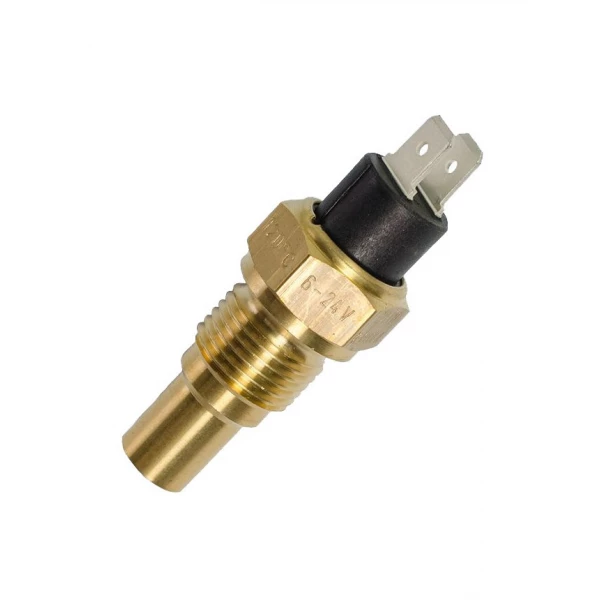

VDO – Oil temperature sender 150°C – 1/4-18 NPTF

Description engine- and transmission- oil temperature sender:

VDO 323 805 003 002N Full technical specifications:

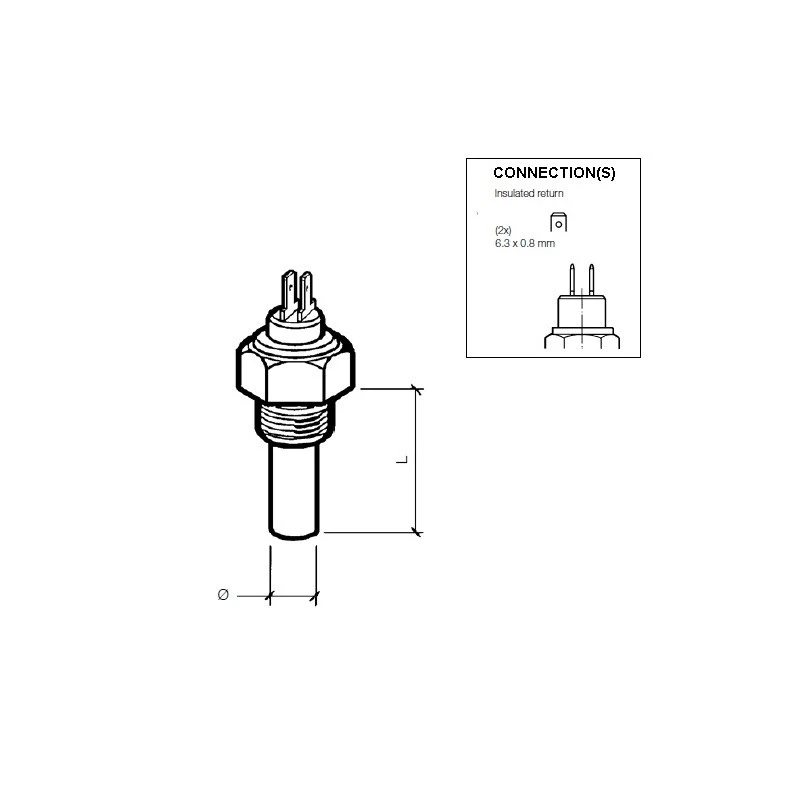

Mechanical features:

Temperature measuring range:	+50°C to +150°C
Minimum – Maximum operating temperature:	-40 °C to +180 °C
Thread:	1/4-18 NPTF
Sender element length + thread (L):	29 mm
Sensor diameter:	11 mm
Torque:	20 Nm
Temperature medium:	Coolant – Water – Air – Engine oil – Transmission oil – Fuel

Electrical features:

Operating voltage:	6 – 24 V DC
Resistor range:	322.8 – 18.6 Ohm
Temperature sensor signal:	Dual-Pole insulated return
Warning contact:	None
Optional warning contact:	VDO A2C59510886 Makepoint Switch
Temperature sender connector:	AMP Male 6.3 x 0.8 mm

Datasheets and Tables:

VDO 2014 Vehicle Electronics Catalog:	Page 138 – 139
Type of connection:	G
VDO En Du Temperature senders Tables:	VDO table: 2
Temperature 100 °C > Resistance:	100 °C = 61.92 Ohm ± 5.49 Ohm

Retail package:

• VDO 323 805 003 002N Temperature sender
• VDO Sensors are – unless otherwise noted – delivered without connecting material
