- Meetgebied [°C] : -30…+40 tot 350
- Sensor: mechanisch
- Capillairlengte: 2 mtr., roestvast staal
- Output : microschakelaar SPDT
- Schakeldifferentiaal: verstelbaar
- Behuizing : Alu epoxy coating IP65
- Omgevingstemp. [°C] : tot +70
- Nauwkeurigheid: +/- 2% van volle schaal
- Instelling: intern
- Goedkeuring: SEV 15 ATEX
0156 X IECEx SEV 17.0010X

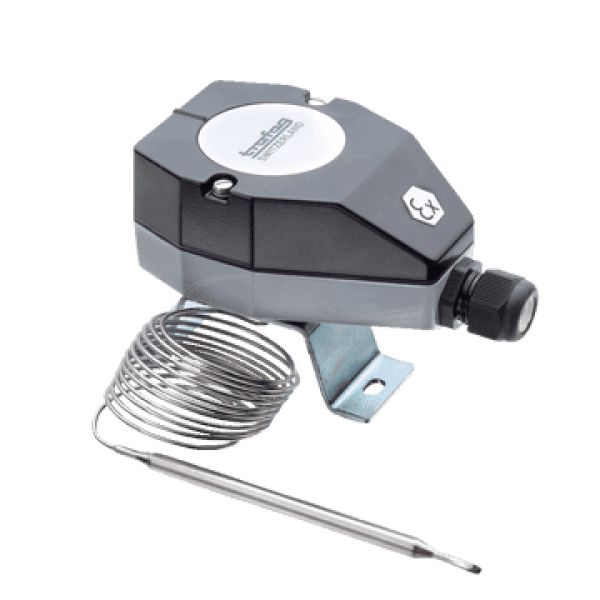

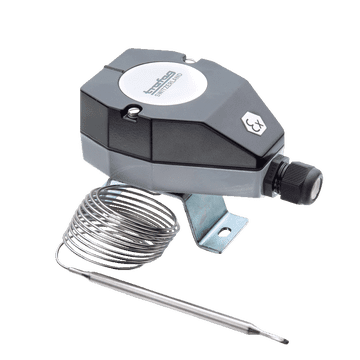

Trafag Explosieveilige Capillair thermostaat EXS 404/414 EX Industat
€391,11 – €414,60
- Compact ontwerp
- Robuuste behuizing
- Elke montagepositie mogelijk
- Ex db eb IIC T6 Gb
- Ex tb IIIC T80 ° C Db
Artikelnummer: N/B
Categorieën: Dompelthermostaten, Explosieveilig, Trafag, Trafag thermostaten
Gewicht | 1 kg |
---|---|
Sensor materiaal | 1.4435 (AISI316L), Copper |
Bereik (°C) | -30 … +40, +20 … +150, +20 … +230, +5 … +95, +70 … +350, 0 … +35 |
Schakeldifferentie | 0.7 … 10 (adjustable), 2 … 12 (adjustable), 2.5 … 16 (adjustable), 3 … 32 (adjustable), 4 … 40 (adjustable) |
Sensor max. | 105, 165, 250, 380, 45, 60 |
Merk | Trafag |
