RC-E163W-1-TP

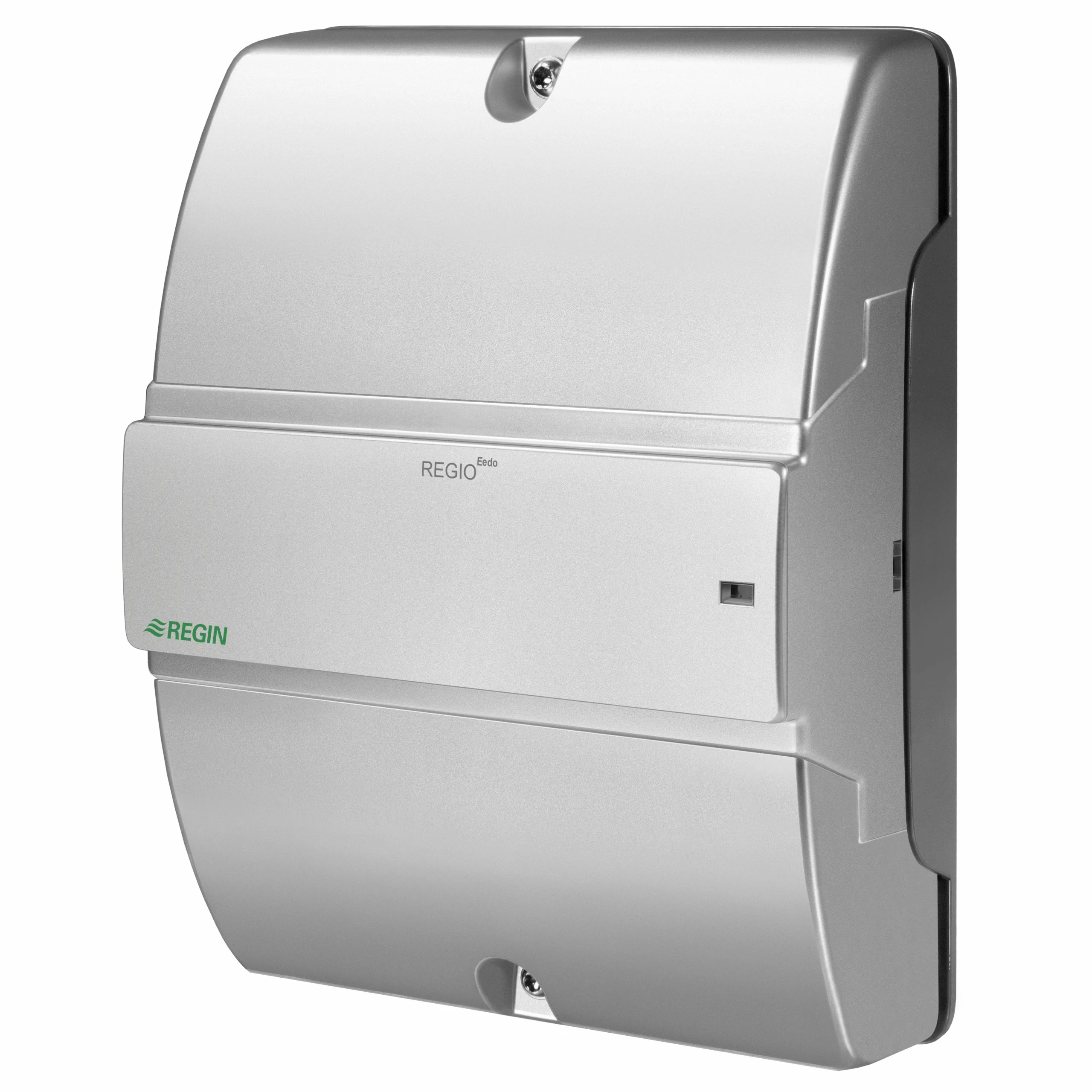

Regio Eedo is a configurable 230 V zone controller for e.g. fan coils.It is prepared for quick connection of the ED-RU room units. The controller is compatible with other Regin products and can easily be integrated into larger systems.The controller can be used in systems with communication, e.g. EXOline, Modbus or BACnet (over RS485 or TCP/IP). It is installed in a ceiling void, on a junction box plate or on a DIN-rail.
- 96.42% heeft een goede tot zeer goede ervaring met SENSORS.NL
- Persoonlijke klantenservice
- Ruim assortiment met een breed scala aan topmerken
- Voor aantallen een extra korting nodig? Neem dan contact met ons op
Specificaties
| Power Supply | 230VAC (207…253 V AC 50/60Hz / ), 11.0 VA |
|---|---|
| Dimensions, external (WxHxD) | 153x202x68 mm |
| AI | 3 |
| DI | 3 |
| CI | 1 |
| AO | 4 |
| DO | 5 |
| Battery type | CR2032 |
|---|---|
| Battery life time | 5 years |
| Protection class | IP30 |
| Ambient humidity (non-condensing) | 0…95 % RH |
| Mounting | DIN-rail, Wall, Ceiling |
| Analogue inputs type (AI) | PT1000 or 0…10 V DC |
| Digital inputs type (DI) | Potential-free contact |
| Digital outputs type (DO) | Triac outputs: 230 V AC, 300 mA / Relay outputs: 230 V AC, 3 A |
| Condensation inputs type (CI) | Input for Regin’s condensation detector KG-A/1 |
| Analogue outputs type (AO) | 0…10 V DC |
