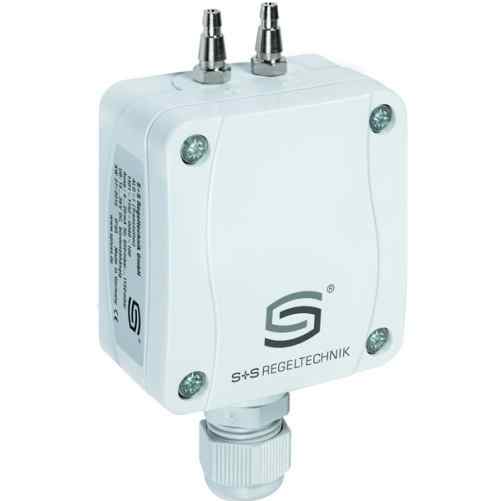

De kalibreerbare druksensoren PREMASGARD~ 1110 met acht omschakelbare meetbereiken en optioneel display, dienen voor het meten van over-, onder- of verschildruk in lucht. Het pi~zoresistieve meetelement is temperatuurgecompenseerd en garandeert een hoge betrouwbaarheid en nauwkeurigheid. De druktransmitter beschikt over een drukknop voor een handmatige nulpuntsbepaling en over een instelbare offset. Hij wordt onder andere gebruikt in cleanrooms, medische-, en filtertechnieken, luchtkanalen, spuitcabines en grootkeukens, voor filterbewaking en volstandsmeting of voor het aansturen van frequentieregelaars. Het meetmedium is lucht (niet condenserend) of gasvormige, niet agressieve, niet brandbare media. De verschildruksensor is inclusief aansluitset ASD-06 (2 m aansluitslang, twee drukaansluitnippels, schroeven).
Voltage supply | 15…36 V DC depending on working resistance, residual ripple stabilised ± 0.3 V |
---|---|
Power consumption | < 1 W at 24 V DC; < 2 VA at 24 V AC |
Working resistance | Ra (ohm) = (Ub -14 V)/ 0.02 A for I variant |
Output | 4…20 mA |
Output signal | 4…20 mA |
Measuring function | Differential pressure, volume flow (square root output signal) |
Measuring ranges | multi-range switching with 8 switchable measuring ranges |
Media temperature | -20…+50°C |
Pressure connection | 4/ 6 x 11 mm (hoses Ø = 4/ 6 mm), metal pressure connection nozzles |
Type of pressure | differential pressure |
Accuracy | (1000 Pa): ± typically 10 Pa compared to the calibrated reference device |
Zero point offset | ± 5 % of final value |
Above- ⁄ below-pressure | max. 5 x pressure range |
Medium | clean air and non-aggressive, non-combustible gases |
Signal filtering | switchable 1 s/ 10 s |
Electrical connection | 2- or 3-wire connection 0.14 – 1.5 mm² via terminal screws |
Cable connection | cable gland, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm) or M12 connector according to DIN EN 61076-2-101 (optional on request) |
Housing | plastic, UV-stabilised, material polyamide, 30 % glass-globe reinforced, with quick-locking screws (slotted/ Phillips head – combination), colour traffic white (similar to RAL 9016) |
Housing dimensions | 72 x 64 x 37,8 mm (Tyr 1) |
Cable gland | M 16 x 1.5, including strain relief, exchangeable, max. inner diameter 10.4 mm |
Long-term stability | ± 1 %/ year |
Hysteresis | 0.3 % of final value |
Media contacting parts | ms, Ni, Nylon, PU, Si, PVC with plasticisers |
Temperature drift values | ± 0.1 % of final value/ °C |
Linearity | < ± 1 % of final value |
Air humidity | < 95 % r. H., non-precipitating air |
Protection class | III (according to EN 60 730) |
Protection type | IP 65 (according to EN 60 529) |
Standards | CE conformity, electromagnetic compatibility according to EN 61326, according to EMC Directive 2014/ 30/ EU |
