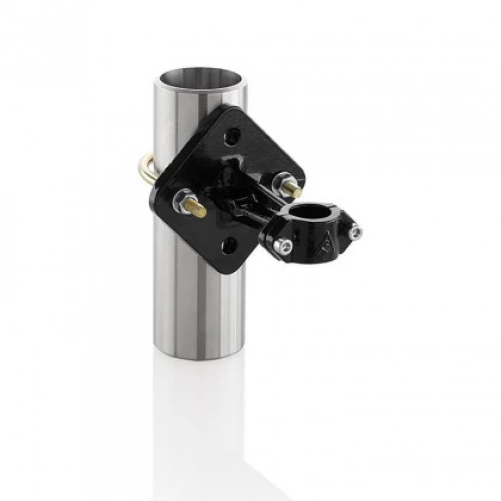

The Mounting Brackets fit to AS-Schneider Gauge Valves with shaft Ø 26mm – generally types B Gauge Valves according to DIN 16270 – DIN 16272 but also Adapters according to DIN 16281. Mounting bracket types A and H are standardized in DIN 16281. The brackets are designed for panel, wall and 2″ pipe mounting (except types H – not suitable for 2″ pipe mounting) and give full clearance for ease of handle operation.
The standard extension is L = 100mm. Mounting Bracket types H is also available with 60 and 160mm extension.The Mounting Bracket Kits for 2″ Pipe Mounting are containing:
1 Mounting Bracket
1 ‘U’ Bolt
2 Washers – 8.4
2 Hexagon Nuts M8
