Manifold-Combinations With Test Connection
- Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
- Persoonlijke klantenservice en advies
- Extra korting bij grote aantallen mogelijk: Neem contact op
Beschrijving

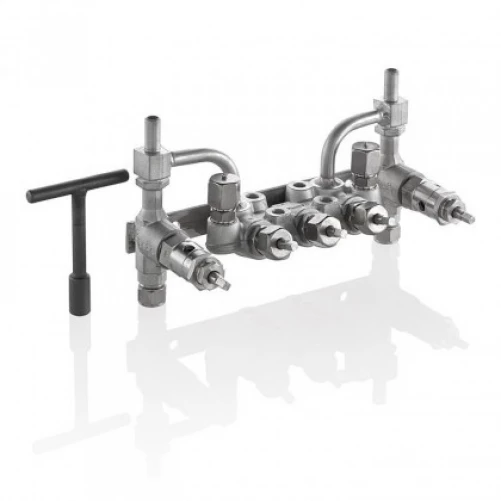

AS-Schneider F Series Manifold-Combinations are designed, manufactured and tested with respect to the relevant standards applicable in this field. The manifold-combinations are for direct mounting according to DIN EN 61518 (IEC 61518). The standard inlet connections are butt weld ends and the outlet (Blowdown) connections are provided with tube fittings. The test connections are provided with M 20 x 1.5 male threads c/w sealing cap. Manifold-Combination means the welded assembly of a 3 Valve Manifold and 2 Blowdown Valves. Using a separate installation the manifold body is not heated during the Blowdown operation, therefore preventing an inadmissible heating of the Manifold / Transmitter Interface.
The manifolds are provided, as standard, with internal stem threads, the Blowdown Valves with external stem thread. The valves are operated by a removable T Handle Key.
Bore Size: 0.315 (8 mm)
Extra informatie
| Gewicht | 1 kg |
|---|---|
| Materiaal | 1.0460, 1.4571 |
| Merk | AS-Schneider |
| Types | 14 x 2, 5 IEC 61518 types A |
| Remarks | DN 8 |
