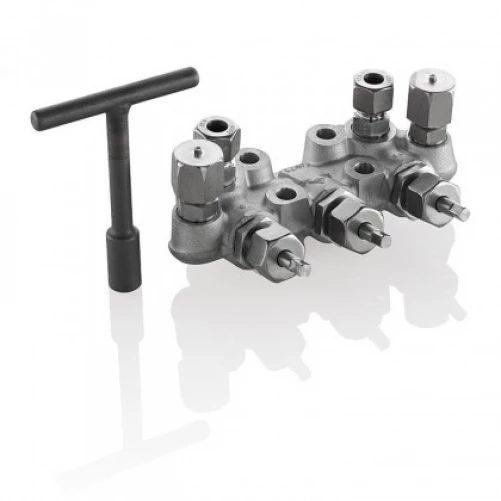

AS-Schneider F Series 3 Valve Manifolds are designed, manufactured and tested with respect to the relevant standards applicable in this field. The manifolds are for direct mounting according to DIN EN 61518 (IEC 61518). The standard inlet connections are G 3/8 female threaded with fitted tube fittings or butt weld ends. The below mentioned manifolds are provided with test port connections M20 x 1.5.
The manifolds are provided, as standard, with internal stem threads. The valves are operated by a removable T Handle Key.
Bore Size: 0.315″ (8 mm)
