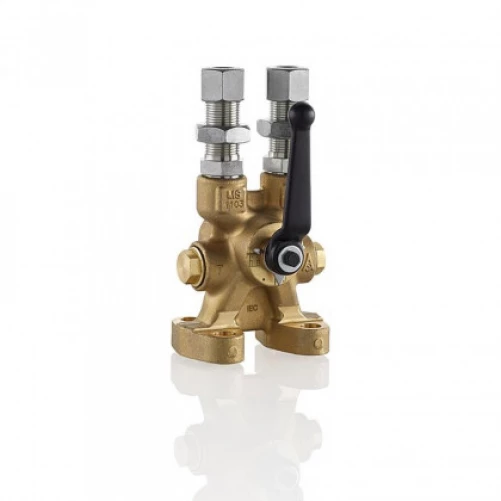

Low-Pressure Multi-Way Cocks

AS-Schneider Low-Pressure Multi-Way Cocks are designed, manufactured and tested with respect to the relevant standards applicable in this field. The multi-way cocks are for direct mounting according to DIN EN 61518 (IEC 61518). The standard inlet and test connections are G 3/8 female threaded. The multi-way cocks are often supplied with bulkhead connectors at the inlet, the test connections are plugged with a pipe plug. For a perfect installation of the multi-way cocks it is ideal to use the bulkhead connector tube fittings which fit to the mounting bracket.

Just quarter turn operations are sufficient to switch from one position to the next one – operating errors are therefore minimized. The multi-way cocks are operated by a mounted handle.

Bore Size: 0.197″ (5 mm)

Gewicht	1 kg
Materiaal	Brass I Messing
Types	Bulkhead Connector 12S IEC 61518 types A, G 3/8 IEC 61518 types A, Hose Nozzle 12 IEC 61518 types A
Merk	AS-Schneider
