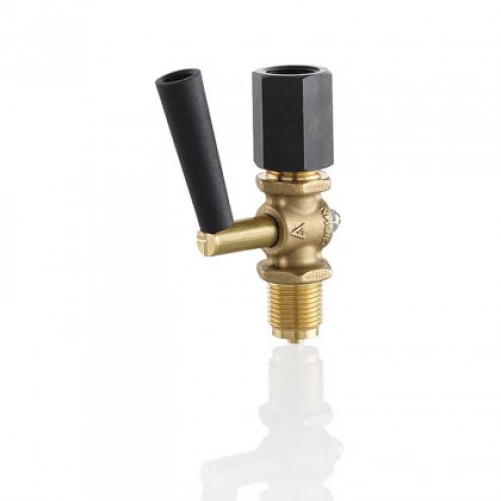

Gauge Cocks Male Thread x Adjusting Nut
- Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
- Persoonlijke klantenservice en advies
- Extra korting bij grote aantallen mogelijk: Neem contact op
Beschrijving
AS-Schneider Gauge Cocks are basically designed, manufactured and tested according to DIN 16261, DIN 16262 and DIN 16263. According to above standards the cocks are applicable for a max. allowable (Working) Pressure (PS) of 6 – 16 bar (87 – 232 psi) and a max. allowable Temperature (TS) of 50°C (122°F) for liquids, gas or vapors. Originally the AS-Schneider Gauge Cocks were designed for a max. allowable (Working) Pressure (PS) of 25 bar (363 psi) for the G 1/2 models.
Operating Positions are marked on top of the plug.
Extra informatie
| Gewicht | 1 kg |
|---|---|
| Materiaal | 1.4571, Brass (AP) I Messing, Brass I Messing |
| Types | 5, G 1/2, G 1/4, M 20 x 1 |
| References | DIN 16262 types A, DIN 16262 types B, Test Flange I Prüfflansch 60 x 25 x 10, Test Flange I Prüfflansch Ø 40 x 5 |
| Merk | AS-Schneider |
