Fluidwell F Series – F126-EG Intrinsically Safe – Flow Computer
With temperature and pressure compensation for corrected gas volume.
- Calculates compensated flow rate, total and accumulated total.
- Displays actual line pressure and temperature.
- Analog output signal reflecting the corrected flow rate.

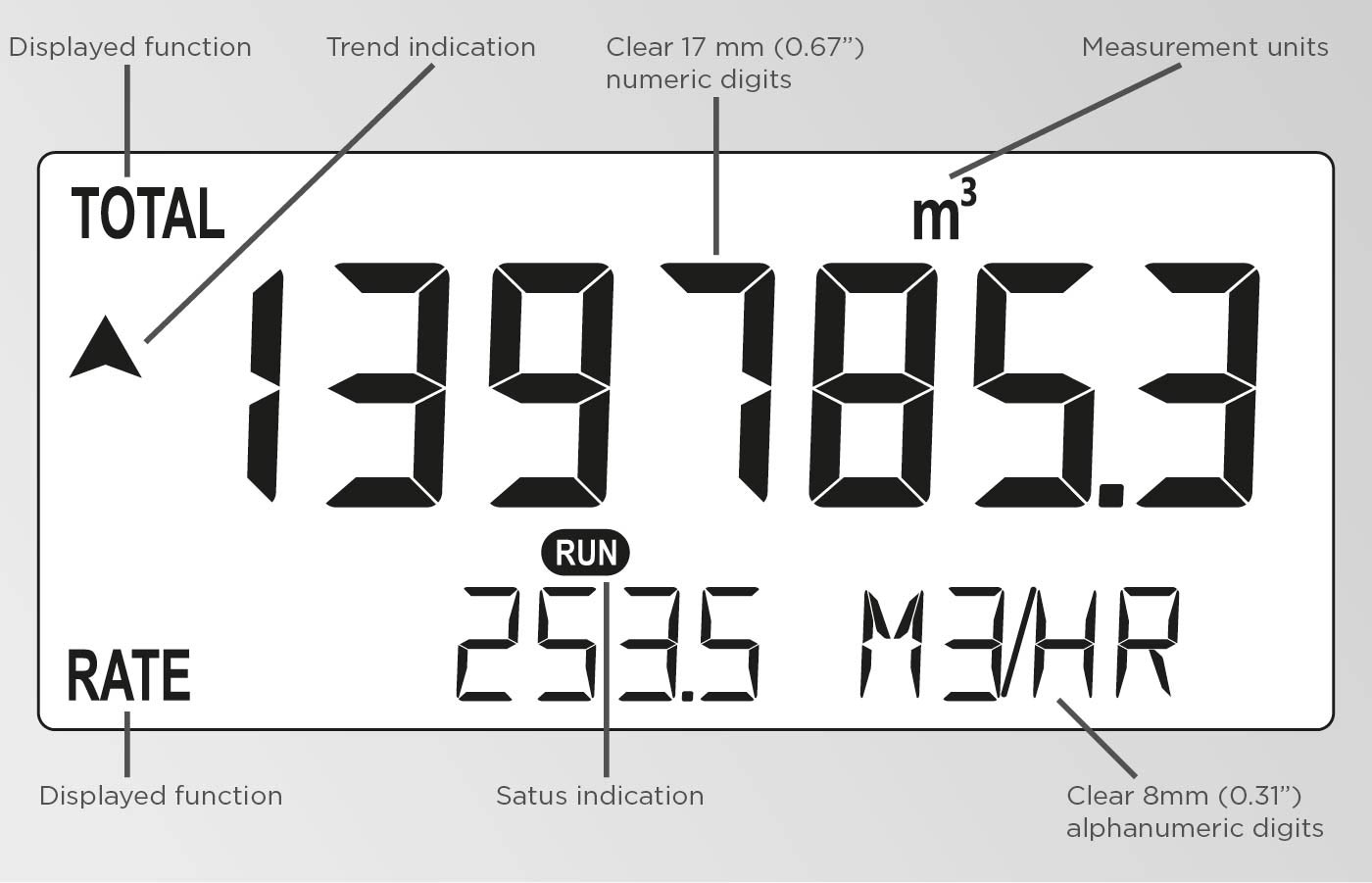

- Displays total and flow rate simultaneously.
- Flow rate: seven 8mm (0.31″) digits.
- Total – resettable: seven 17mm (0.67″) digits.
- Accumulated total – not resettable: eleven 8mm (0.31″) digits.
- Temperature: six 17mm (0.67″) digits.
- Pressure: six 17mm (0.67″) digits.
- Engineering units for flow rate, total, temperature and pressure on the display.
- LED backlight.
- Intrinsically safe according ATEX and IECEx.
- GRP, Aluminum or high grade stainless steel enclosure.
- Auto backup of settings and running totals in EEPROM memory.
- Ambient temperature: -40°C to +80°C (-40°F to 176°F).
- 96.42% heeft een goede tot zeer goede ervaring met SENSORS.NL
- Persoonlijke klantenservice
- Ruim assortiment met een breed scala aan topmerken
- Voor aantallen een extra korting nodig? Neem dan contact met ons op
The F126-EG flow computer has been developed to calculate corrected gas volume at normal conditions. The corrected volumetric flow is calculated by measuring the uncorrected volumetric flow, actual line temperature and pressure which are processed with the equations stored in the flow computer. A compressibility factor can be set to approach a real gas behavior. The reference conditions can be defined as desired (e.g. 15°C or 60°F and 1.013 bar).
The display shows the compensated flow rate, total, accumulated total and the actual line temperature and pressure. On-screen engineering units like Nm³ are easily configured from a comprehensive selection.
Advantages
- Robust aluminum or stainless steel 316L field enclosure (IP66, IP67 / NEMA Type4X) .
It is so rugged, a truck can even stand on it! - Intrinsically Safe available – ATEX and IECEx approval for gas and dust applications.
- Familiar easy operation with the Fluidwell “Know one, know them all” configuration structure, saving time, cost and aggravation.
- Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.
