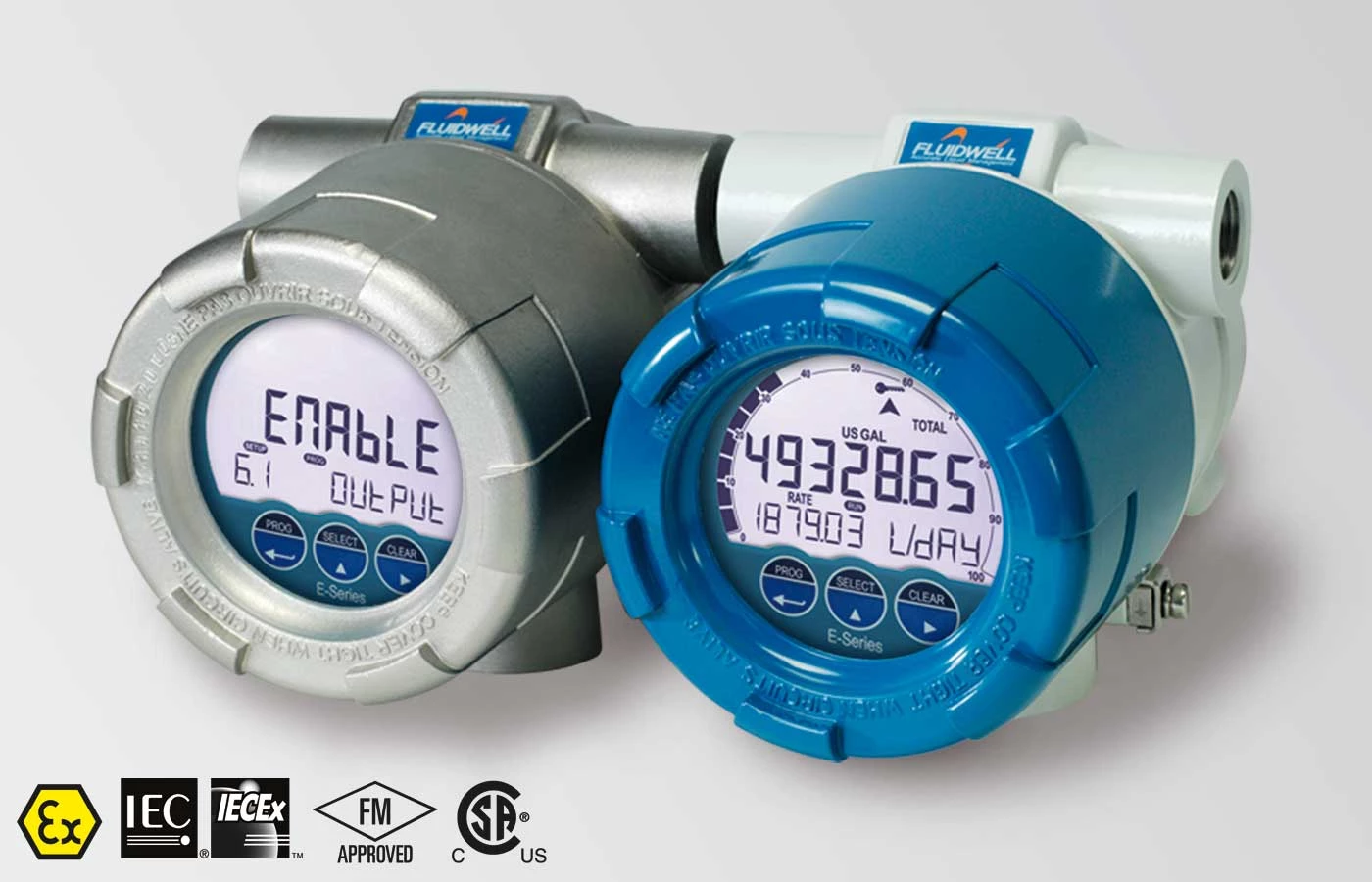

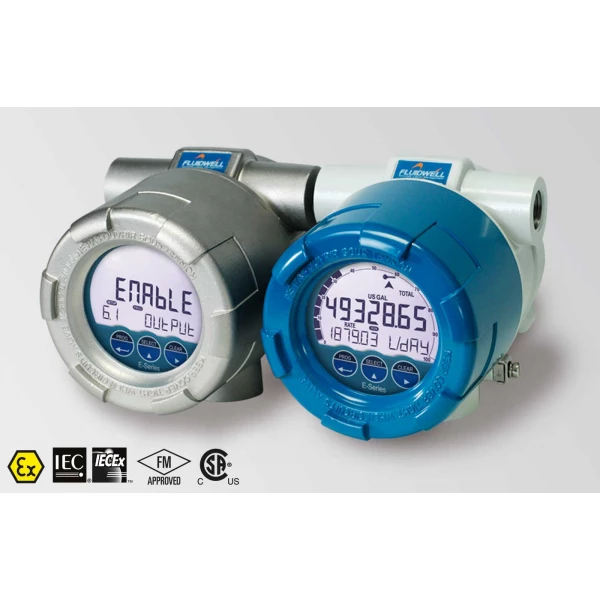

Fluidwell E Series – Explosion proof – Flow rate Indicator / Totalizer

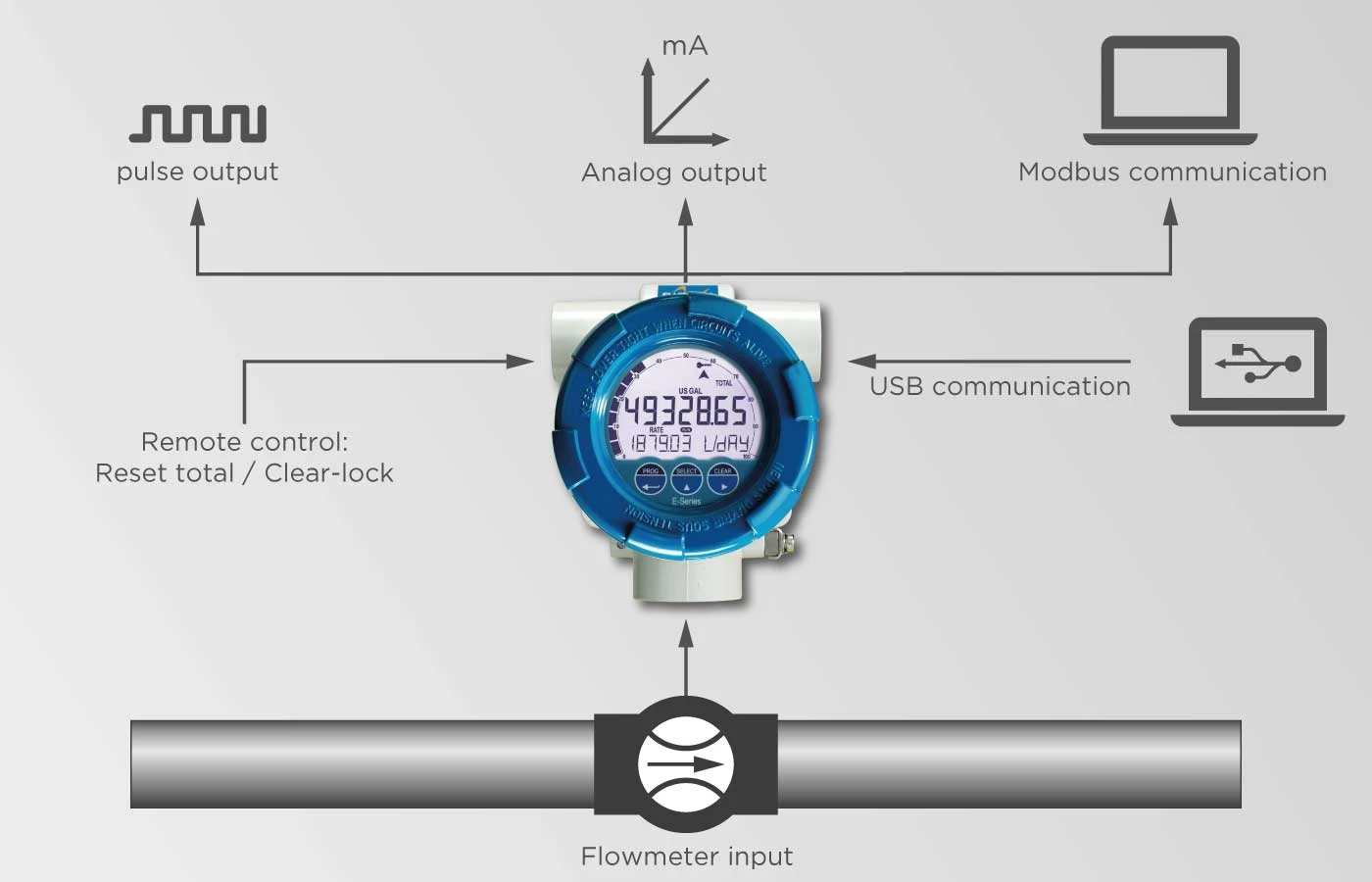

With analog and pulse signal outputs.

Explosion proof according ATEX, IECEx, FM and CSA C-US.
Aluminum or high grade stainless steel Ex d enclosure.
Easy installation with the spacious chamber and plug & play connectors.
Cost saving with an easy to install, 1” NPT thread for direct flowmeter mounting.

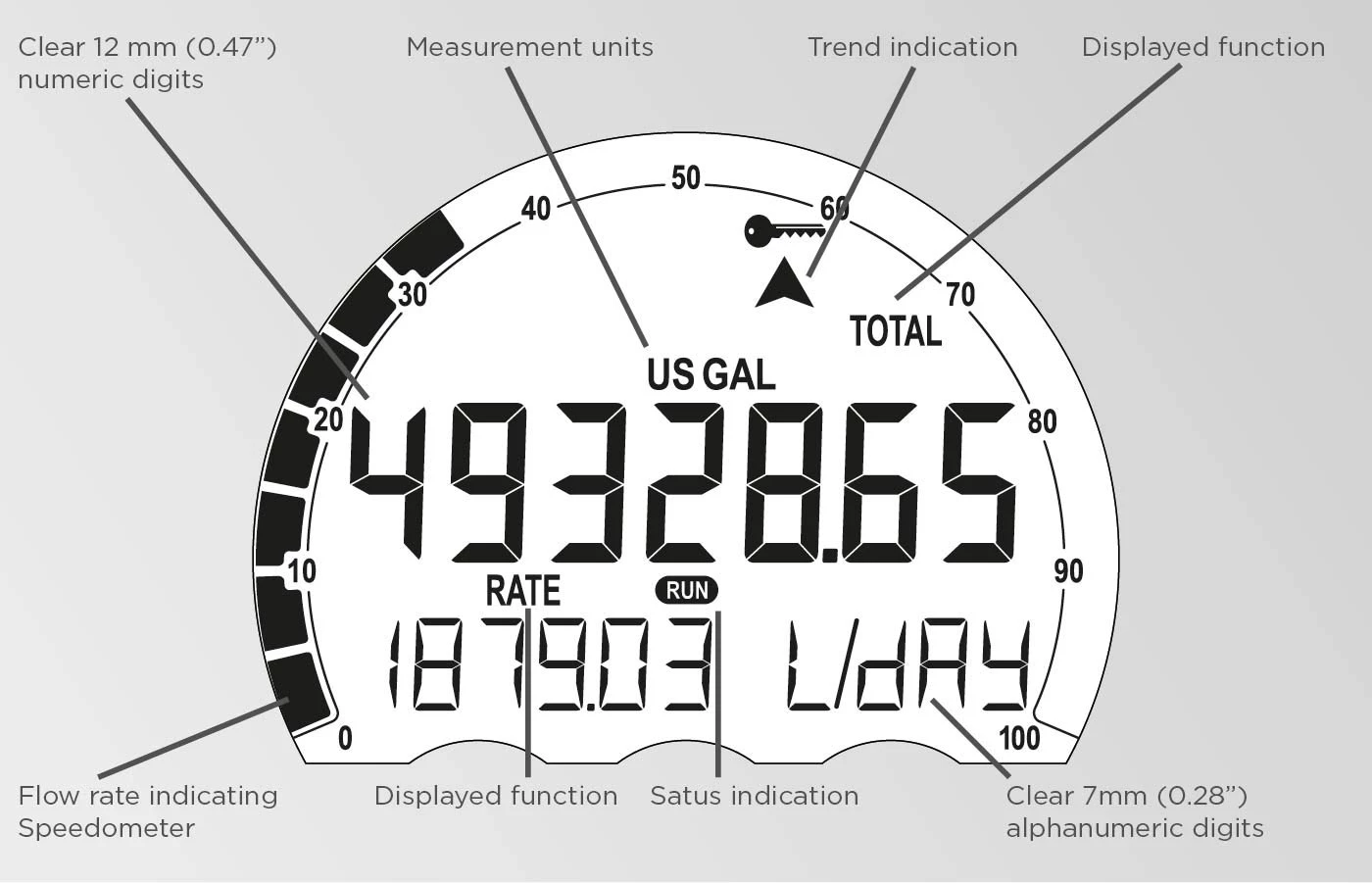

Key information at a glance as the display shows flow rate, total, measuring units and a flow rate indicating speedometer.
Easy K-factor and engineering unit configuration for volumetric or mass.
7 digit flow rate / total and 11 digit accumulated total.
Bright LED backlight.
Current day total (Daily total), previous day total (both non-resettable) and 15 historical day totals can be displayed.
Data logging of flow rate, total and accumulated total.
Easy configurable via PC with free downloadable remote configuration tool and special communication cable (ACE01/02/06/07).
Auto backup of settings and running totals.
Ambient temperature: -40°C to +70°C (-40°F to 158°F).

Productinformatie en datasheets →

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Toevoegen aan offerte

Categorieën: Displays, Fluidwell, Fluidwell E-series, Merken, OPBOUW

Beschrijving

The E110 is a popular model in our range of explosion proof flow rate indicators / transmitters, complete with pulse and analog output signals. The E-series is distinguished by its high quality manufacturing and its functionality driven European design. We believe, it is not just about fulfilling the requirements for explosion proof, but it is about safety during daily operation.

Ruggedness and reliability is where Fluidwell stands for and it is now available in a comprehensive well designed and purpose driven explosion proof flow rate indicator / totalizer.

Advantages

Saves time and improves flexibility with the through-glass keypad: no need to open the front cover.
Familiar easy operation with the Fluidwell “Know one, know them all” configuration structure, saving time, cost and aggravation.
Durable high-grade stainless steel 316L Ex d enclosure withstanding extreme (maritime) conditions.
