5 Valve DN5 Manifold S541.38.235
- Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
- Persoonlijke klantenservice en advies
- Extra korting bij grote aantallen mogelijk: Neem contact op
Beschrijving

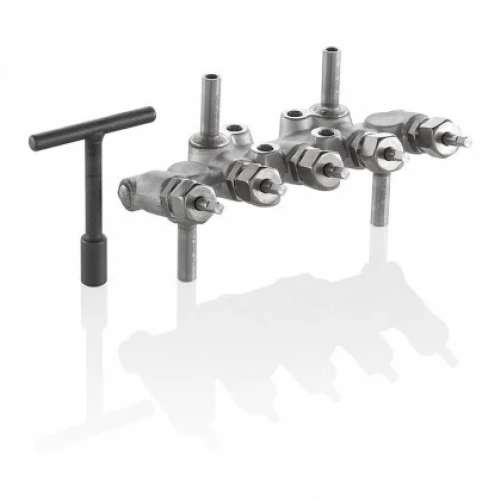

AS-Schneider F Series 5 Valve Manifolds are designed, manufactured and tested with respect to the relevant standards applicable in this field. The manifolds are for direct mounting according to DIN EN 61518 (IEC 61518). The standard inlet and outlet connections are G 3/8 female threaded with fitted tube fittings or butt weld ends.
The manifolds are provided, as standard, with internal stem threads. The valves are operated by a removable T Handle Key.
Bore Size: 0.197″ (5 mm)
Extra informatie
| Gewicht | 1 kg |
|---|---|
| Materiaal | 1.0460, 1.4571 |
| Merk | AS-Schneider |
| Types | 12S IEC 61518 types A, 14 x 2, 5 IEC 61518 types A |
| Remarks | DN 5 |
