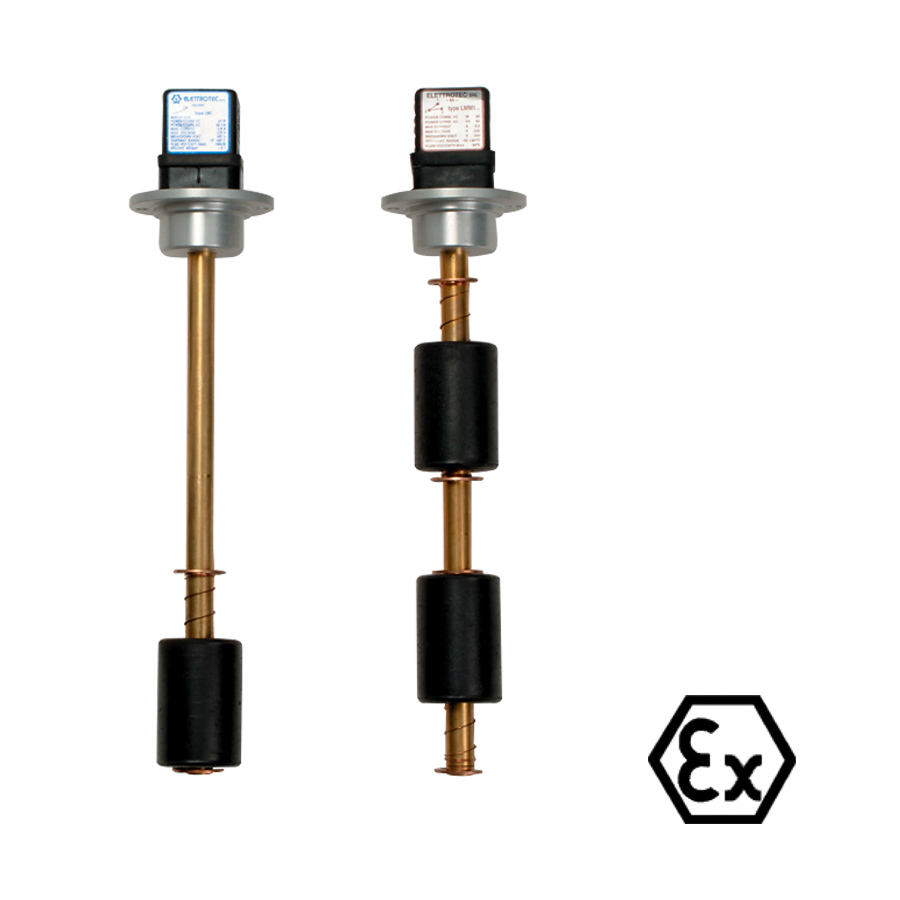

LM1 / LM2 / LMM1 FA – TA XIA – Level switches with stop ring intrinsic safety execution

LM1 / LM2 / LMM1 FA – TA XIA – Level switches with stop ring intrinsic safety execution

Productinformatie en datasheets →

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Adicionar à citação

SKU: Item-elettrotec-101 Categoria: Elettrotec Etiquetas: Elettrotec, Intrinsically Safe ATEX Level Switches, Level

Descrição

Material da carroçaria	Latão
Float material	NBR
Mounting material	Anodized aluminium
Actuation point	LM1 – 1 actuation point contact NC/NO / LM2 – 1 actuation point contact SPDT / LMM1 – 2 actuation points NC/NO
Montagem	FA – Flange Ø 52 / TA – Thread G1″
Ligação eléctrica	DIN 43650 – PG09 – IP65
Input capacity	Ci ~= 0
Input induttance	Li ~= 0
Input current	Ii 215mA
Max. input power	Pi 0,75W
Input voltage	Vi 30V
Gama de temperaturas	-30°C +60°C
Pressão máxima	10 bar
Fluid specific gravity	0.7 kg/dm³
Fluid viscosity	150 cSt
Certification	ATEX – II 1 G Ex ia IIC T6
Size	Max. lenght 1500 mm
Safety parameters	Intrinsic
Note	Current and power values refer to a single switch connection or to the sum of the whole connected switches
