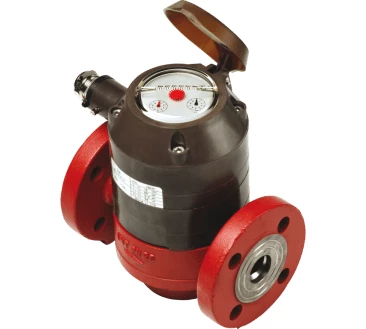

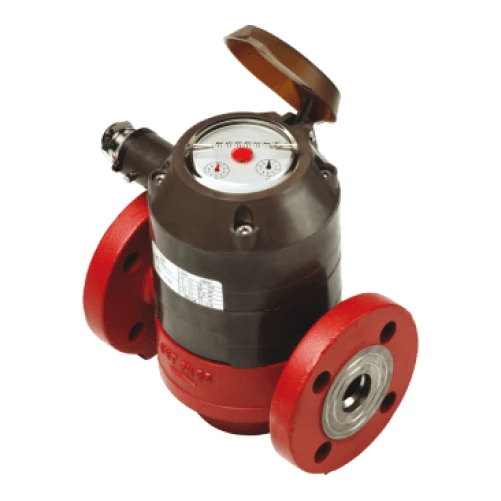

VZOA 15 Aquametro Oil Meter – (10-400 Max 600 litre/hr) Pulse Output = 1 Litre/Pulse Reed Switch

Name: VZOA 15 Aquametro Oil Meter - (10-400 Max 600 litre/hr) Pulse Output = 1 Litre/Pulse Reed Switch
SKU: VZOA 15 FL 130/25-RV 1
Availability: PreOrder

€1.135,00 (€1.373,35 incl. BTW)

VZOA 15 Contoil Oil Meter – (10-400 Max 600 litre/hr)
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 1 Litre/Pulse Reed Switch
15mm PN25 Flanges (JIS and ANSI no additional cost)
Product Code: 92301

Productinformatie en datasheets →

Beschikbaar via nabestelling

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Toevoegen aan offerte

Artikelnummer: VZOA 15 FL 130/25-RV 1 Categorieën: Aquametro, Brandstofverbruik, Flowmeters, Mechanische flowmeters Tag: Aquametro

Beschrijving

VZ0A 15 Contoil Oil Meter – (10-400 Max 600 litre/hr)
Ring Piston or Oscillating Piston Type
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 1 Litre/Pulse Reed Switch
15mm PN25 Flanges (JIS and ANSI no additional cost)
Max Temp 130°C
Max Pressure PN25
Positive Displacement / Low Pressure Drop Design
Accuracy ± 0.5% of actual value
8 Digit Totaliser

Product Code: 92301

Specification

VZOA 15 FL 130/25-RV1

CONTOIL® oil meter VZOA 15 FL 130/25-RV 1
Ring piston meter for mineral oil, with rotatable roller counter

Nominal diameter: DN 15 mm
Connection for flanges: DN 15 to DIN 2501
Nominal pressure: PN 25 bar
Installation length: 165 mm
Installation position: horizontal / vertical
Temperature, max: 130 °C
Measuring range (at visc. 1…20 mPa.s): 10…600 l/h
Max. continuous flow Qn: 400 l/h
Max. measuring deviation: ± 0.5% of measured val-ue
Repeatability: ± 0.2%
Smallest readable value: 0.01 l
Registration capacity: 1 Mio l

With RV Reed pulser integrated in register unit
Contact load max.: 48 V AC/DC, 50 mA, 2 W
Pulse value: 1 l
