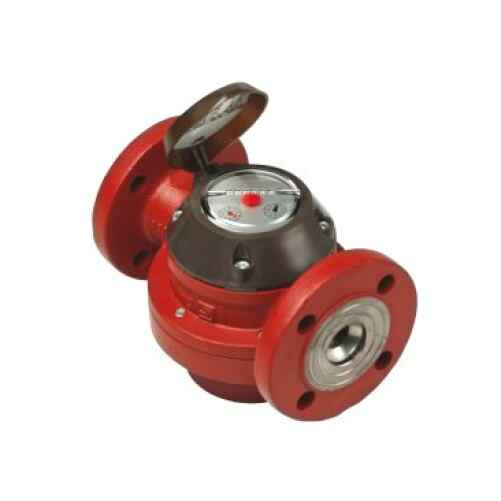

VZO 25 Aquametro Oil Meter – (75-2000 Max 3000 litre/hr) Pulse Output = 1 Litre/Pulse

Name: VZO 25 Aquametro Oil Meter - (75-2000 Max 3000 litre/hr) Pulse Output = 1 Litre/Pulse
SKU: VZO 25 FL 180/40-RV 1
Availability: PreOrder

€2.865,05 (€3.466,71 incl. BTW)

VZO 25 Contoil Oil Meter – (75-2000 Max 3000 litre/hr)
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 1 Litre/Pulse Reed Switch Pulse
25mm Flanged PN40 (JIS and ANSI no additional cost)
Product Code: 92268

Productinformatie en datasheets →

Beschikbaar via nabestelling

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Toevoegen aan offerte

Artikelnummer: VZO 25 FL 180/40-RV 1 Categorieën: Aquametro, Brandstofverbruik, Flowmeters, Mechanische flowmeters Tag: Aquametro

Beschrijving

VZO 25 Contoil Oil Meter – (75-2000 Max 3000 litre/hr)
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 1 Litre/Pulse Reed Switch Pulse
25mm Flanged PN40 (JIS and ANSI no additional cost)
Product Code: 92268
Max Temp 180C
Max Pressure PN40 Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser

Specification

VZO 25 FL 180/40-RV1

CONTOIL® oil meter VZO 25 FL 180/40-RV 1
Ring piston meter for mineral oil, with rotatable roller counter

Nominal diameter: DN 25 mm
Connection for flanges: DN 25 to DIN 2501
Nominal pressure: PN 40 bar
Installation length: 190 mm
Installation position: horizontal / vertical
Temperature, max: 180 °C
Measuring range (at visc. 1…20 mPa.s): 75…3000 l/h
Max. continuous flow Qn: 2000 l/h
Max. measuring deviation: ± 1% of measured value
Repeatability: ± 0.2%
Smallest readable value: 0.1 l
Registration capacity: 10 Mio l

With RV Reed pulser integrated in register unit
Contact load max.: 48 V AC/DC, 50 mA, 2 W
Pulse value: 1 l
