VZF II 25 Contoil Oil Meter – (75-2000 Max 3000 litre/hr)
€1.714,00 (€2.073,94 incl. BTW)
VZF II 25 Contoil Oil Meter – (75-2000 Max 3000 litre/hr)
Digital Display (Rate/Total/Temp/Mass)
25mm Flanged PN25
Product Code: 93726
- Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
- Persoonlijke klantenservice en advies
- Extra korting bij grote aantallen mogelijk: Neem contact op
Beschrijving
VZF II 25 Contoil Oil Meter – (75-2000 Max 3000 litre/hr)
Digital Display (Rate/Total/Temp/Mass)
25mm Flanged PN25
Product Code: 93726
Max Temp 130C
Max Pressure PN25 Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser 4-20mA & Pulse Output
Specification

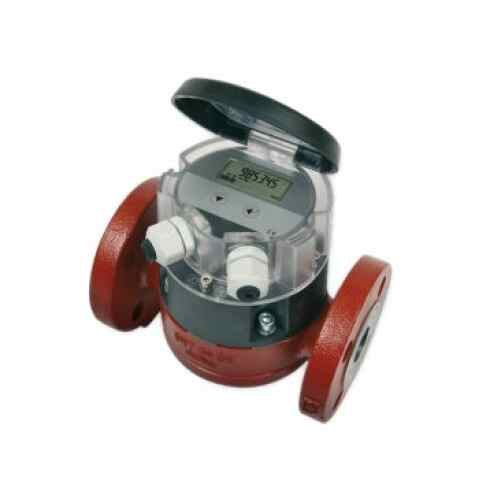

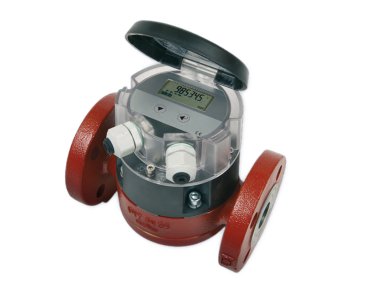

VZF II 25 FL 130/25
CONTOIL® flow meter for mineral oil.
Electronic counter with display
Characteristics:
Display of total volume, resettable
trip volume (up to 8 totalizers,
4 of resettable), flow rate,
temperature, mass and normalized
volume in m3, liters, US gallons or
tons, kilograms and pounds.
Programmable outputs.
Nominal diameter: DN 25mm
Connection flange: DN 25
Nominal pressure: PN 25bar
Installation length: 190mm
Installation position: horiz / vert
Temperature, max.: 130°C
Measuring range: 75…3000l/h
Max. continuous flow: 2000l/h
Max. deviation: ±1% of value
Repeatability: ±0.2%
Registration capacity: 100Mio
LCD display: 8 positions, 8mm high
Outputs: 1 analog and 2 digital
Analog: 4…20mA
Digital Pulse, Frequency, Logic
Nominal voltage: 24V DC
Power supply via 4…20mA: 6…30V DC
Protection class: IP66/IP68/IP69
Ambient temperature: -25…+70°C
