| Technical data | |
| Flow tube | Grilamid (PA-12) (*PES) |
| Float | AISI 329 or PTFE depending on range Note! Other possible wetted metal parts: AISI 316 |
| Connectors | PVC (*AISI 316, PVDF) |
| Seals | Nitrile (*Viton®, EPDM) |
| Connections | NPT/G 1¼” or 1.97” (50 mm) socket |
| Maximum pressure | 145 psi at 68°F (*145 psi at 176°F ) |
| Maximum temperature | 167°F at 29 psi (*248°F at 29 psi) |
| Weight | 36 oz. |
| *Special construction upon request | |

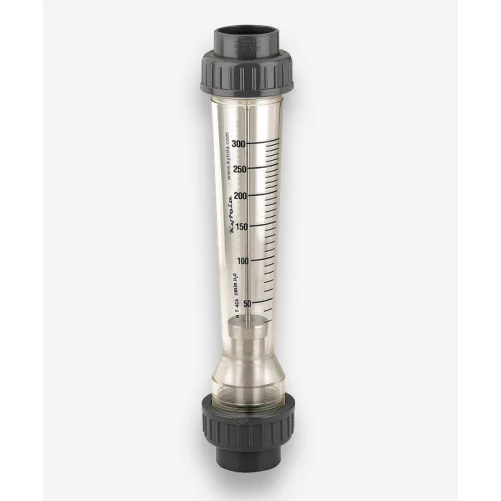

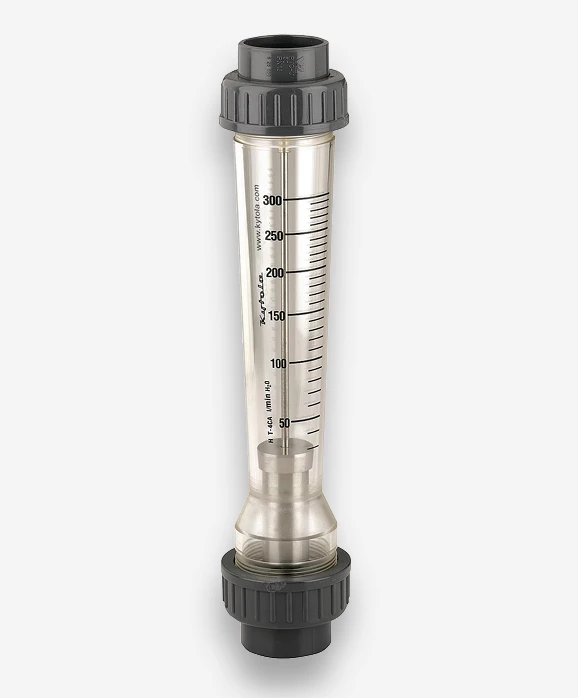

Visuele debietmeter Type: HT | 0,6 – 6,4 m3/uur water PVC 50 mm aansluiting
€243,22 (€294,30 incl. BTW)
- Meetbereik 1,6 – 6,4 m³/uur water
- Aansluiting 50 mm PVC lijmmof
- Max. Druk 10 bar / 20° Celsius
- Max. Temperatuur 50° Celsius / 2 bar
- Materiaal Meetbuis Grillamid TR55 (PA-12-020)
- Vlotter RVS 329
- O-ringen NBR
- Aansluitingen PVC
