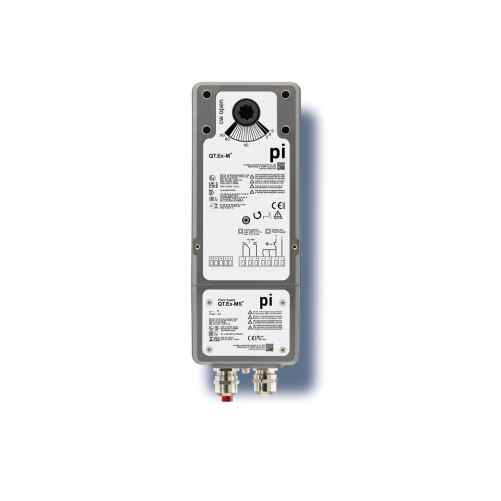

Spring return actuator (85-250V AC)

€1.287,00 (€1.557,27 incl. BTW)

4 tot 6 weken

Art.nr.: QT.Nc-MF03-SL
3 sec, 2-/3-point, 15 Nm, normal conditions
Voltage: 85…250 VAC 50-60 Hz (integrated connection box)
Control: 3-pos / on-off
Spring: app. 3 s
Torque: 15 Nm
Motor: app 15 s / 90°
Switches: 5° / 80° limits switches
Angel of rotation: 95° (5° pre tension)
Square: 12 x 12 mm (hollow shaft)
Power consumption: 5 W / 7 VA hold, 20 W / 30 VA Motor, 30 VA / 2 A sizing of supply
Humidity: 0…95% r.H without condensation
Temperature range: -40…+70°C

5/5 - (1 stemmen)

Gewicht	5 kg
Afmetingen	320 × 120 × 85 cm
