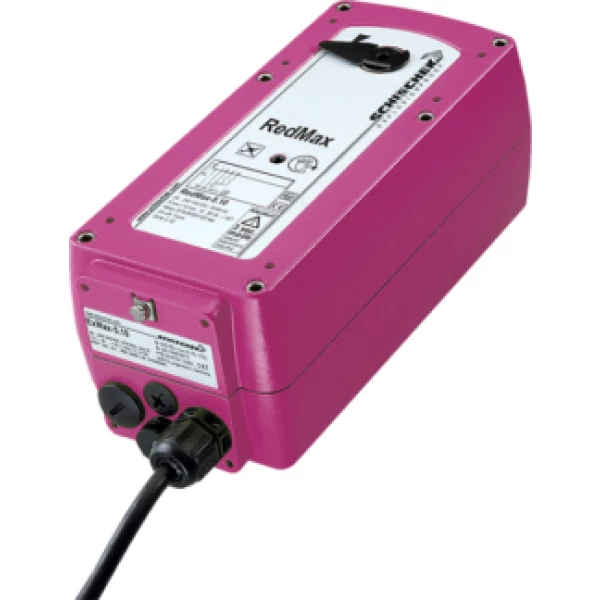

Schischek Veerteruggangaandrijving 15 Nm REDMAX-15-SF1 (S-size)

Name: Schischek Veerteruggangaandrijving 15 Nm REDMAX-15-SF1 (S-size)
SKU: RedMax-15-SF1
Availability: PreOrder

⚠️ Due to the implementation of a new ERP system and production issues, delivery times for Schischek Rotork explosion-proof products are significantly delayed. Please contact us for more information.

€1.723,99 (€2.086,03 incl. BTW)

RedMax-15-SF1 15 Nm 3/15/30/60/120 sec. ≤ 1 sec. On-off 2 x aux switches (5º/85º)

Productinformatie en datasheets →

Beschikbaar via nabestelling

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Toevoegen aan offerte

Artikelnummer: RedMax-15-SF1 Categorie: Schischek Tag: REDMAX-15-SF

Beschrijving

RedMax ATEX gecertificeerde kwartslag aandrijvingen worden ingezet voor o.a. automatisering van luchtkleppen, brand- en rookkleppen, volumeregeling, en voor kogelkranen, smoorkleppen en andere kwartslagarmaturen. Tot 5 verschillende looptijden ter plaatse instelbaar. Robuuste aluminium behuizing, IP66, optioneel in RVS.

Modellen:

RedMax- 8-F1 8 Nm 3/15/30/60/120 sec. ≤ 1 sec. On-off
RedMax-15-F1 15 Nm 3/15/30/60/120 sec. ≤ 1 sec. On-off
RedMax- 8-SF1 8 Nm 3/15/30/60/120 sec. ≤ 1 sec. On-off 2 x aux switches (5º/85º)
RedMax-15-SF1 15 Nm 3/15/30/60/120 sec. ≤ 1 sec. On-off 2 x aux switches (5º/85º)
RedMax- 8-BF1 8 Nm 3/15/30/60/120 sec. ≤ 1 sec. On-off 2 x aux switches (5º/85º) ExPro-TT-connector
RedMax-15-BF1 15 Nm 3/15/30/60/120 sec. ≤ 1 sec. On-off 2 x aux switches (5º/85º) ExPro-TT-connector
RedMax- 5.10 / 5 Nm / 10 Nm 3/15/30/60/120 sec. On-off, 3-pos
RedMax- 15.30 / 15 Nm / 30 Nm 3/15/30/60/120 sec. On-off, 3-pos
RedMax- 5.10-S / 5 Nm / 10 Nm 3/15/30/60/120 sec. On-off, 3-pos 2 x aux switches (5º/85º)
RedMax- 15.30-S / 15 Nm / 30 Nm 3/15/30/60/120 sec. On-off, 3-pos 2 x aux switches (5º/85º)
RedMax- 5.10-Y / 5 Nm / 10 Nm 7,5/15/30/60/120 sec. 3-pos 0…10 VDC, 4…20 mA 0…10 VDC, 4…20 mA
RedMax- 15.30-Y / 15 Nm / 30 Nm 7,5/15/30/60/120 sec. 3-pos 0…10 VDC, 4…20 mA 0…10 VDC, 4…20 mA
RedMax- 5.10-F / 5 Nm/10 Nm 3/15/30/60/120 sec. 3 sec. / 10 sec. On-off, 3-pos
RedMax- 15-F / 15 Nm 3/15/30/60/120 sec. 3 sec. / 10 sec. On-off, 3-pos
RedMax-5.10-SF / 5 Nm/10 Nm 3/15/30/60/120 sec. 3 sec. / 10 sec. On-off, 3-pos 2 x aux switches (5º/85º)
RedMax- 15-SF / 15 Nm 3/15/30/60/120 sec. 3 sec. / 10 sec. On-off, 3-pos 2 x aux switches(5º/85º)
RedMax- 5.10-YF / 5 Nm/10 Nm 7,5/15/30/60/120 sec. 3 sec. / 10 sec. 3-pos 0…10 VDC, 4…20 mA, 0…10 VDC, 4…20 mA
RedMax- 15-YF / 15 Nm 7,5/15/30/60/120 sec. 3 sec. / 10 sec. 3-pos 0…10 VDC, 4…20 mA, 0…10 VDC, 4…20 mA
RedMax- 5.10-BF / 5 Nm/10 Nm 3/15/30/60/120 sec. 3 sec. / 10 sec. On-off, 3-pos 2 x aux switches (5º/85º) ExPro-TT-connector
RedMax- 15-BF / 15 Nm 3/15/30/60/120 sec. 3 sec. / 10 sec. On-off, 3-pos 2 x aux switches (5º/85º) ExPro-TT-connector

5/5 - (1 stemmen)

Extra informatie

Gewicht	3,8 kg
Serie	RedMax
