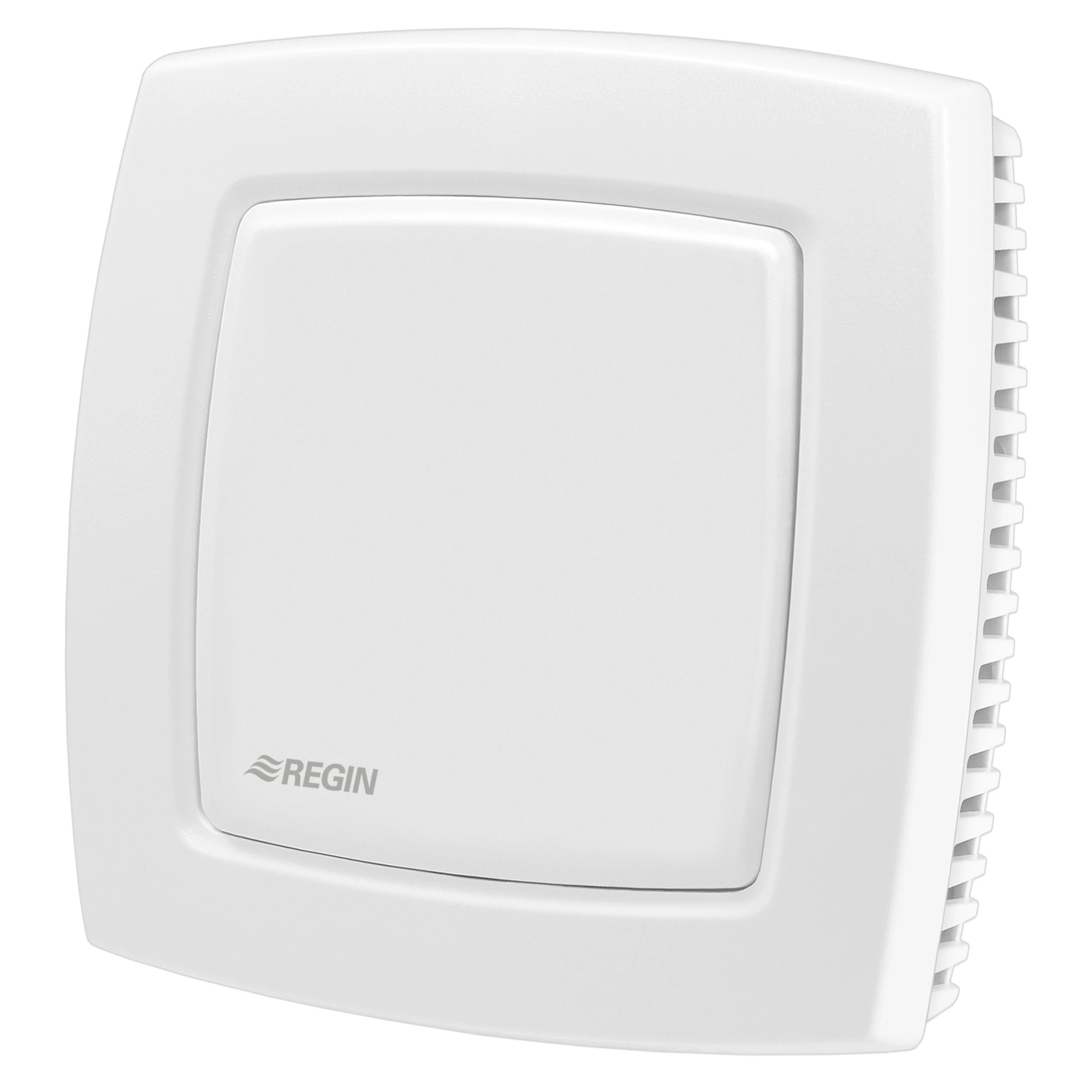

RC-H
Stand-alone controllers for control of heating and cooling in a single zone or roomThe Regio Mini controllers can be configured for a specific application via the display or dipswitches (in most cases, though, the default settings can be applied). The controllers have a built-in temperature sensor. Alternatively, an external temperature sensor can be connected.RC is the basic model in the range. The other models have various functions, indicated by the letters in the product name:D = Display, F = Fan control (3-speed), H = Hidden setpoint, O = Occupancy button, T = 3-point output
- 96.42% heeft een goede tot zeer goede ervaring met SENSORS.NL
- Persoonlijke klantenservice
- Ruim assortiment met een breed scala aan topmerken
- Voor aantallen een extra korting nodig? Neem dan contact met ons op
Specificaties
| Controller Type | Room Control |
|---|---|
| Power Supply | 24V AC |
| Mounting | Wall mount |
| Display | No |
| Power Supply | 24VAC (18…30 V AC 50/60Hz / ), 2.5 VA |
| Dimensions, external (WxHxD) | 95x95x31 mm |
| AI | 1 |
| UI | 1 |
| DI | 1 |
| DI/CI | 1 |
| UO | 2 |
| DO | 1 |
| Colour, cover | RAL9003 |
| Occupancy button | No |
| 3-step fan control | No |
| Setpoint knob | No |
| Hidden setpoint | Yes |
| Display | No |
| Protection class | IP20 |
|---|---|
| Ambient humidity (non-condensing) | 0…90 % RH |
| Storage temperature | -20…70 °C |
| Mounting | Room |
| Weight, incl. packaging | 0.11 kg |
| Analogue inputs type (AI) | PT1000, 0…50°C, 0…10 V |
| Universal inputs type (UI) | PT1000 / DI |
| Condensation inputs type (CI) | Digital input for condensation detector KG-A/1 |
| Universal outputs type (UO) | DO 24 V AC/1A, AO 0…10 V/5mA |
| Accuracy, temperature 1 | ±0.5 °K @ 15…30 °C |
| Material, housing | Polycarbonate, PC |
