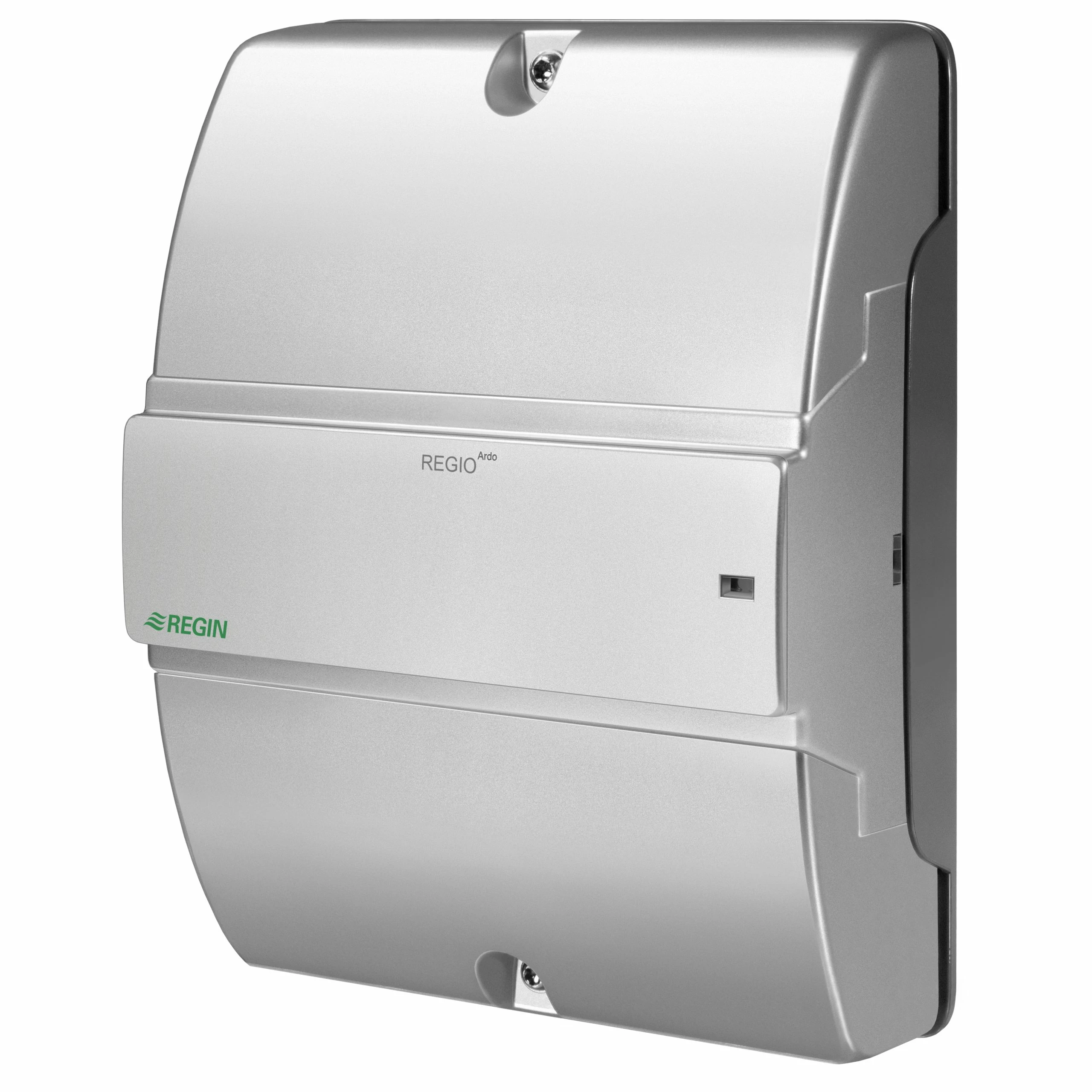

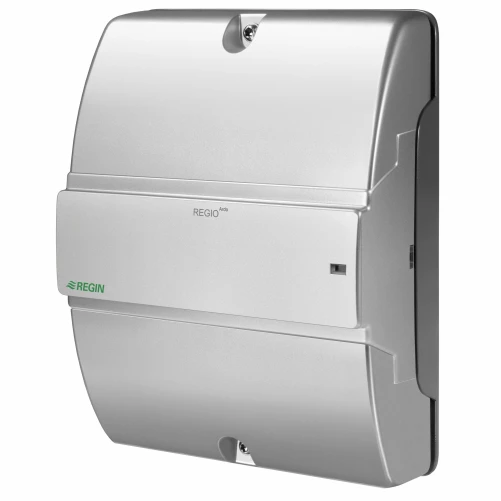

RC-A203W-4-TP

Regio Ardo is a configurable 24 V zone controller. One controller is able to control two different zones.It is quick and easy to commission. The I/O configuration and application setup for a VAV controlled room are predefined and the room units ED-RU are easily connected.The controller is compatible with other Regin products and can easily be integrated into larger systems.The controller can be used in systems with communication, e.g. EXOline, Modbus or BACnet (over RS485 or TCP/IP). It is installed in a ceiling void, on a junction box plate or on a DIN-rail.

96.42% heeft een goede tot zeer goede ervaring met SENSORS.NL

Persoonlijke klantenservice

Ruim assortiment met een breed scala aan topmerken

Voor aantallen een extra korting nodig? Neem dan contact met ons op

Specificaties

Specificaties voor RC-A203W-4-TP
Controller Type	Room Control
Power Supply	24V AC, 24V DC
Mounting	DIN-rail, Wall mount
Display	No
Supported protocols	EXOline, Modbus, BACnet
Port type	Ethernet, RS-485, Display
Power Supply	24VAC (20…28 V AC 50/60Hz / ), 4.0 VA
Number of modules	8.5
RS485 ports	2
Ethernet ports	1
Display ports	1
AI	4
DI	4
CI	2
AO	4
DO	6
