Name: PDTX12-C
SKU: PDTX12-C
Availability: InStock

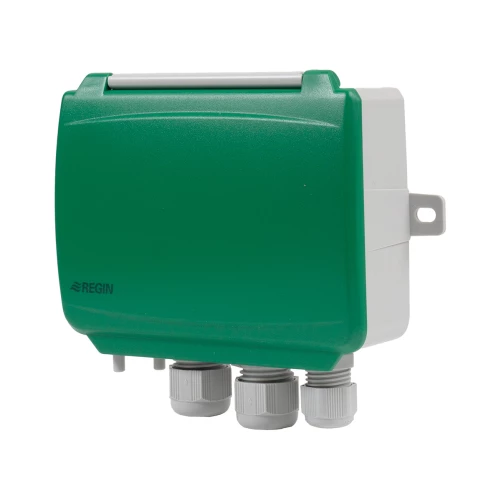

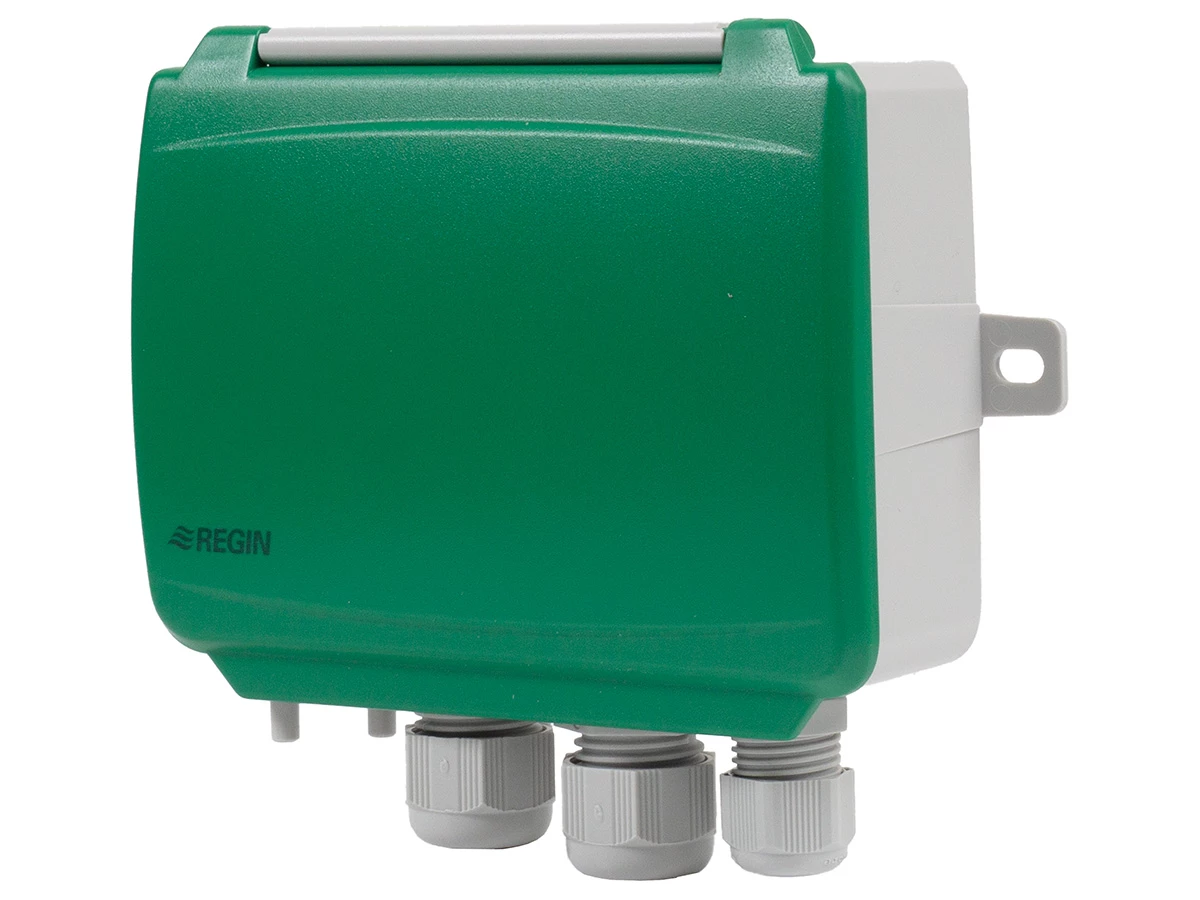

PDTX12-C

€206,00 (€249,26 incl. BTW)

Differential pressure transmitters, 24 V, with two universal inputs, two universal outputs and communication via Modbus.

Productinformatie en datasheets →

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring

Persoonlijke klantenservice en advies

Extra korting bij grote aantallen mogelijk: Neem contact op

Artikelnummer: PDTX12-C Categorie: Transmitters Tag: Transmitters

Specificaties

Specificaties voor PDTX12-C
Power Supply	24VAC/DC (21…27 V AC 50Hz / 21…27 V DC), 4.0 VA
Dimensions, external (WxHxD)	167x46x130 mm
Max Overvoltage on any terminal	Max. ±18 V (referenced to GND) V
Analogue output load impedance 0…10v	Min. 10 kΩ
Pressure, range sensor	0…1250 Pa
Accuracy, pressure sensor 1	≤ 1 % full scale %
Max. allowed diff. Pressure sensor 1	25 kPa
Damping (electronic)	settable 1…12 s
Unit. Range l/s	0…31000
Unit. Range m3/h	0…65000 (factory setting)
Unit. Range CFM [Ft3/min]	0…65000

Specificaties voor Presigo (PDTX…-C) – Differential pressure transmitter with communication
Protection class	IP54
Ambient humidity (non-condensing)	0…95 % RH
Mounting	Wall
Media	Air, non-combustible and non-aggressive gases
Universal inputs type (UI)	PT1000*, Ni1000, 0…10 V, Digital input
Universal outputs type (UO)	Configuration AO (AO / DO)0…10, Configuration DOMosfet outputs, 24 V AC or DC, 2 A continuous,Power output Max. 2A (total UO1 + UO2)
Pressure, range sensor	0…1250 Pa
Cable gland	M16x1,5, M20x1,5
Terminal type	Screw Terminal
Terminal wire size	1.5 mm²
Material, housing	Polycarbonate (PC)
Material, base	Polycarbonate (PC)
