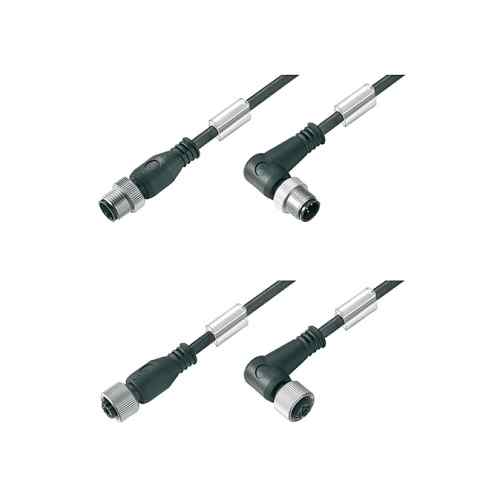

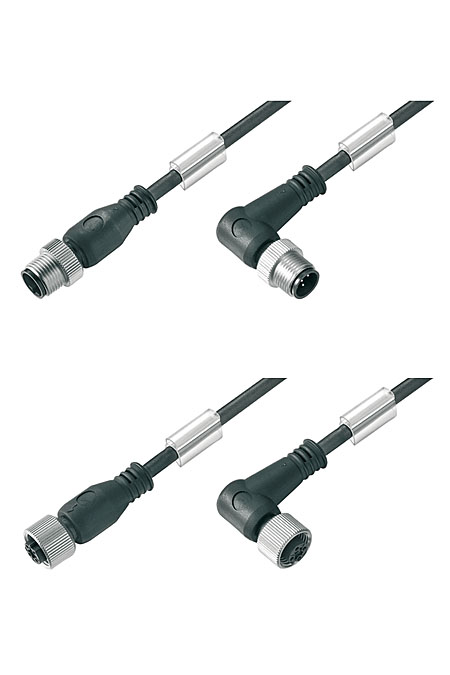

- Connector M12 eenzijdige open sensorkabel
- A-gecodeerd
- Male recht | Male haaks
- Female recht | Female haaks
- 4-polig | 5-polig | 8-polig
- Kabelkarakteristiek: PVC, zwart
- Nominale stroom: 4 A | 2 A (8-polig)
- Nominale spanning: 250 V (4-polig) | 125 V (5-polig) | 30 V (8-polig)
- Beschermingsgraad: IP 67
- Kerndoorsnede: 0,34 mm² | 0,25 mm²
- Contactoppervlak: verguld
- Temperatuurbereik behuizing: -25… + 85 ° C
Müller Connector M12x1 met PVC-kabel
€29,77 - €47,75Prijsklasse: €29,77 tot €47,75
- Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
- Persoonlijke klantenservice en advies
- Extra korting bij grote aantallen mogelijk: Neem contact op
IDeal
Bancontact
Visa
MasterCard
American Express
Sepa
PayPal
Overschrijving
Artikelnummer: Connector M12 + PVC-kabel
Categorieën: Connectoren, Müller IE, Overige & Accessoires
Beschrijving
Technische kenmerken
Extra informatie
| Gewicht | 1 kg |
|---|---|
| Elektrische aansluiting | m12x1 4-polig haaks, M12x1 4-polig recht, M12x1 5-polig haaks, M12x1 5-polig recht, M12x1 8-polig haaks, M12x1 8-polig recht |
| Merk | Müller IE |
| Kabellengte | 10 mtr., 15 mtr, 2 mtr., 3 mtr., 5 mtr. |
| Connection | Male, Female |
Downloads
Product Documents
