KIT-S-75 IRON PUMP 230V AC 80 l/min +MG-80 METER + SUPPORT TYPE

€470,00

Options

Wissen

Actuele voorraadstatus checken? Neem dan contact met ons op of maak gebruik van de live chat.

Waarom kopen bij Sensors.nl:

Artikelnummer: 33290-CF00000 Categorieën: Gespasa, Meters Tag: Meters

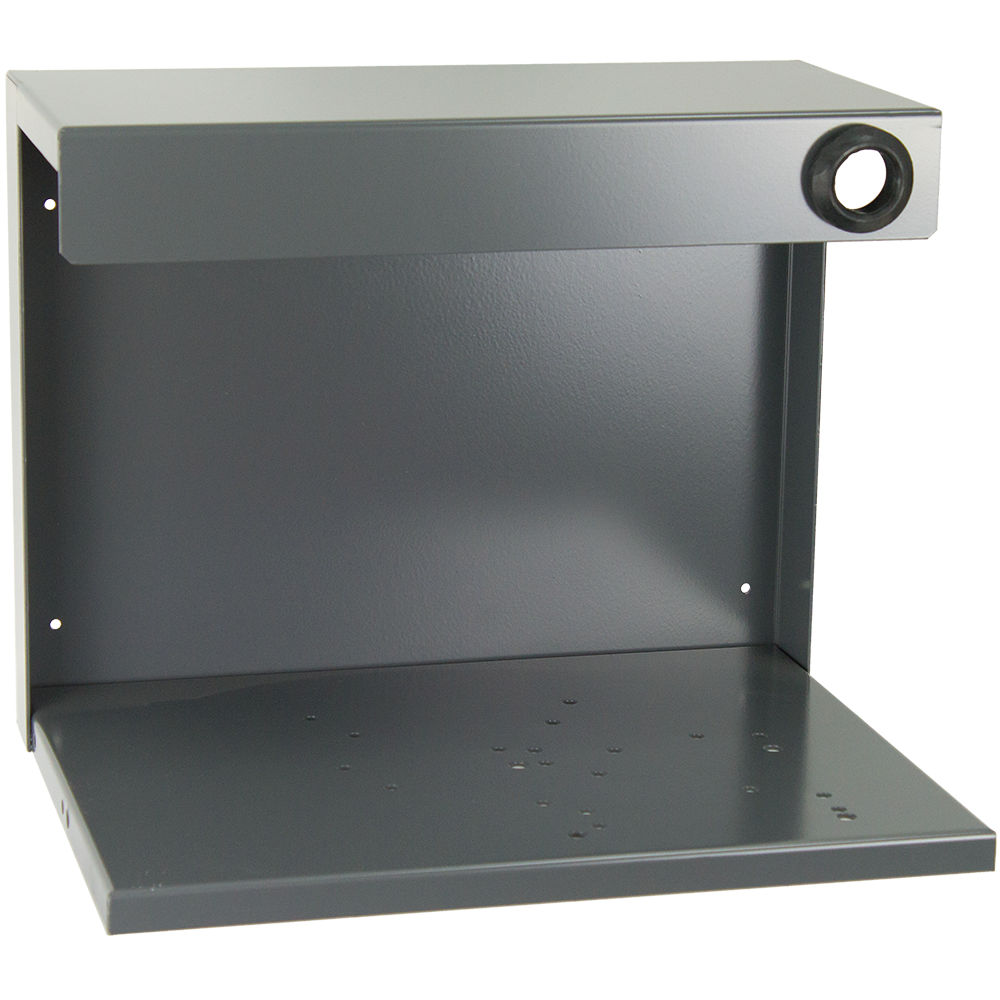

KIT-S-75 Iron 230V AC 80 l/min +MG-80 meter + Universal Support

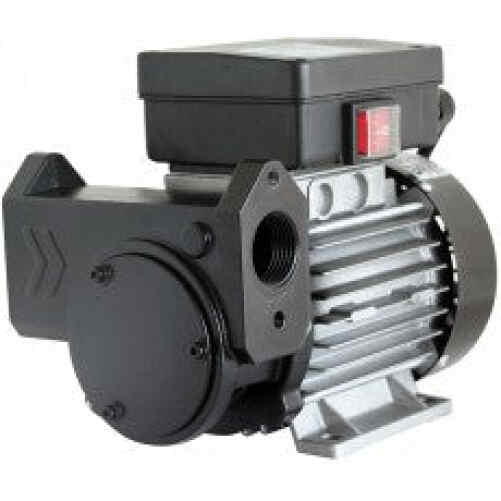

Iron 75 230 VAC

Self-suction – self-priming. Eccentric of self-adjusting blades
With recirculation bypass
Suction: 2.7 m · Delivery: 30 m
Priming pipe suction: 5 m
Free flow: 75 l/min
Consumption: 1.9-4.5 A
Motor: 0.5 kW 230 VAC self-ventilated 50/60 Hz single-phase with thermal protector
S1 Continuous duty
IP-55 Protection
3,000 rpm
Connection through F1″ (BSP) threads and flanges
It has built in a cleaning steel filter of 350 µm (micron).
ON/OFF luminous switch with IP-55 protection
3 m electric cable with homologated plug
Anti-rust treatment

Size and weight (approx.):

———————————————————————————-

MG – 80 Mechanical Meter

Fireproof measuring chamber with oscillant disc
Flow: 15-90 l/min
Accuracy: ±1 %
Partial indicator of 3 digits and totalizer of 6 digits
Maximum operation pressure: 3,5 bar
Maximum temperature: 60 ºC
Minimum temperature: -10 ºC
Polyamide + Fibreglass housing
Connection 1″ GAS (BSP) with 3 inlets and 2 outlets
It is supplied with 2 additional Male/Female 1″ GAS (BSP) adapters (other threads under order). The 1″ GAS (BSP) red adapter has built-in the filter-sieve of 350 µm (micron).
It is suitable for hydrocarbon liquid (please, consult other liquids).
For private use, not suitable for fiscal operations

Size and weight (approx.):

Beoordeel dit product

Options	Base No> 4, Universal Support
Product type:	Fuel Dispensing Kit
Vendor:	Gespasa Shop – International Fuel Equipment and Services
Style:	Base No> 4, Universal Support
Product sku:	33290-CF00000
Weight:	15.0 kg
