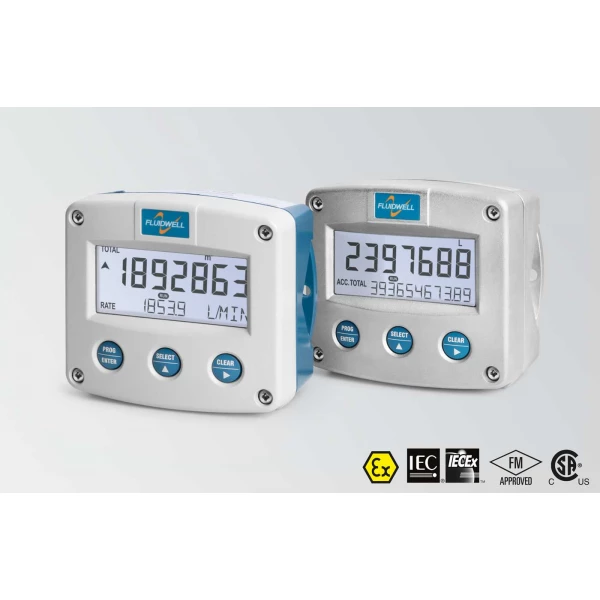

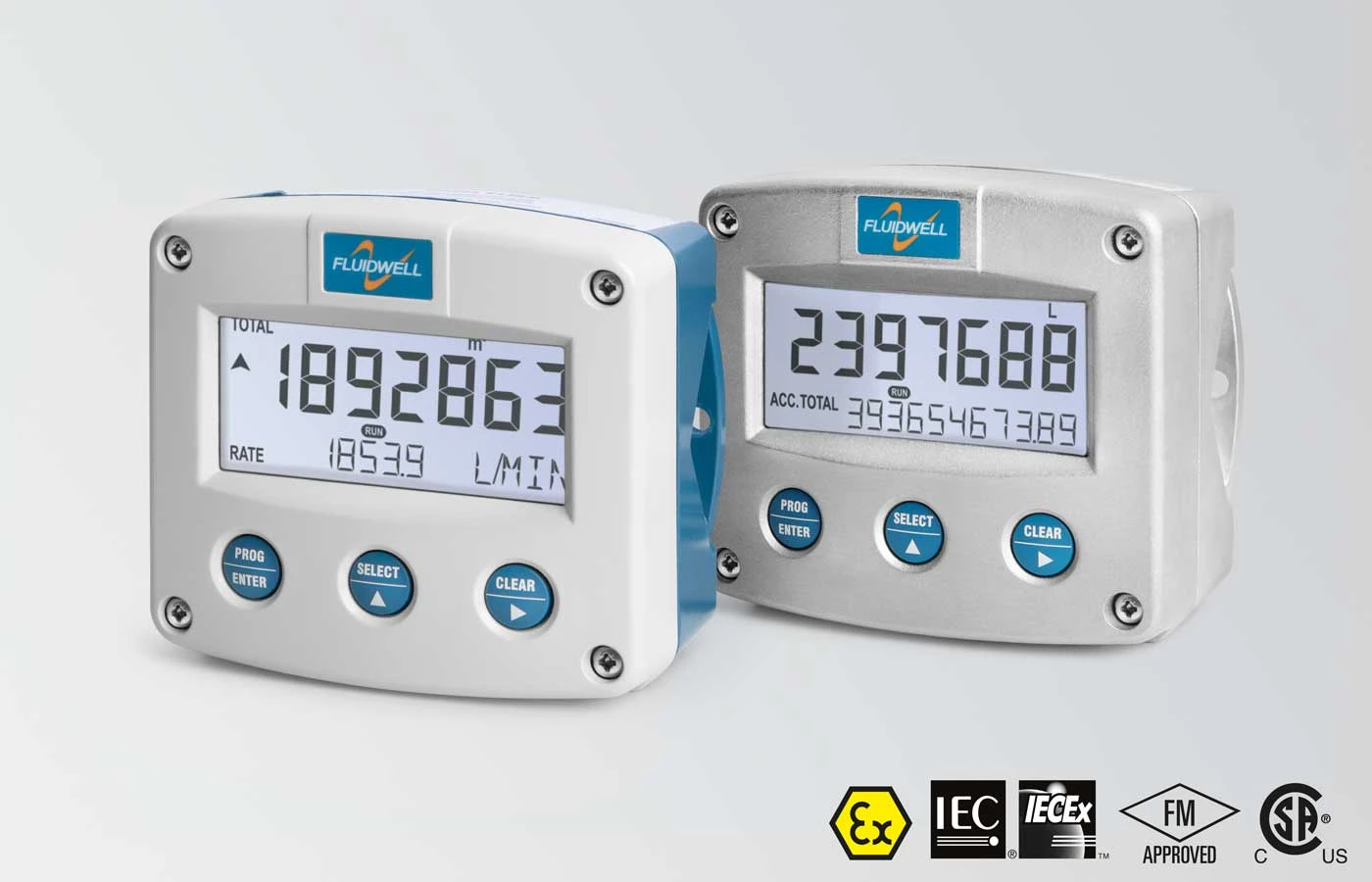

Fluidwell F Series – F014 Intrinsically Safe – Flow rate Indicator / Totalizer

With pulse output.

Scaled pulse output reflecting the accumulated total.
Displays total and flow rate simultaneously.
Large digit selection for flow rate or total.

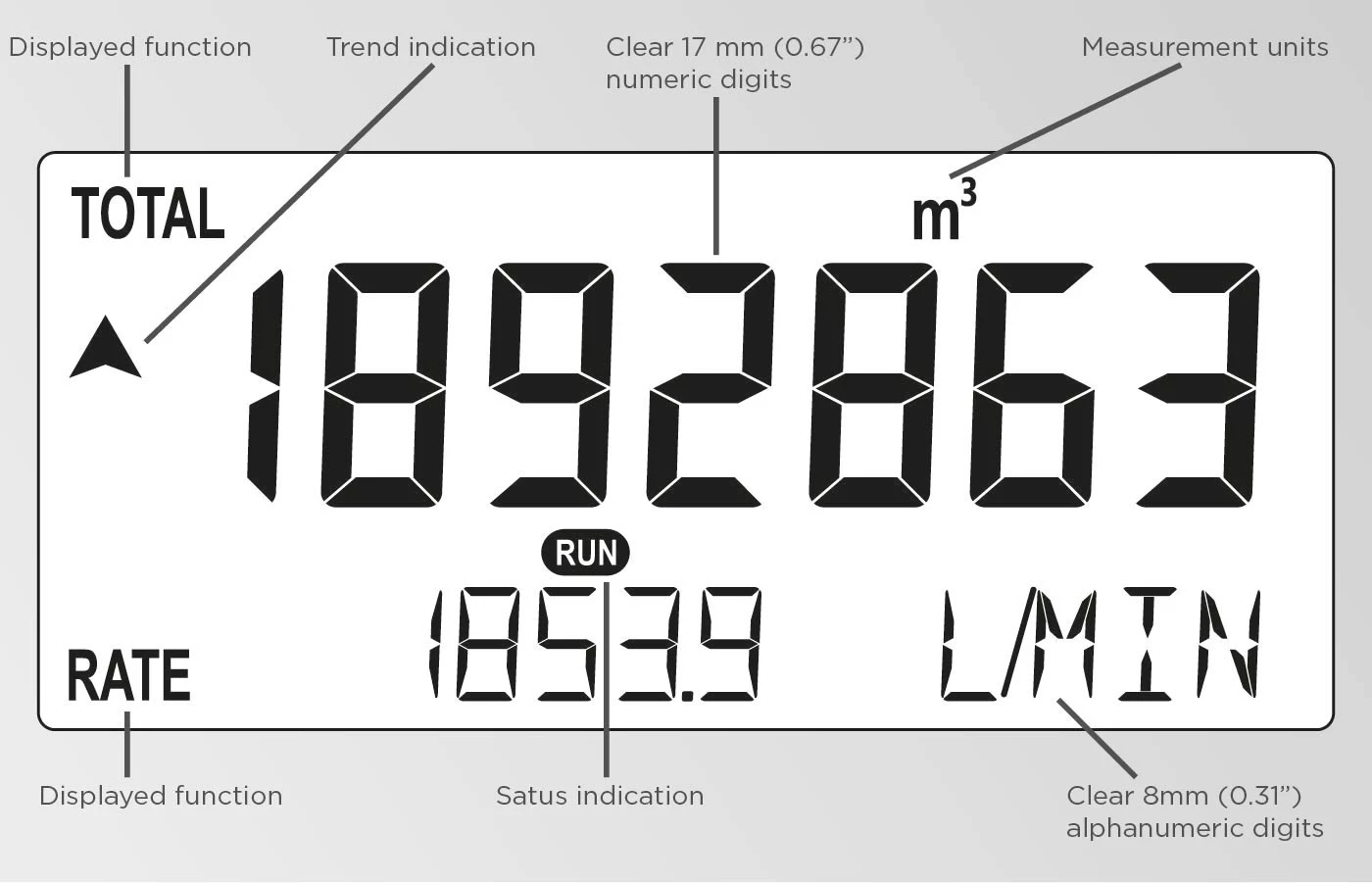

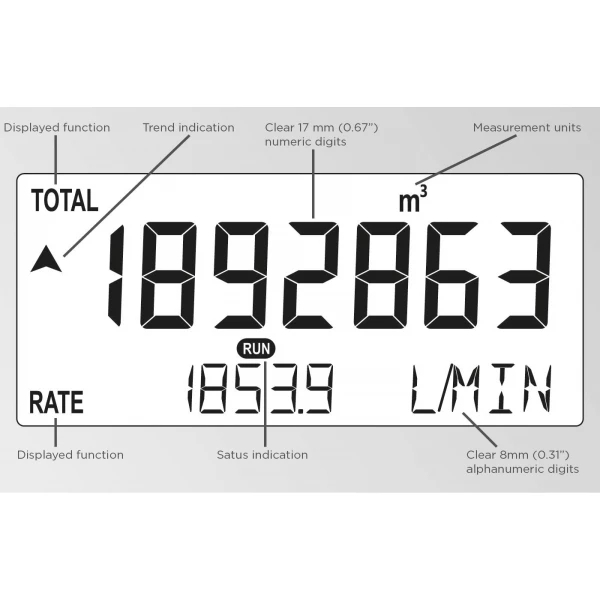

Flow rate: seven 17mm (0.67″) or 8mm (0.31″) digits.
Total – resettable: seven 17mm (0.67″) digits.
Accumulated total – not resettable: eleven 8mm (0.31″) digits.
Separate engineering units for flow rate and total.
Selectable on-screen engineering units for flow rate: mL, L, m³, mg, g, kg, ton, GAL, bbl, lb, cf, REV, scf, Nm³, NL, P or no unit.
Selectable on-screen time units for flow rate: /sec, /min, /hour or /day.
Selectable on-screen engineering units for total: ml, L, m³, GAL, USGAL, kg, lb, bbl or no unit.
LED backlight with adjustable intensity.
Intrinsically safe according ATEX, IECEx, FM and CSA C-US.
GRP, Aluminum or high grade stainless steel enclosure.
Auto backup of settings and running totals in EEPROM memory.
Easy configuration with clear alphanumerical display.
Ambient temperature: -40°C to +80°C (-40°F to 176°F).

Productinformatie en datasheets →

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Toevoegen aan offerte

Categorieën: Displays, Fluidwell, Fluidwell F-series, Merken, OPBOUW

Beschrijving

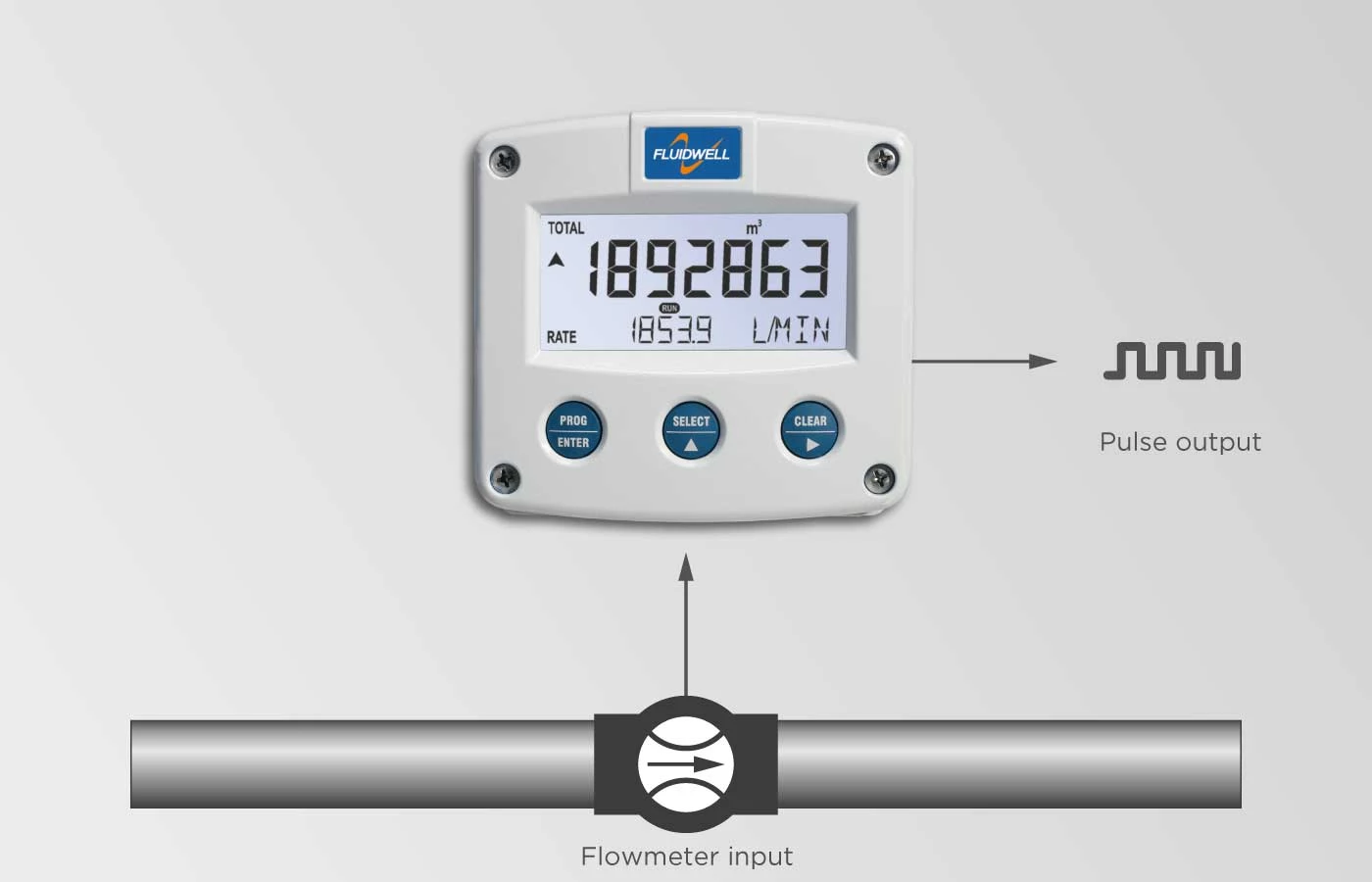

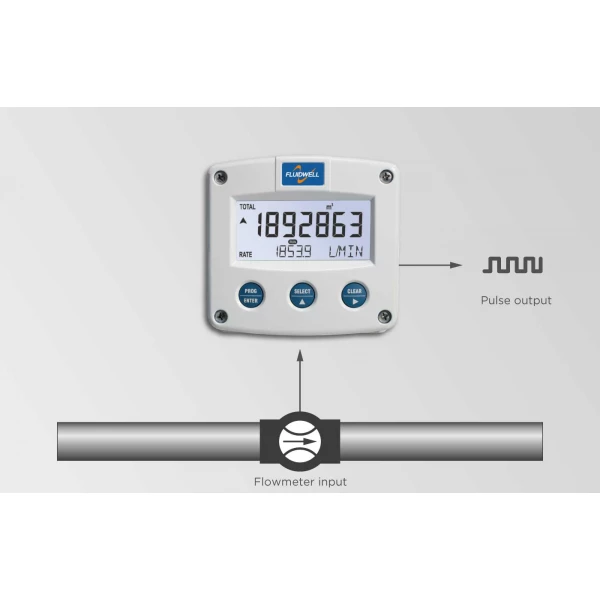

The F014 is a local indicator / transmitter which displays the actual flow rate, total and accumulated total. A scaled pulse, related to the accumulated total is generated for re-transmitting the count on the display. Total can be reset to zero by pressing the CLEAR button twice. The accumulated total can register up to 11 digits and is backed-up in EEPROM memory every minute, just as the running total.
On-screen engineering units are easily configured from a comprehensive selection.

Advantages

Robust aluminum or stainless steel 316L field enclosure (IP66, IP67 / NEMA Type4X) .
It is so rugged, a truck can even stand on it!
Intrinsically Safe available – ATEX, IECEx, FM and CSA approval for gas and dust applications.
Familiar easy operation with the Fluidwell “Know one, know them all” configuration structure, saving time, cost and aggravation.
Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.
