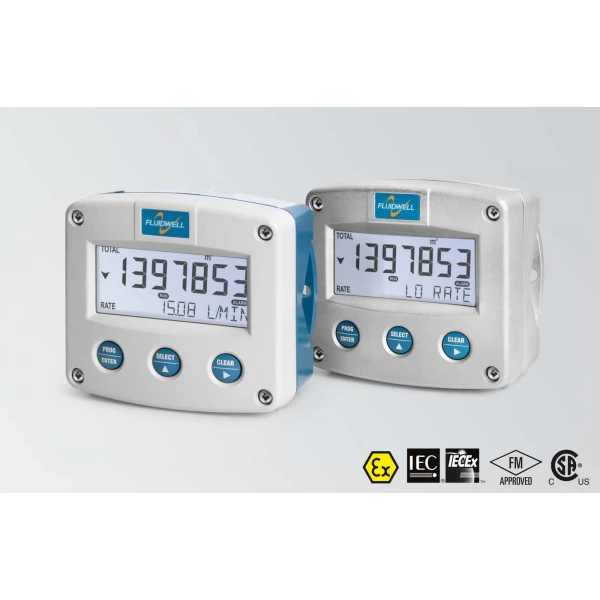

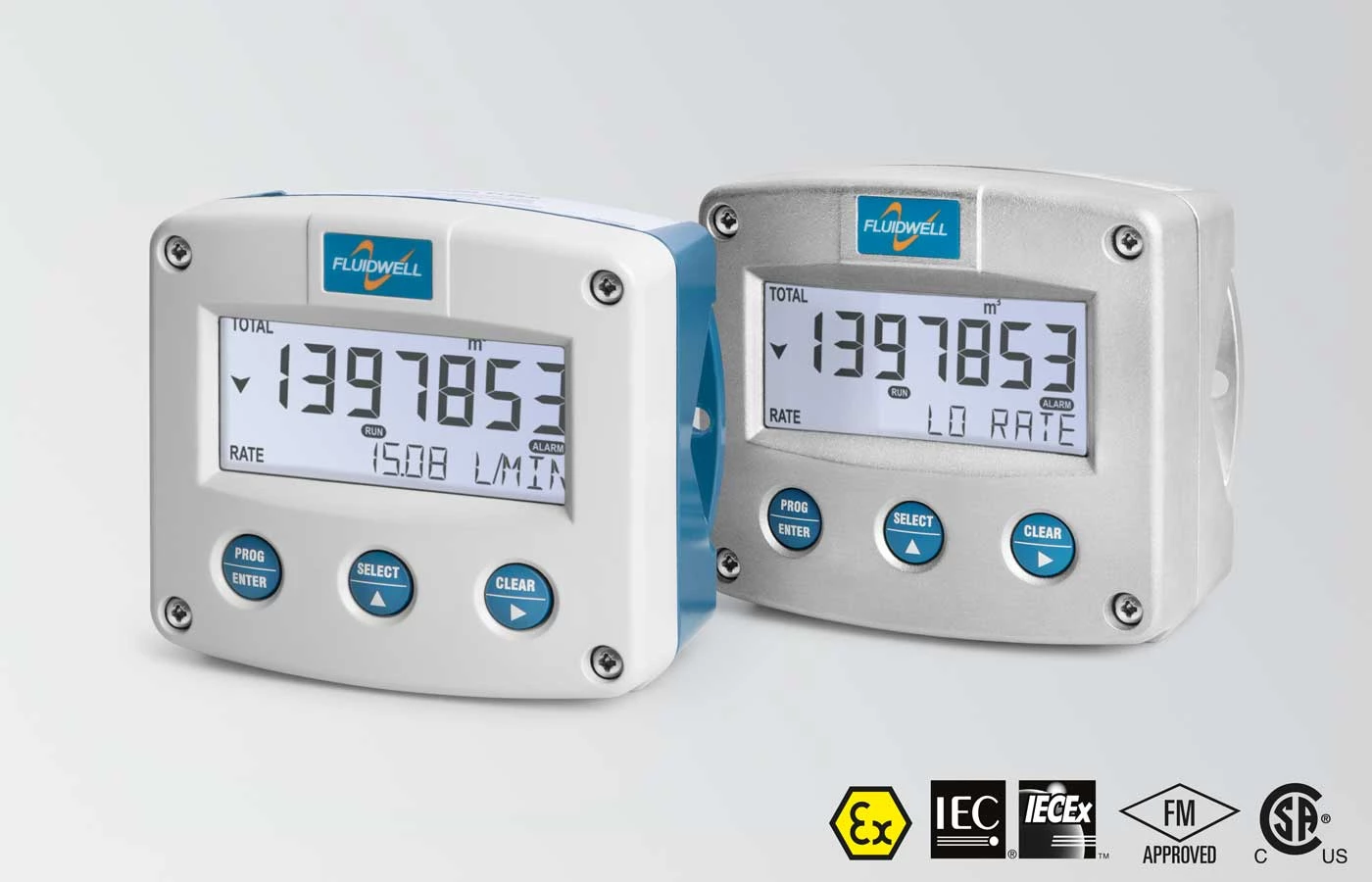

Fluidwell F Series – F013 Intrinsically Safe – Flow rate Monitor / Totalizer

With one high / low alarm output.

Flow rate monitoring: two alarm values can be set: low and high flow rate alarm.
Alarm values can be changed by the operator or they can be password protected.
One alarm output for high, low or both combined flow rate alarms.
Displays total and flow rate simultaneously.
Large digit selection for flow rate or total.
Flow rate: seven 17mm (0.67″) or 8mm (0.31″) digits.
Total – resettable: seven 17mm (0.67″) digits.
Accumulated total – not resettable: eleven 8mm (0.31″) digits.
Separate engineering units for flow rate and total.
Red flashing LED backlight in case of a flow rate alarm; intensity adjustable.
Displays clear alarm messages.
Intrinsically safe according ATEX, IECEx, FM and CSA C-US.
GRP, Aluminum or high grade stainless steel enclosure.
Auto backup of settings and running totals in EEPROM memory.
Easy configuration with clear alphanumerical display.
Ambient temperature: -40°C to +80°C (-40°F to 176°F).

Productinformatie en datasheets →

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Toevoegen aan offerte

Categorieën: Displays, Fluidwell, Fluidwell F-series, Merken, OPBOUW

Beschrijving

The F013 is a versatile flow rate indicator and totalizer with continuous flow rate monitoring feature. It offers the ability to set one low flow rate and one high flow rate alarm value. If desired, an alarm ignore function can be set up to allow for an incorrect flow rate for a certain period of time. The display shows flow rate, total, accumulated total, alarm values and alarm messages. On-screen engineering units are easily configured from a comprehensive selection.

Advantages

Robust aluminum or stainless steel 316L field enclosure (IP66, IP67 / NEMA Type4X) .
It is so rugged, a truck can even stand on it!
Intrinsically Safe available – ATEX, IECEx, FM and CSA approval for gas and dust applications.
Familiar easy operation with the Fluidwell “Know one, know them all” configuration structure, saving time, cost and aggravation.
Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.
