Fluidwell F Series – F010 Intrinsically Safe – Flow rate Indicator

With very large digits.

Displays instantaneous flow rate, measuring and time unit.

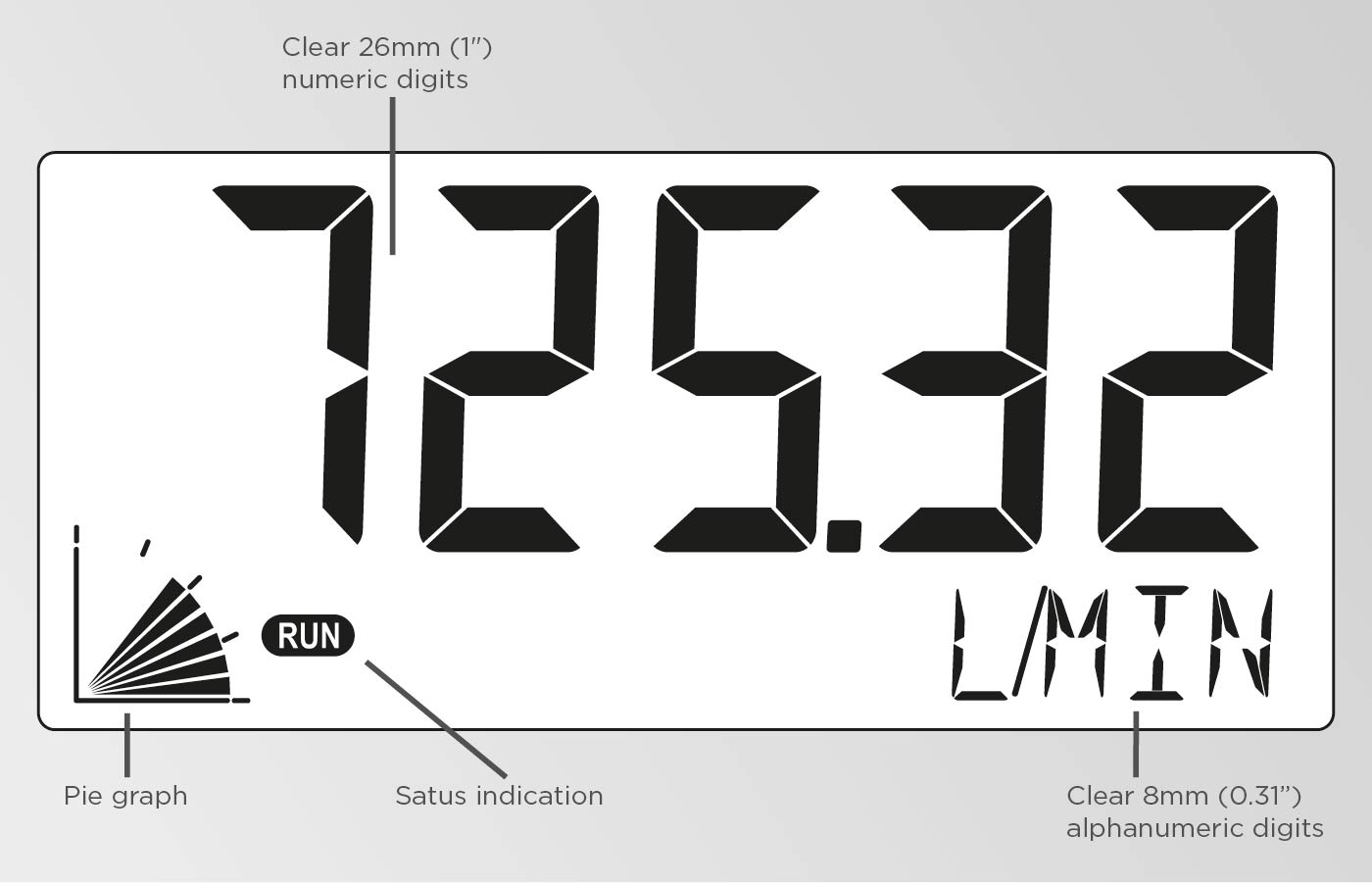

Very large 26mm (1″) high digits for flow rate.
Selectable on-screen engineering units for flow rate: mL, L, m³, mg, g, kg, ton, GAL, bbl, lb, cf, REV, scf, Nm³, NL, P or no unit.
Selectable on-screen time units for flow rate: /sec, /min, /hour or /day.
Number of digits for flow rate: 5½.
Piegraph indication: ten segments.
LED backlight with adjustable intensity.
Intrinsically safe according ATEX, IECEx, FM and CSA C-US.
GRP, Aluminum or high grade stainless steel enclosure.
Auto backup of settings in EEPROM memory.
Easy configuration with clear alphanumerical display.
Ambient temperature: -40°C to +80°C (-40°F to 176°F).

Productinformatie en datasheets →

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Toevoegen aan offerte

Categorieën: Displays, Fluidwell, Fluidwell F-series, Merken, OPBOUW

Beschrijving

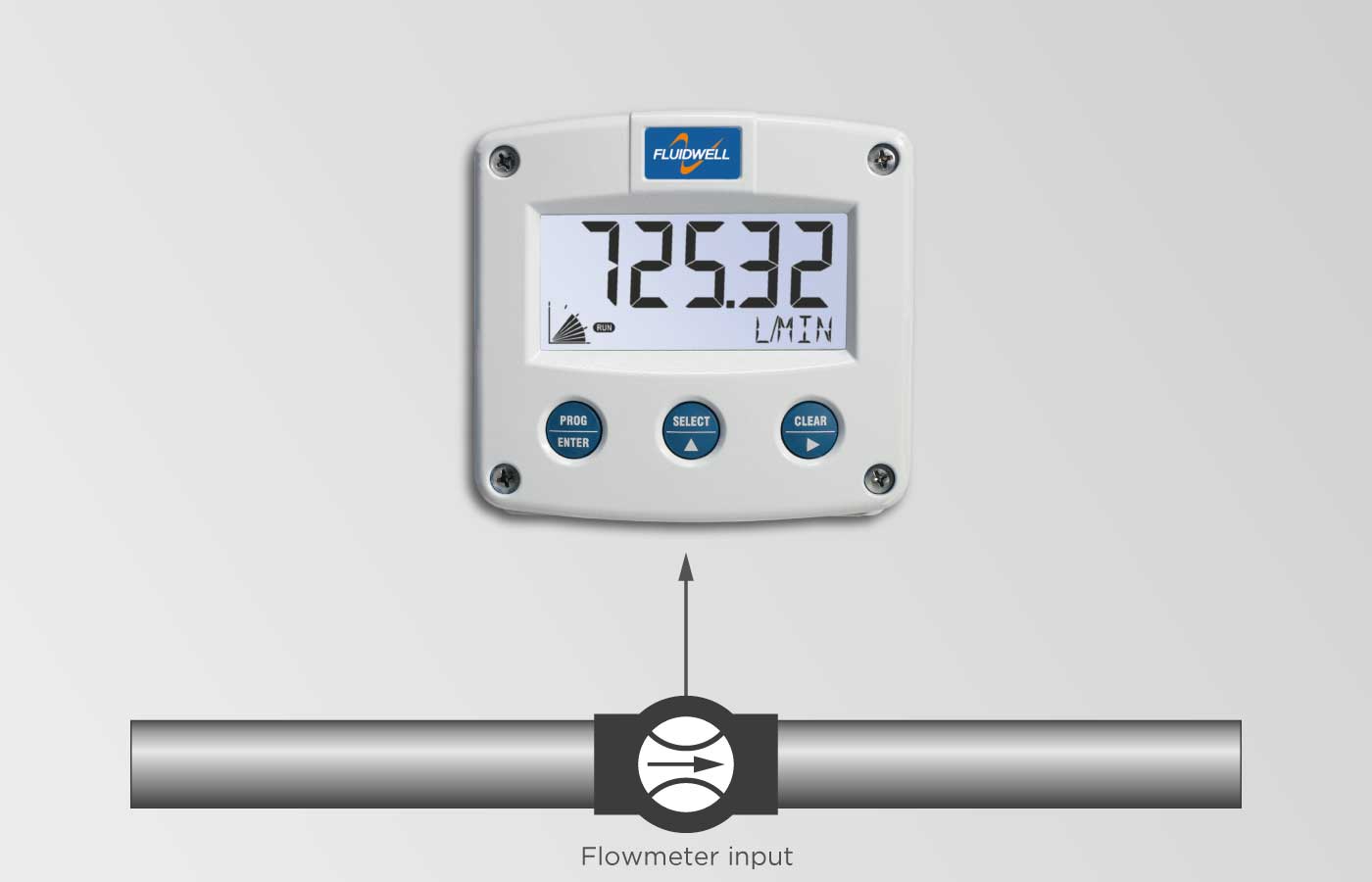

The F010 is a local indicator with large 26mm (1″) high digits which displays the actual flow rate. The measuring and time unit to be displayed below the flow rate are simply selected through an alphanumeric configuration menu. No adhesive labels have to be put on the outside of the enclosure: a weather proof and user-friendly solution! The configuration of K-factors or Span and number of decimals is done through software functions, without any sensitive DIP-switches or trimmers.

Advantages

Robust aluminum or stainless steel 316L field enclosure (IP66, IP67 / NEMA Type4X) .
It is so rugged, a truck can even stand on it!
Intrinsically Safe available – ATEX, IECEx, FM and CSA approval for gas and dust applications.
Familiar easy operation with the Fluidwell “Know one, know them all” configuration structure, saving time, cost and aggravation.
Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.
