500LPM – HIGH FLOW PUMPS · IP-55

€13.777,57 (€16.670,86 incl. BTW)

96.42% heeft een goede tot zeer goede ervaring met SENSORS.NL
Persoonlijke klantenservice
Ruim assortiment met een breed scala aan topmerken
Voor aantallen een extra korting nodig? Neem dan contact met ons op

Toevoegen aan offerte

Artikelnummer: 10111 Categorieën: Flow Pumps, Gespasa Tag: Flow Pumps

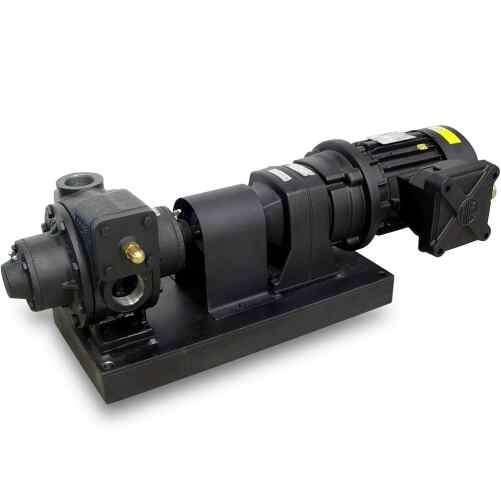

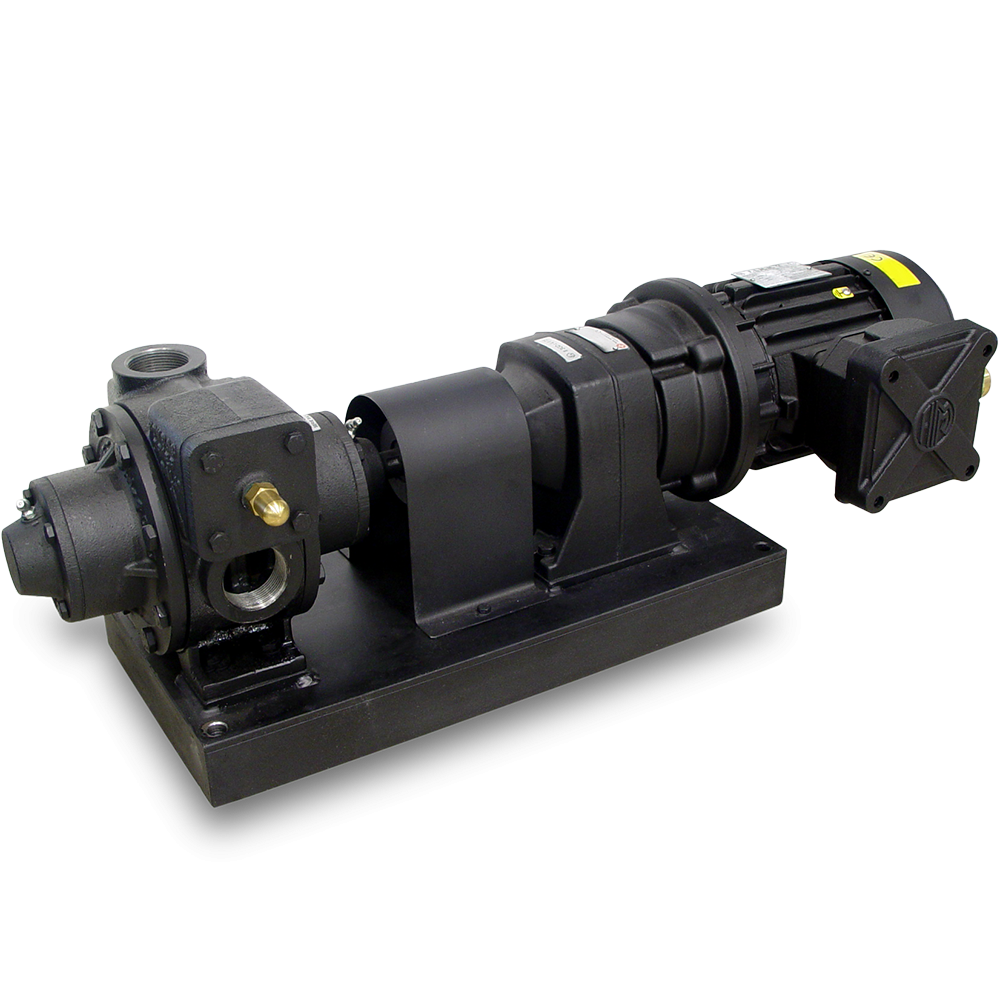

Bedplate vane pumps of high flow, self-suction, positive displacement, constant flow, inaudible and heavy-duty
The transfer is quick, uniform and inaudible.
The pump has built-in bypass valve.
It is specially intended for the transfer of high volumes, S-1 service, continuous for fuel tank charging and discharging, storage of fuel, hydrocarbon, diesel and another non-corrosive fluid and without solid particles in suspension.

BDP-500 · F2 1/2″ · IP-55

TECHNICAL DATA

PUMP

Flow: 500 l/min
Operation pressure: 3.5 bar
640 rpm
Connection through weldable flange of 2 1/2″
Recommended diameters:
- suction-delivery connection: Ø3″
Moto-pump group performance: horizontal
Bypass built-in

MOTOR

Voltage: 230/400 VAC triphasic
Frequency: 50 Hz
Powe: 4 kW
IP-55 protection
Condensable protection: encapsulated
Turn speed: 1,500 rpm
Insulation: F Class
Reducer/motor coupling: flange
Noise level: 80 dB(A)

Size and weight (approx.):

Size: 1,050x365x345 mm (length x width x height)
Weight: 148.5 kg

Beoordeel dit product

Product type:	Diesel Transfer Pump
Vendor:	Gespasa Shop – International Fuel Equipment and Services
Product sku:	10111
Weight:	148.5 kg
