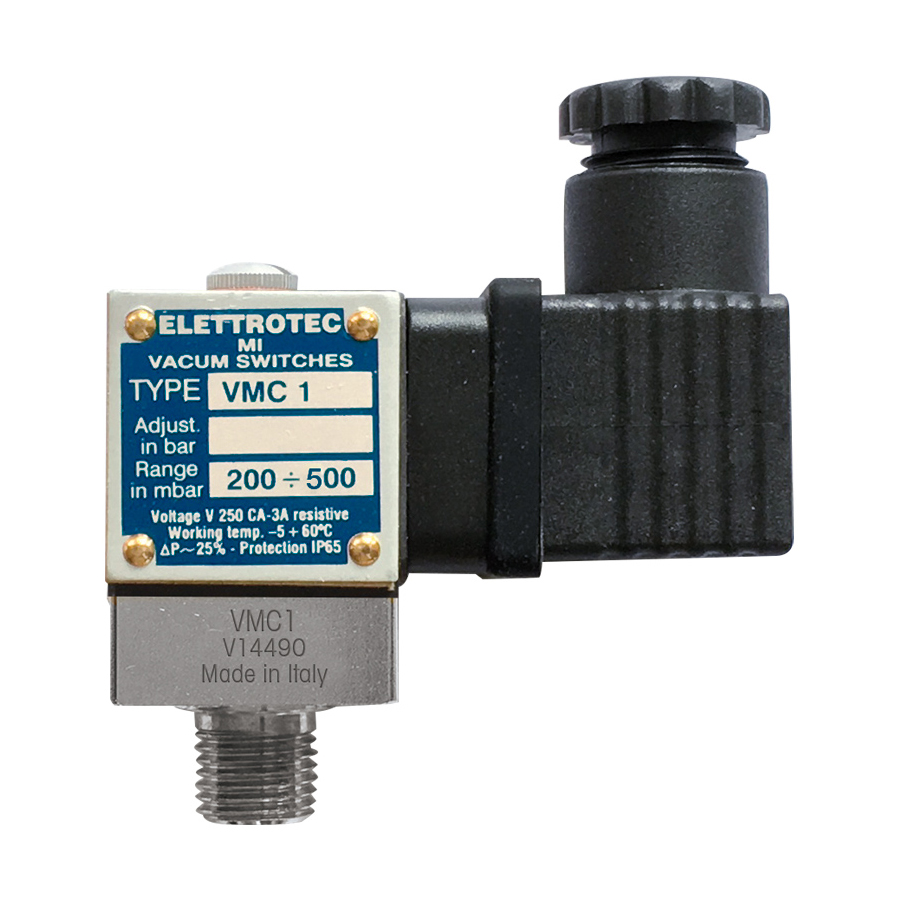

VMC – Adjustable vacuum switches with SPDT contacts

Waarom kopen bij Sensors.nl:

SKU: Item-elettrotec-31 Κατηγορία: Elettrotec Ετικέτες: Elettrotec, Πίεση, Vacuum switches

Βαθμολογία διακόπτη	250 Vac, 24 Vdc; 30 V with “G” option / 3 (2) A
Connector	DIN 43650 form A PG09 or PG11
Adjustment range	-200 -500 mbar / -500 -900 mbar
Max. static pressure	20 bar
Υστέρηση	30% of set-point
Temperature tange	-30 °C +140 °C (according to diaphragm/seal material)
Επικοινωνία	SPDT
Υλικό σώματος	Anodized aluminium- AVP steel
Diaphragm/ Seal material	NBR – FKM – Silicone – HNBR – Neoprene – EPDM
Threads	G1/4
Προστασία	IP65 – DIN 40050
Mechanical life	10⁶ operations
Διαστάσεις	Body 30 x 30 – Max. high 78 mm
Certification	CE – RINA – Lloyd’s Register
Επιλογές	Set-point rising and falling – Gold-plated contacts for low current – Degreased for oxygen
