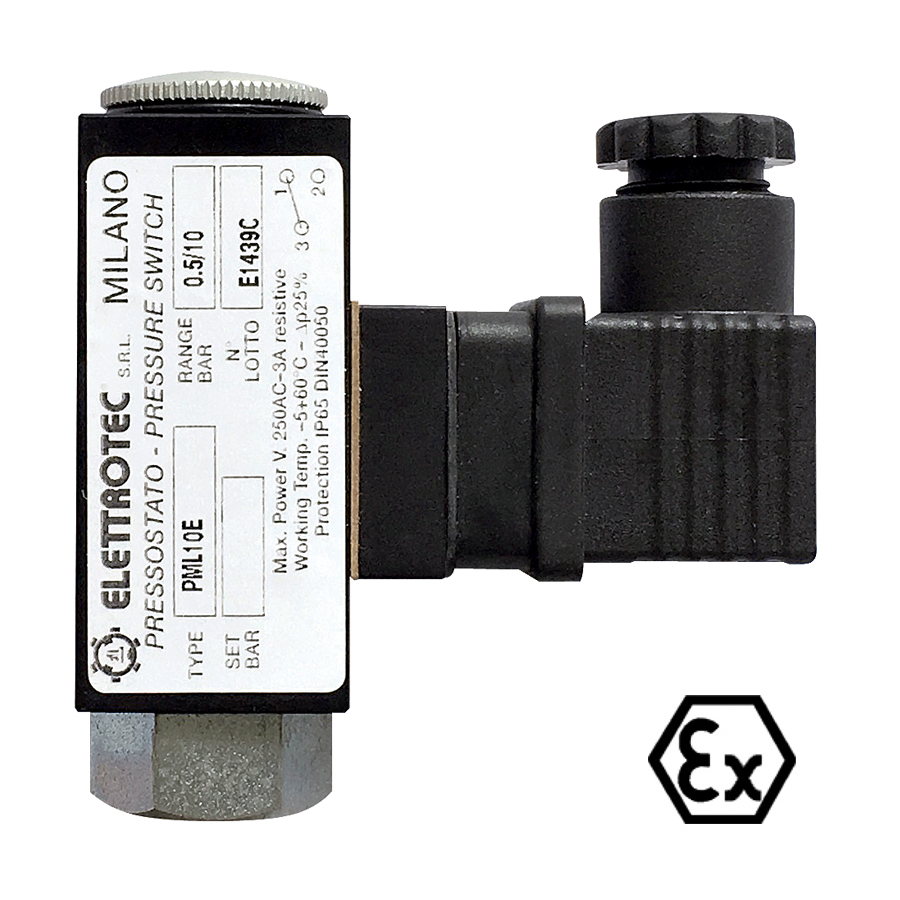

PML-PPL – Diaphragm / Piston adjustable pressure switches intrinsic safety execution

Waarom kopen bij Sensors.nl:

SKU: Item-elettrotec-30 Κατηγορία: Elettrotec Ετικέτες: ATEX Mechanical Pressure Switches, Elettrotec, Πίεση

Parameters	Intrinsic safety
Connector	DIN 43650 form A PG09 or PG11
Input voltage	Vi 30 V
Input current	Li 100mA
Max. input power	Pi 0,75 W
Input capacity	Ci ~ = 0
Input inductance	Li ~ = 0
Adjustment range	0.5 – 10 bar – 10 – 100 bar – 30 – 150 bar – 150 – 350 bar
Max. static pressure	600 bar
Υστέρηση	30% of set-point
Εύρος θερμοκρασίας	-30 °C +140 °C (according to diaphragm/seal material)
Επικοινωνία	SPDT
Υλικό σώματος	Anodized aluminium- AVP steel
Diaphragm / Seal material	NBR – HNBR – Silicone
Threads	G1/4 female
Προστασία	IP65 – DIN 40050
Mechanical life	10⁶ operations
Διαστάσεις	Body 30 x 30 – Max. high 95
Πιστοποιητικό	ATEX – II 1 G EEX ia IIC T6
Επιλογές	Set-point rising and falling – Gold-plated contacts for low current
