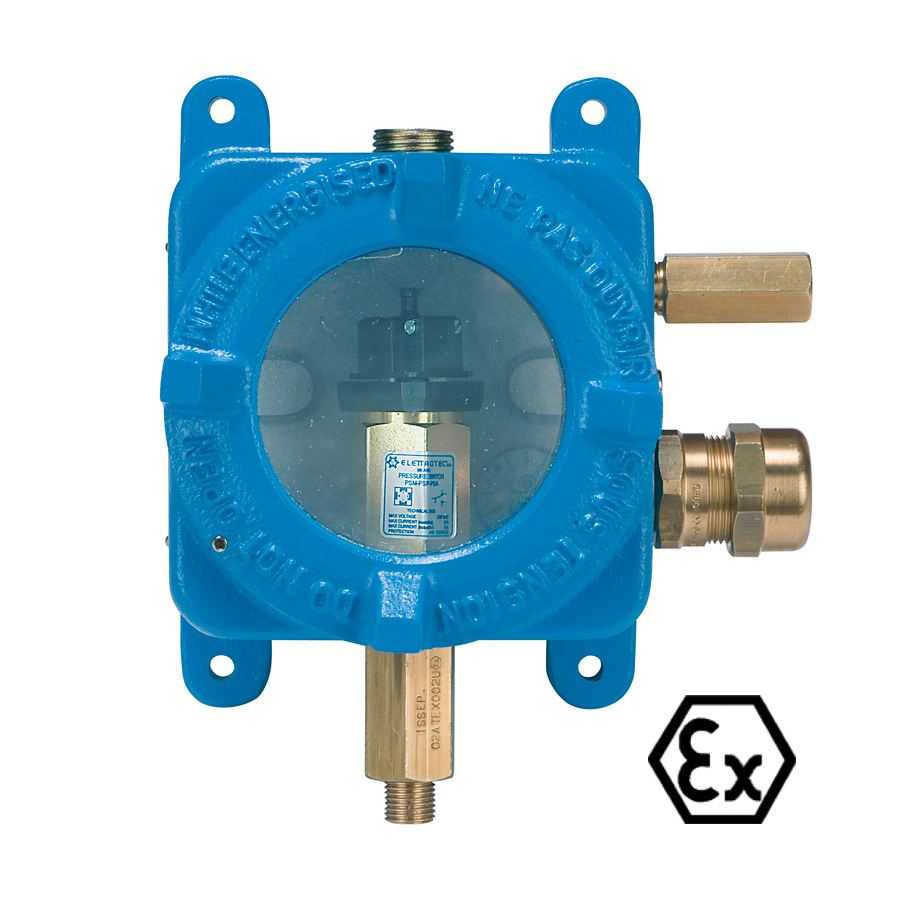

PSM…EP – Assembly ATEX approved

Waarom kopen bij Sensors.nl:

SKU: Item-elettrotec-26 Κατηγορία: Elettrotec Ετικέτες: ATEX Mechanical Pressure Switches, Elettrotec, Πίεση

Adjustment range	0.2 – 2 bar – 1 – 10 bar – 10 – 40 bar
Max. static pressure	40 bar
Υστέρηση	From 10% to 30% of set-point value
Εύρος θερμοκρασίας	-30 °C to +140 °C (according to diaphragm material)
Επικοινωνία	SPDT
Υλικό σώματος	Brass – AVP steel – Stainless steel AISI 316
Diaphragm / Seal material	NBR – FKM – Silicone – HNBR – Neoprene – EPDM – Stainless steel
Threads	G1/4”
Προστασία	IP65
Mechanical life	10⁶ operations
Διαστάσεις	Body 120 x 120 mm
Πιστοποιητικό	ATEX – II 2 G Ex db IIC T6 or T5 or T4 Gb II 2 D Ex tb IIIC T85°C or 100°C or 135°C Db IP66
Επιλογές	Set-point rising and falling – Gold-plated contacts for low current – Degreased for oxygen – Tested for applications with gas
